Hydraulic Brake Booster Accumulator: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

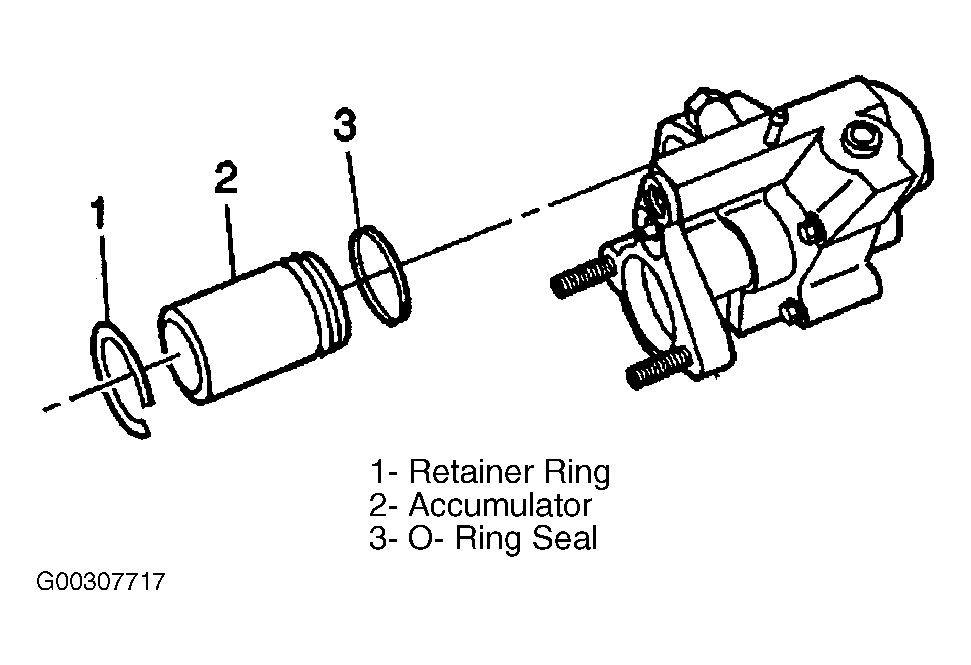

- Lubricate all seals and metal friction points with power steering fluid GM P/N 1052884 (Canadian P/N 993294) or equivalent. Install the accumulator and O-ring seal. Figure
- Place the Accumulator Piston Compressor over the end of the accumulator. Install the nut on the stud. Depress the accumulator with a C-clamp.

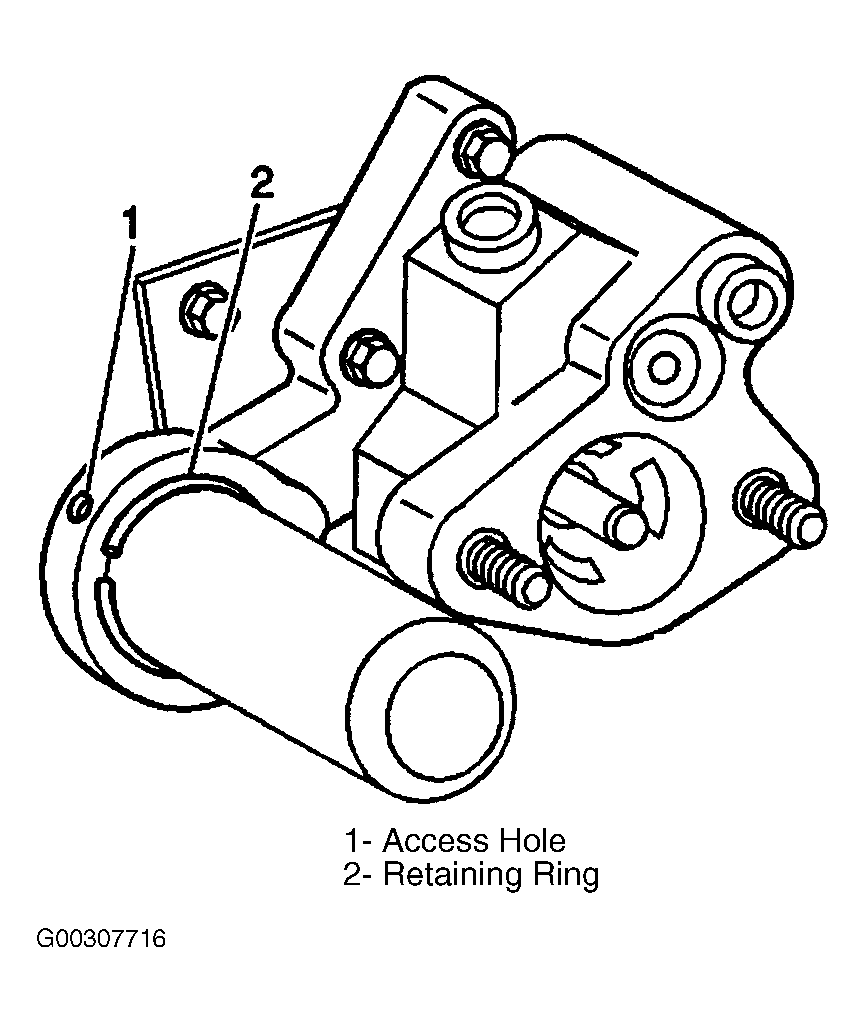

- Install the accumulator retainer ring. See Figure . Release the C-clamp. Remove the nut from the stud. Remove the Accumulator Piston Compressor.
- Install the master cylinder to the hydraulic booster. Tighten to specifications. See TORQUE SPECIFICATIONS .
