Brake Pedal Assembly: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

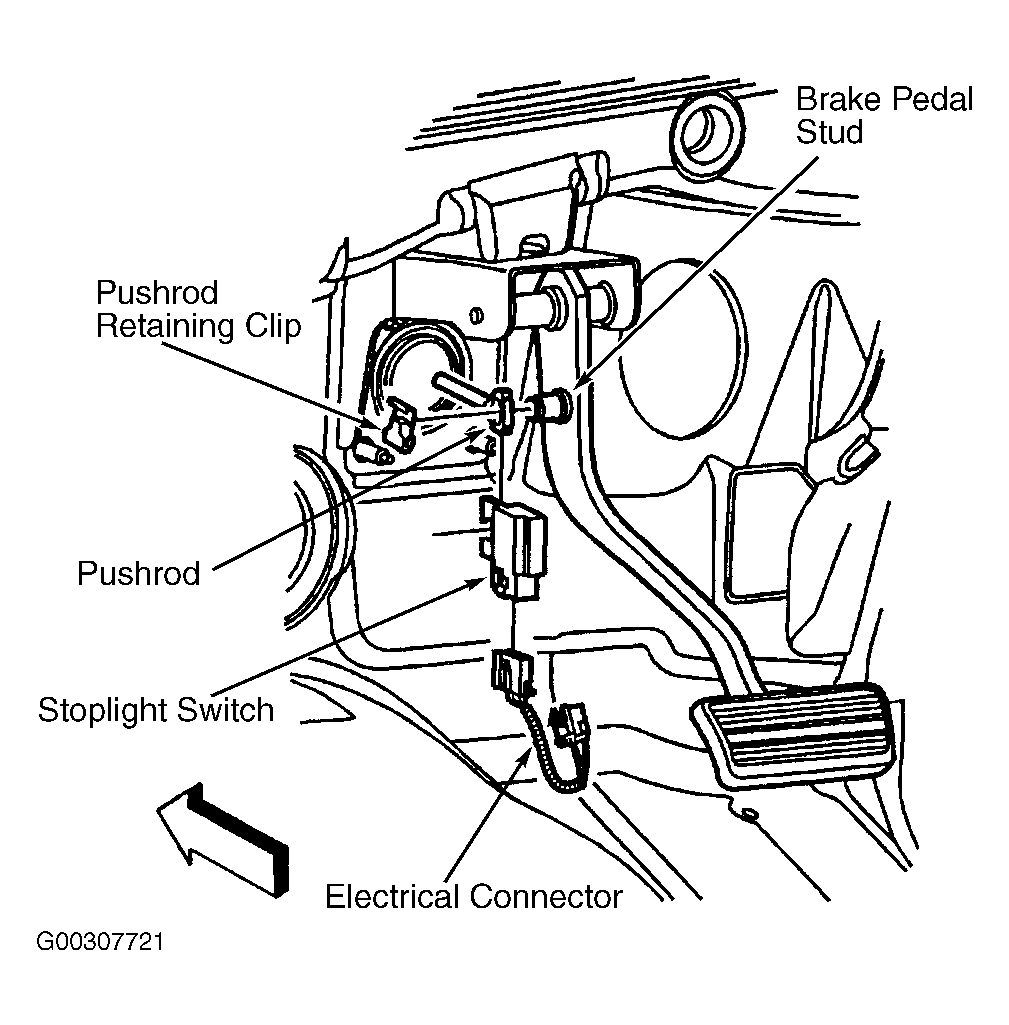

- Disconnect the electrical connector. See Fig 1 . Remove the pushrod retaining clip. Remove the stoplight switch and the pushrod from the brake pedal stud. See Fig 1 .
- Remove the 4 nuts from the brake pedal bracket. Remove the bolt holding the brake pedal assembly to the cowl. Remove the brake pedal.
