Rear Brake Caliper: Assembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

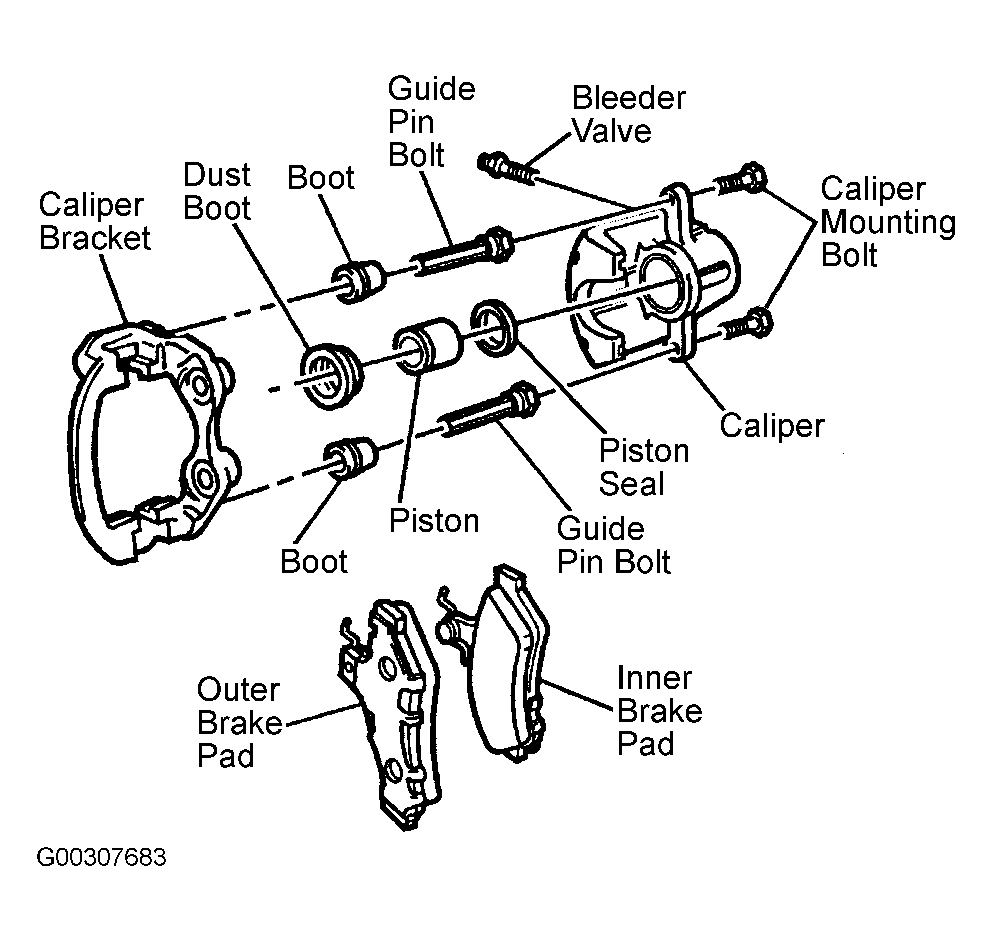

  1. Install the brake caliper bleed screw and tighten to specifications. See TORQUE SPECIFICATIONS  . See Figure .
  2. Install the brake caliper bleed screw cap. Lubricate the new piston seal and the brake caliper bore seal groove with brake fluid. Install the new seal into the brake caliper bore seal groove. See Figure .
  3. Ensure that the seal is not twisted. Lubricate the brake caliper bore and the piston with brake fluid. Install the boot and piston.
    • Install the boot over the end of the piston so that the fold will face toward the brake caliper housing piston bore opening.
    • Seat the boot into the brake caliper bore groove. Slide the piston into the brake caliper bore.
    • Push down the piston to the bottom of the brake caliper bore.
    • Ensure that the boot is properly seats into the piston groove and into the groove in the brake caliper bore.
  4. Install the brake caliper to the vehicle. See BRAKE CALIPERS  under REMOVAL & INSTALLATION.

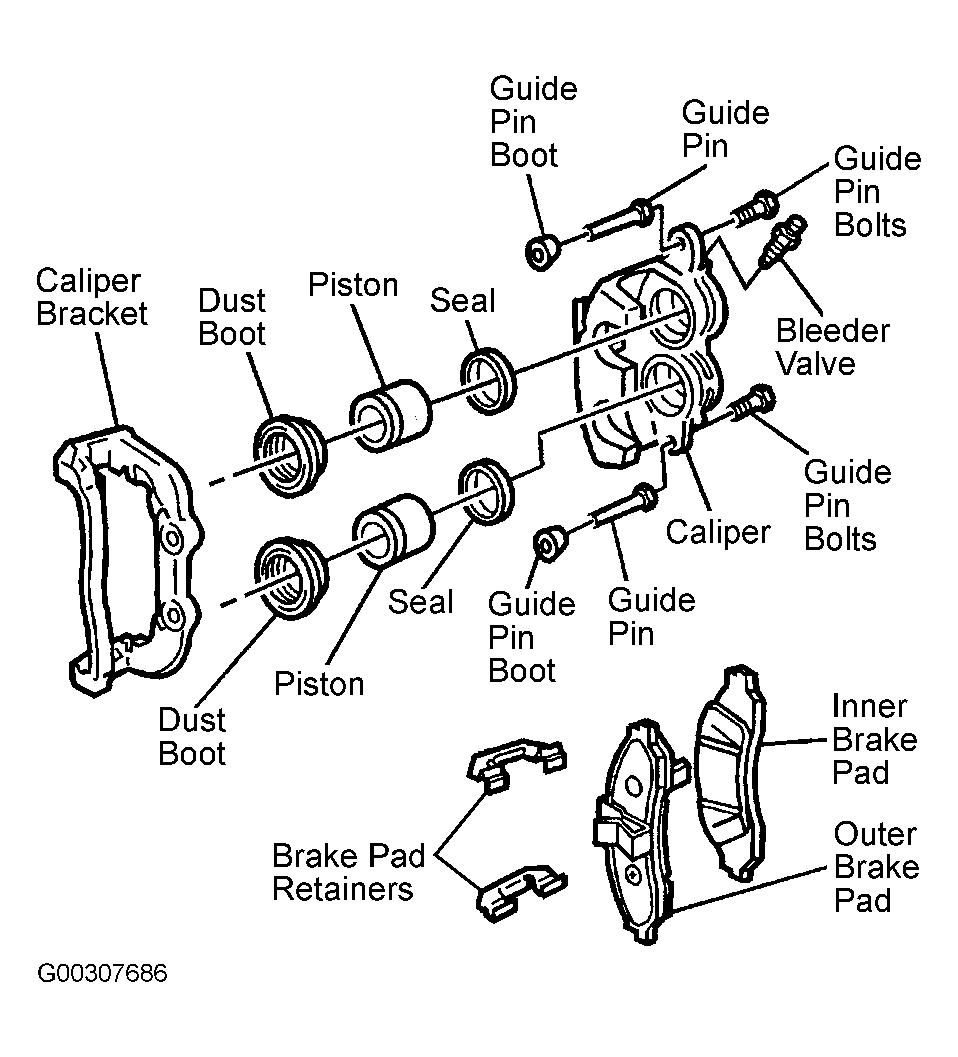

  1. Install the brake caliper bleed screw and tighten to specifications. See TORQUE SPECIFICATIONS  . See Figure .
  2. Install the brake caliper bleed screw cap. Lubricate the new piston seal and the brake caliper bore seal groove with brake fluid. Install new the seal into the brake caliper bore seal groove.
  3. Ensure that the seal is not twisted. Lubricate the brake caliper bore and the piston with brake fluid. Install the boot and the piston.
    1. Install the boot over the end of the piston so that the fold will face toward the brake caliper housing piston bore opening.
    2. Seat the boot into the brake caliper bore groove. Slide the piston into the brake caliper bore.
    3. Push down the piston to the bottom of the brake caliper bore.
    4. Ensure that the boot properly seats into the piston groove and into the groove in the brake caliper bore.
    5. Repeat step  3 for the remaining piston.
  4. Install the brake caliper to the vehicle. See BRAKE CALIPERS  under REMOVAL & INSTALLATION.
