X329 Body Harness to Floor Console Harness (UQA or UQS)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

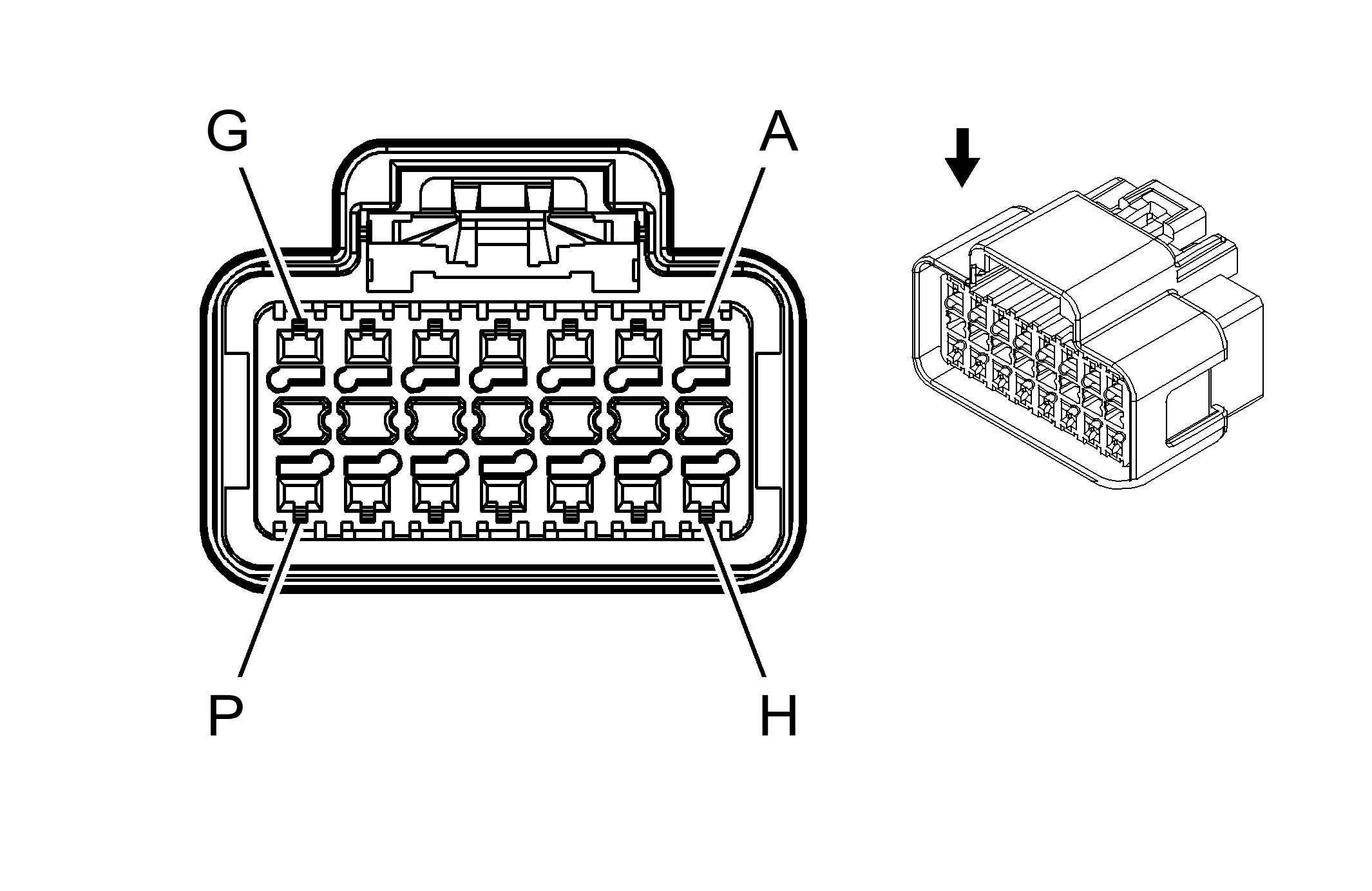

GM2527907
GM1707521
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13665400
  • Service Connector: 13577618
  • Description: 14-Way F GT 150 Series (BK)
 Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 15332174
  • Service Connector: 88986449
  • Description: 14-Way M GT Mixed Series Sealed (BK)
Terminal Part Information
  • Pins: A-E, H-M (HP2)
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: Pins A-D, H-L - C/A
  • Core/Insulation Crimp: Pins E, M - E/C
  • Pins: A-P (except HP2)
  • Terminated Lead: 13575492
  • Release Tool: J-38125-29
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 13673608/Not Available
  • Core/Insulation Crimp: Not Available
 Terminal Part Information
  • Terminated Lead: 13575502
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins A-D, H-L - 2/4
  • Core/Insulation Crimp: Pins E-G - E/C
  • Core/Insulation Crimp: Pins M-P - E/4
X329 Body Harness to Floor Console Harness (UQA or UQS)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.8 BN 199 Left Rear Speaker Output (+) A 0.8 BN 199 Left Rear Speaker Output (+)
B 0.8 TN 1859 Left Rear Midrange Speaker Output (+) B 0.8 TN 1859 Left Rear Midrange Speaker Output (+)
C 0.8 D-BU 46 Right Rear Speaker Output (+) C 0.8 D-BU 46 Right Rear Speaker Output (+)
D 0.8 TN/WH 1855 Right Rear Midrange Speaker Output (+) D 0.8 TN/WH 1855 Right Rear Midrange Speaker Output (+)
E 0.5 L-GN 3005 Noise Reduction Microphone (+) (E52 with Y91) E 0.35 L-GN 3005 Noise Reduction Microphone (+) (E52 with Y91)
F 0.5 L-BU 3006 Noise Reduction Microphone (+) (E52 with Y91) F 0.35 L-BU 3006 Noise Reduction Microphone (+) (E52 with Y91)
G 0.35 PK 3007 Noise Reduction Microphone (+) (E52 with Y91) G 0.35 PK 3007 Noise Reduction Microphone (+) (E52 with Y91)
H 0.8 YE 116 Left Rear Speaker Output (-) H 0.8 YE 116 Left Rear Speaker Output (-)
J 0.8 WH 1959 Left Rear Midrange Speaker Output (-) J 0.8 WH 1959 Left Rear Midrange Speaker Output (-)
K 0.8 L-BU 115 Right Rear Speaker Output (-) K 0.8 L-BU 115 Right Rear Speaker Output (-)
L 0.8 OG 1955 Right Rear Midrange Speaker Output (-) L 0.8 OG 1955 Right Rear Midrange Speaker Output (-)
M 0.5 L-GN/BK 3008 Noise Reduction Microphone (-) (E52 with Y91) M 0.5 L-GN/BK 3008 Noise Reduction Microphone (-) (E52 with Y91)
N 0.5 L-BU/BK 3009 Noise Reduction Microphone (-) (E52 with Y91) N 0.5 L-BU/BK 3009 Noise Reduction Microphone (-) (E52 with Y91)
P 0.35 PK/BK 3010 Noise Reduction Microphone (-) (E52 with Y91) P 0.5 PK/BK 3010 Noise Reduction Microphone (-) (E52 with Y91)
