Park Pawl Installation
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

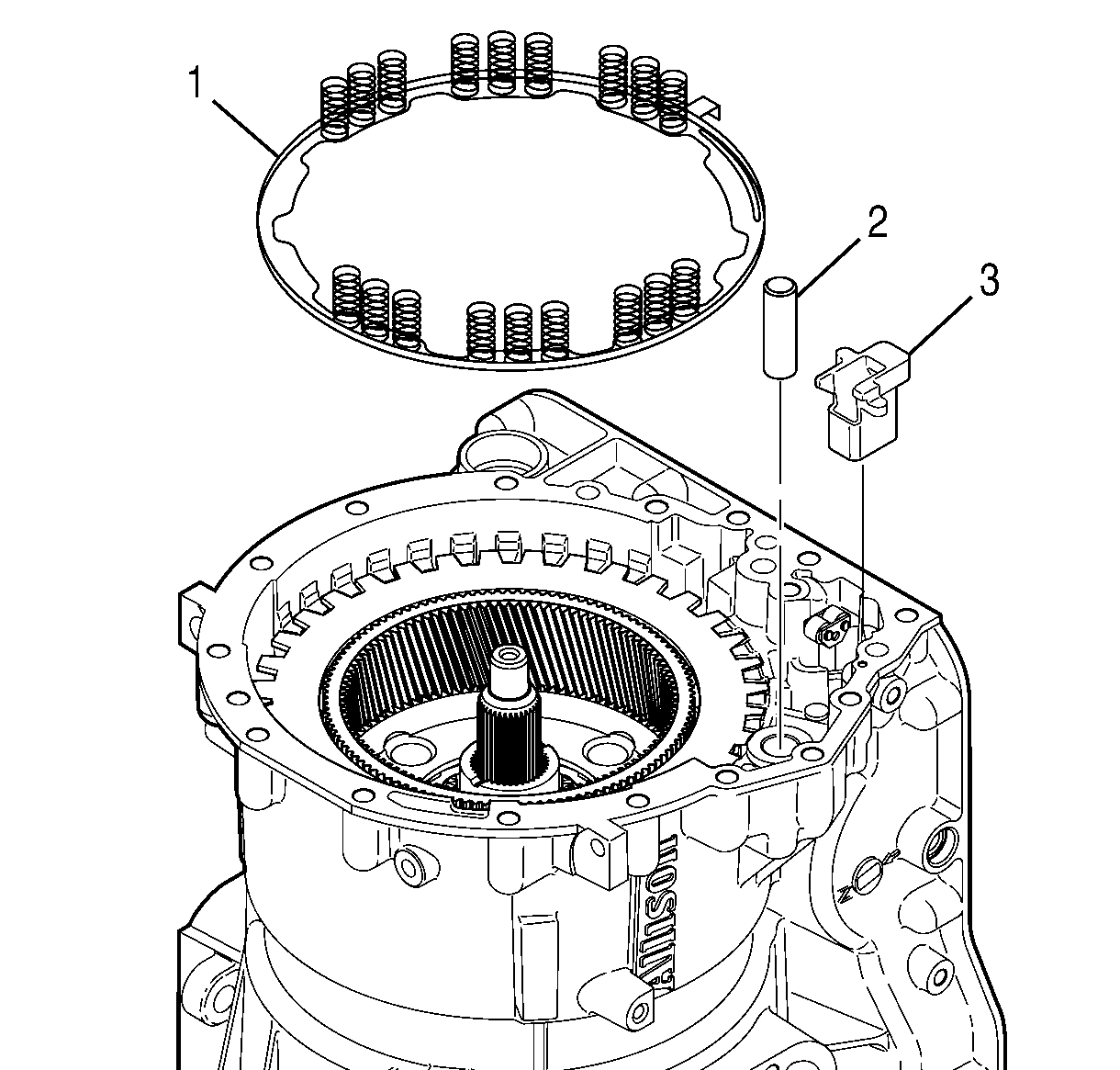

- Align the tang in the low and reverse clutch return spring assembly (1) with the notch in the transmission case.
- Install the low and reverse clutch piston return spring assembly (1).
- Install the park pawl cam guide (3).
- Install the park pawl support pin (2) into the transmission case.

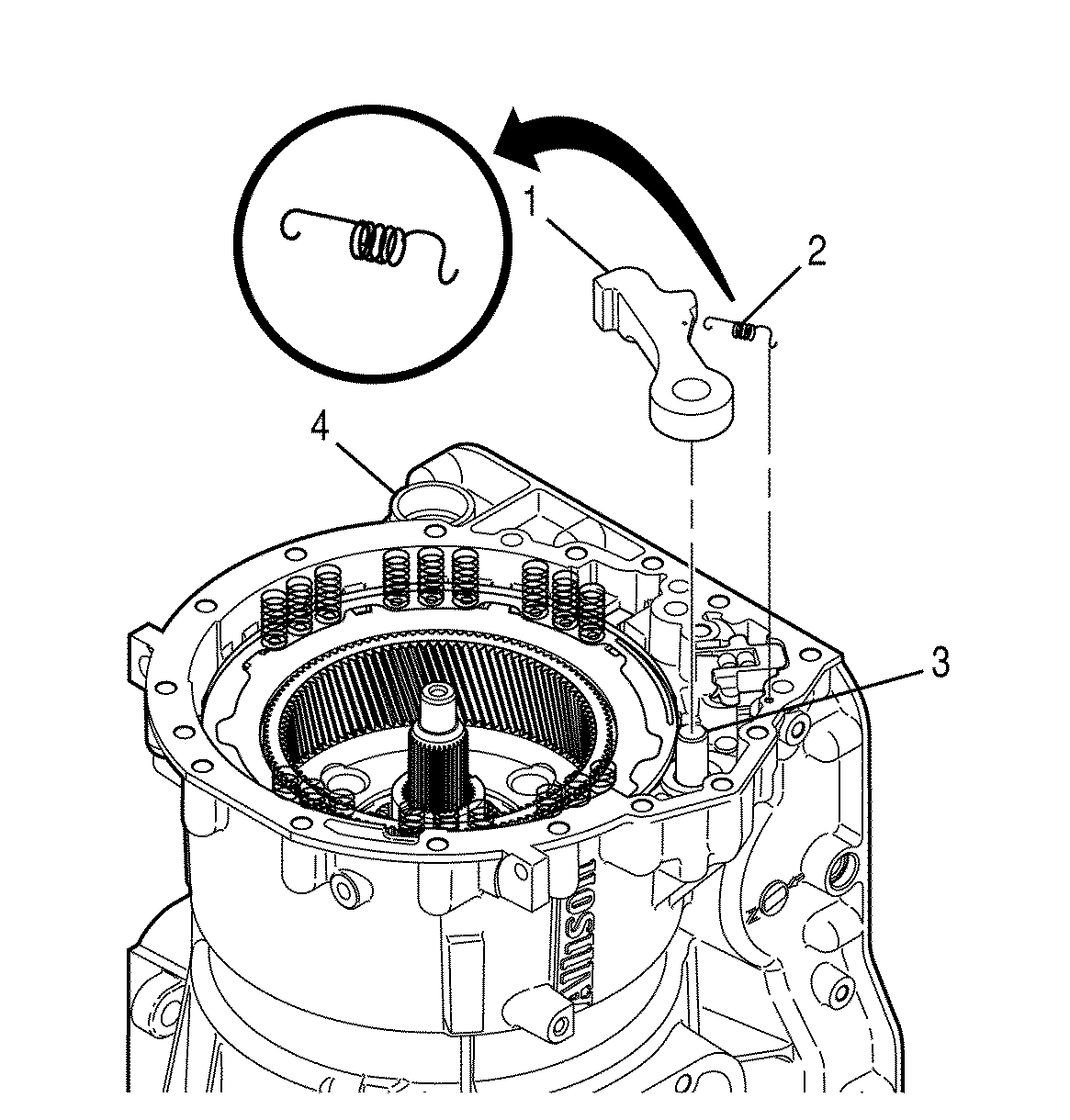

- Install the park pawl return spring (2) onto the park pawl (1).
- Align the park pawl and the park pawl return spring toward the rear, with the park pawl support pin (3).
- Install the park pawl (1) onto the park pawl support pin (3).
- Connect the park pawl return spring (2) to the transmission case.
