Low and Reverse Clutch Installation
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

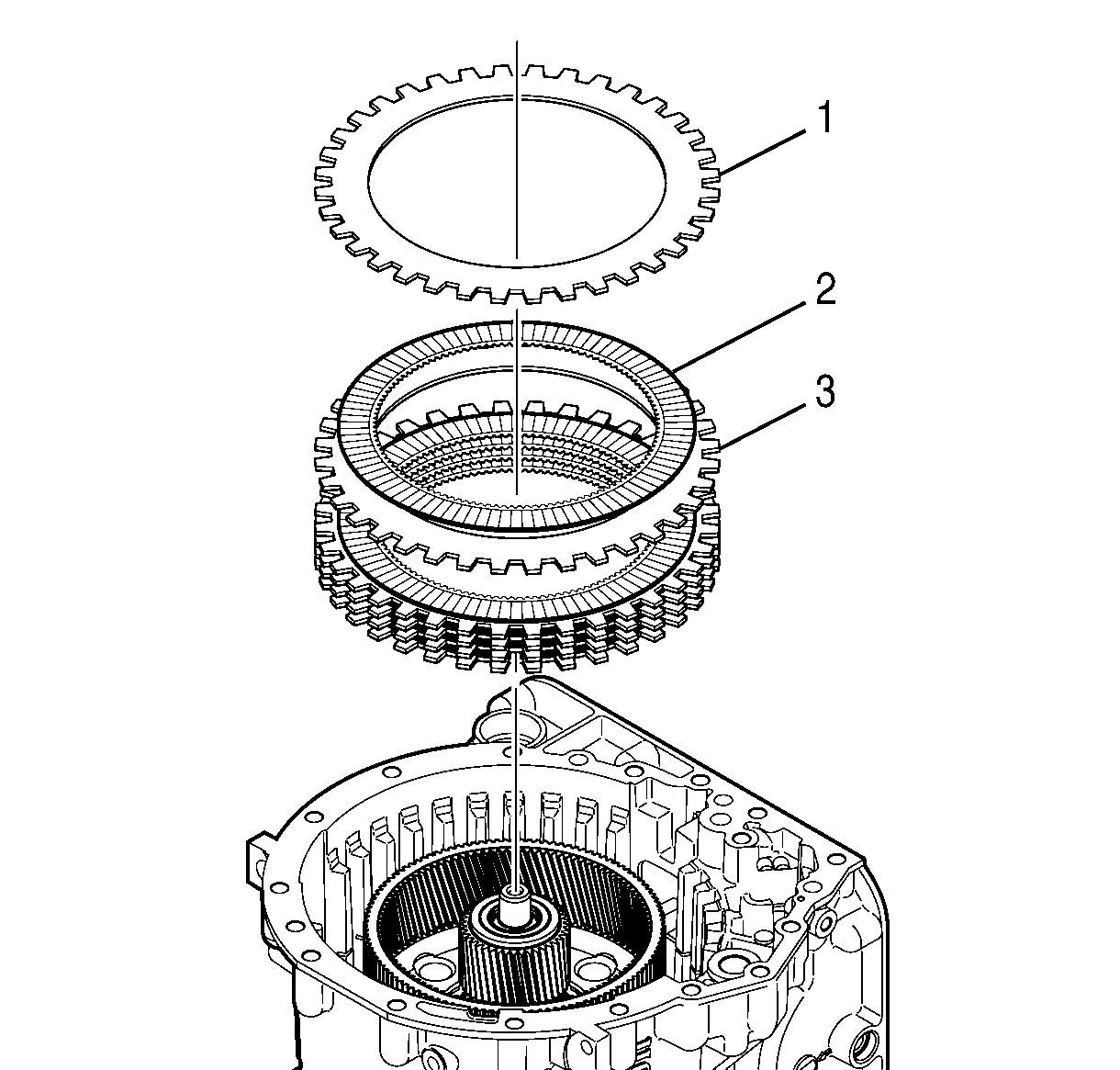

- Starting with a low and reverse clutch fiber plate, alternately install 6 low and reverse clutch fiber plates (2) and 5 low and reverse clutch steel plates (3).
- Install the correct selective low and reverse clutch steel plate (1).
