Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

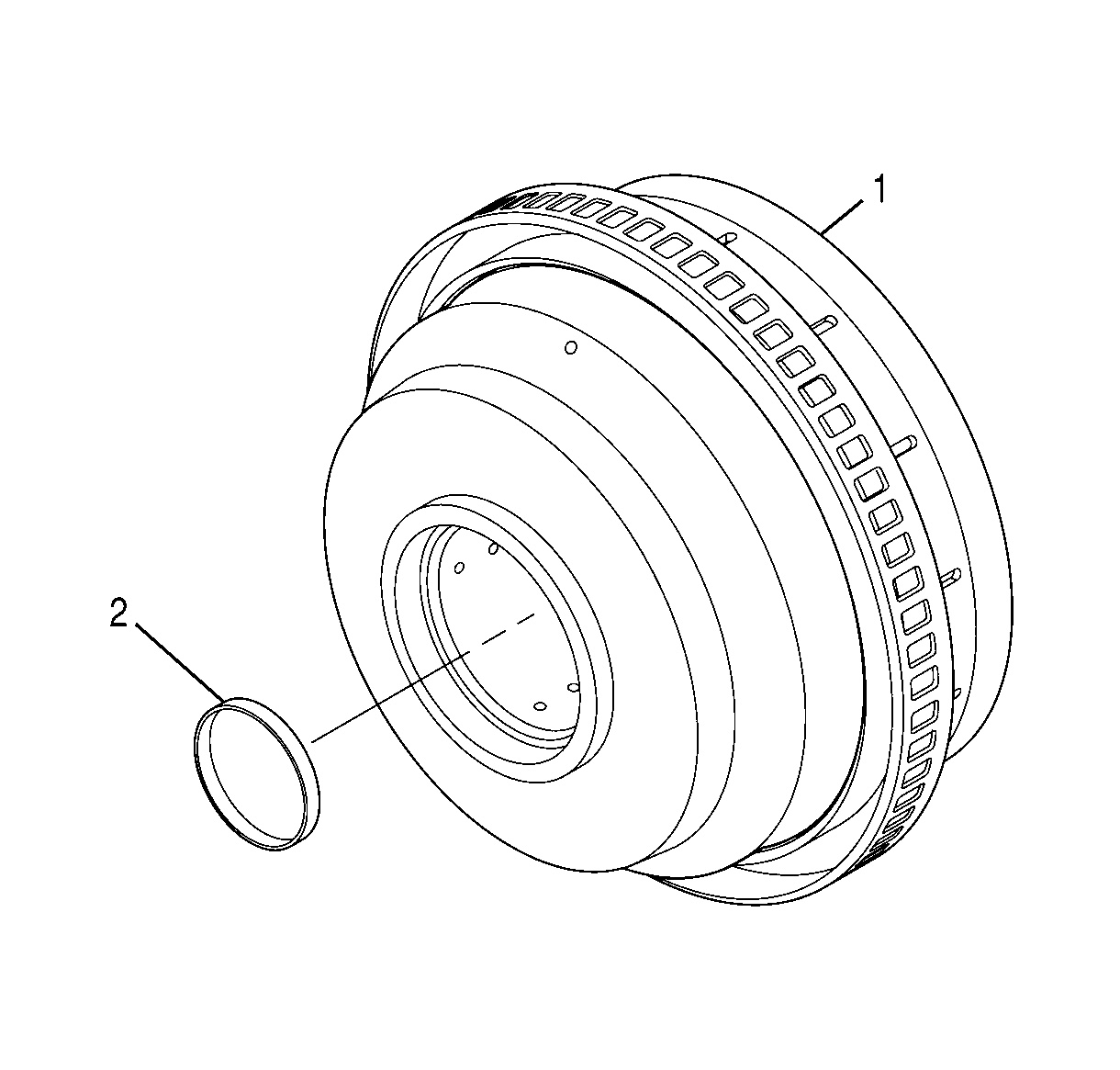

    Fig 1: View Of 1-2-3-4, 4-5 Clutch Housing Bushing
    GM1217085Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT score the 1-2-3-4, 4-5-6 clutch housing bore when removing the clutch housing bushing.
  1. Gently tap the bushing through the inside of the 1-2-3-4, 4-5-6 clutch housing until the bushing becomes dislodged.
  2. Remove the bushing (2) from the 1-2-3-4, 4-5-6 clutch housing (1).
  3. Remove any nicks or burrs with a crocus cloth.
