Right Rear of the Engine Compartment Components (4.8L/5.3L/6.0L/6.2L except HP2)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

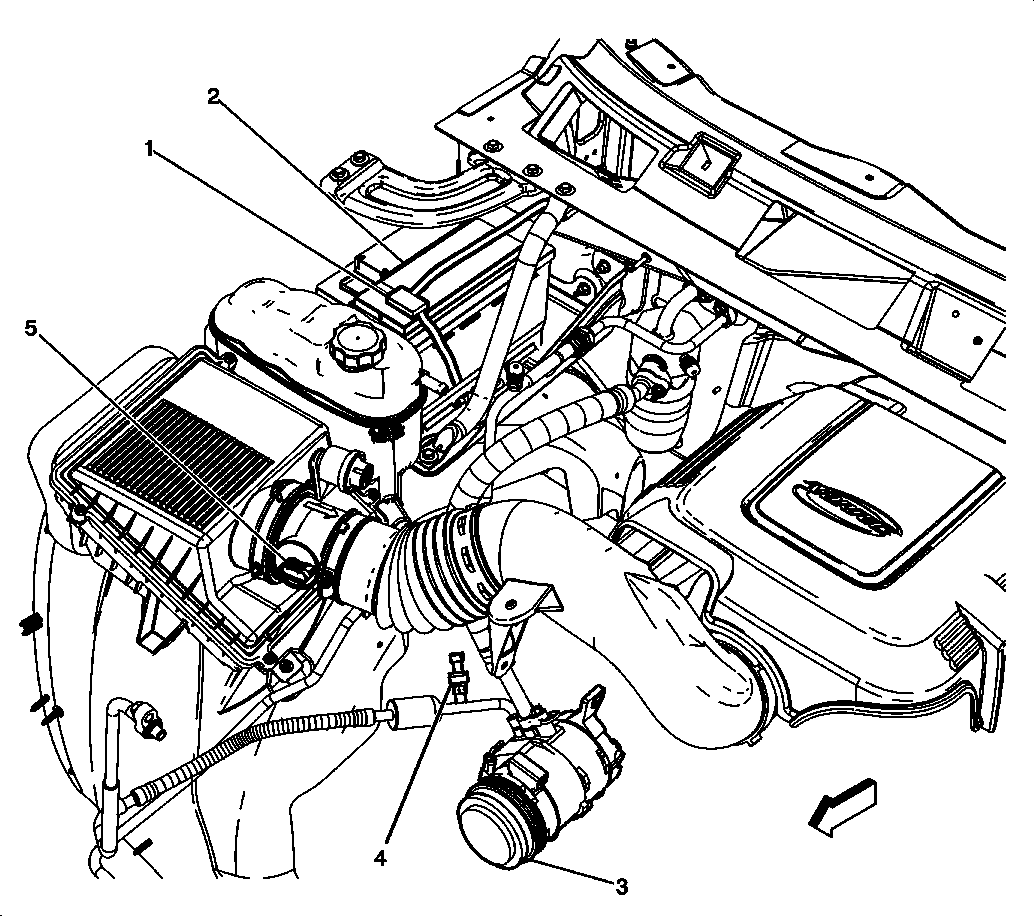

Fig 1: Right Rear of the Engine Compartment Components (4.8L/5.3L/6.0L/6.2L except HP2)
GM2363707Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Holder
2 Battery - Right
3 A/C Compressor Clutch (C67 or CJ2)
4 A/C Refrigerant Pressure Sensor (C67 or CJ2)
5 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
