Draining Fluids and Oil Filter Removal

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Fuel Filter

Courtesy of GENERAL MOTORS CORP.

Drain the fuel from the fuel filter.
1. Attach drain tube to fuel filter drain tap.
2. Place open end of drain tube into a suitable container.
3. Open fuel filter drain, and allow fuel to drain.
4. Close fuel filter drain.
5. Remove drain tube.
6. Properly dispose of used fuel.

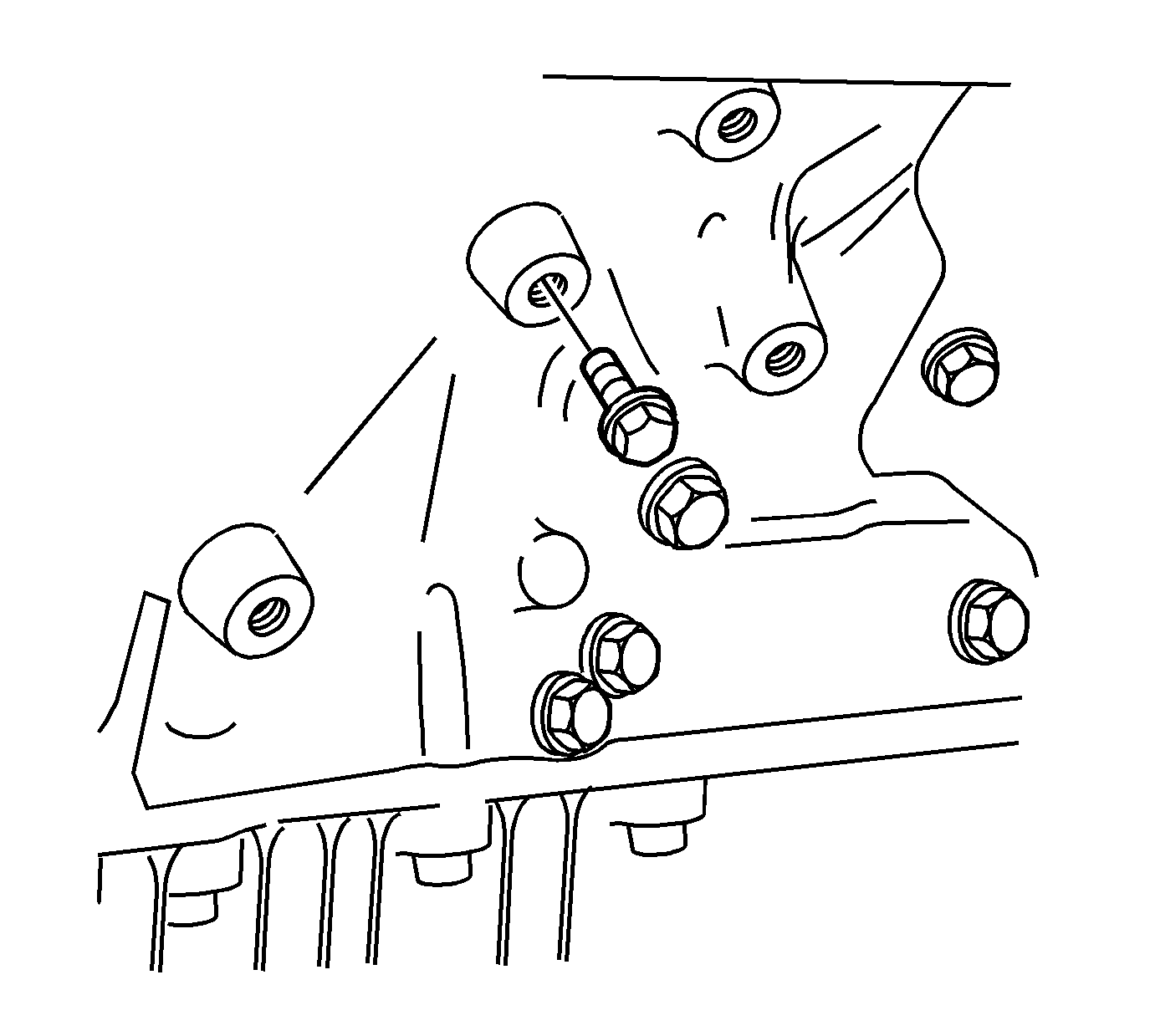

Fig 2: View Of Engine Oil Drain Plug

Courtesy of GENERAL MOTORS CORP.

Remove the oil drain plug and gasket, and allow engine oil to drain.
Discard the oil drain plug gasket.

Fig 3: View Of Oil Filter

Courtesy of GENERAL MOTORS CORP.

Remove the oil filter.

Fig 4: View Of Engine Block Coolant Plugs

Courtesy of GENERAL MOTORS CORP.

Remove the engine block coolant plugs, and allow coolant to drain.
