Engine Identification

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

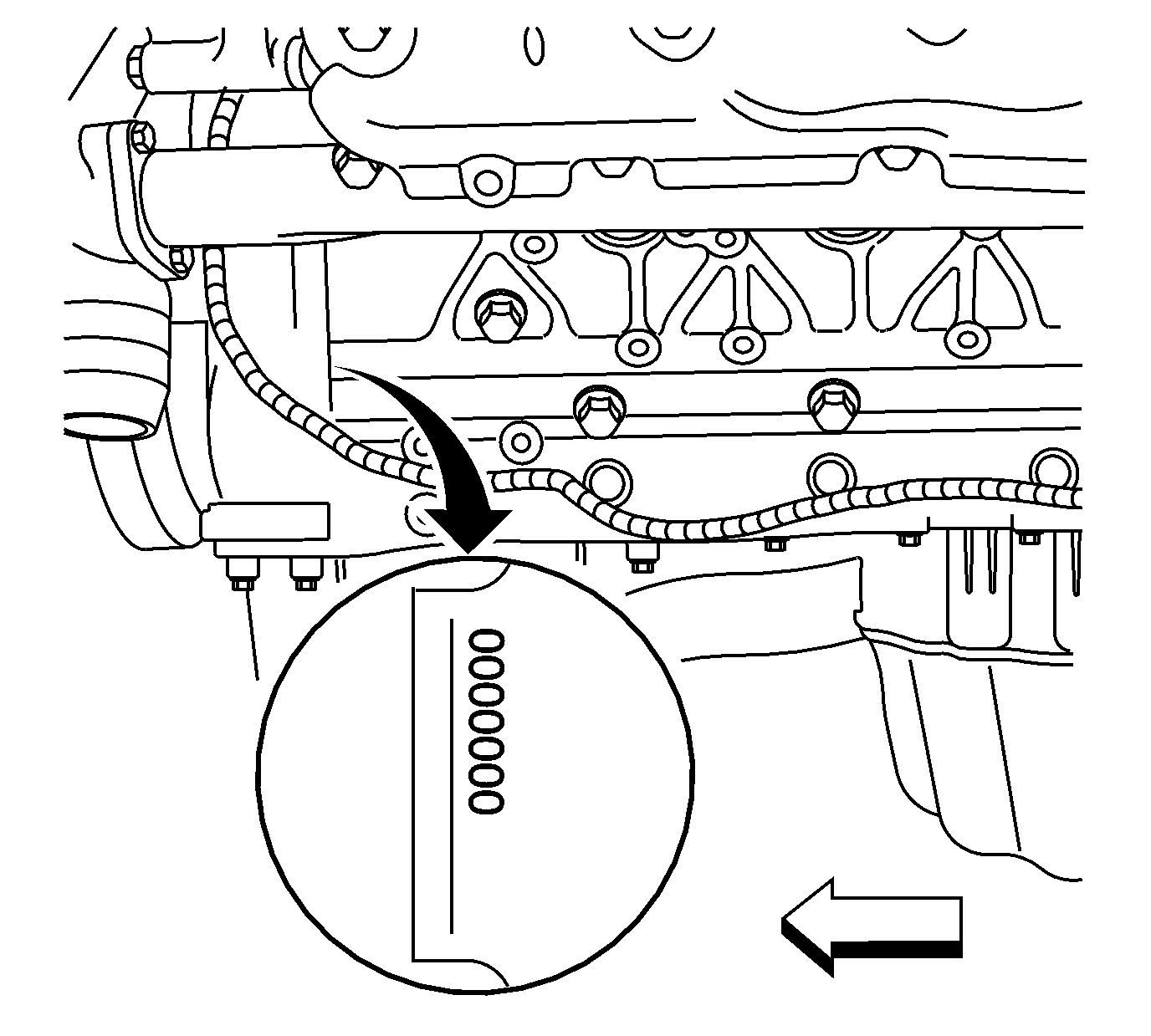

Fig 1: Locating Engine Serial Number

Courtesy of GENERAL MOTORS CORP.

The engine serial number is located on the left side of the block. It is on the front edge of the block.

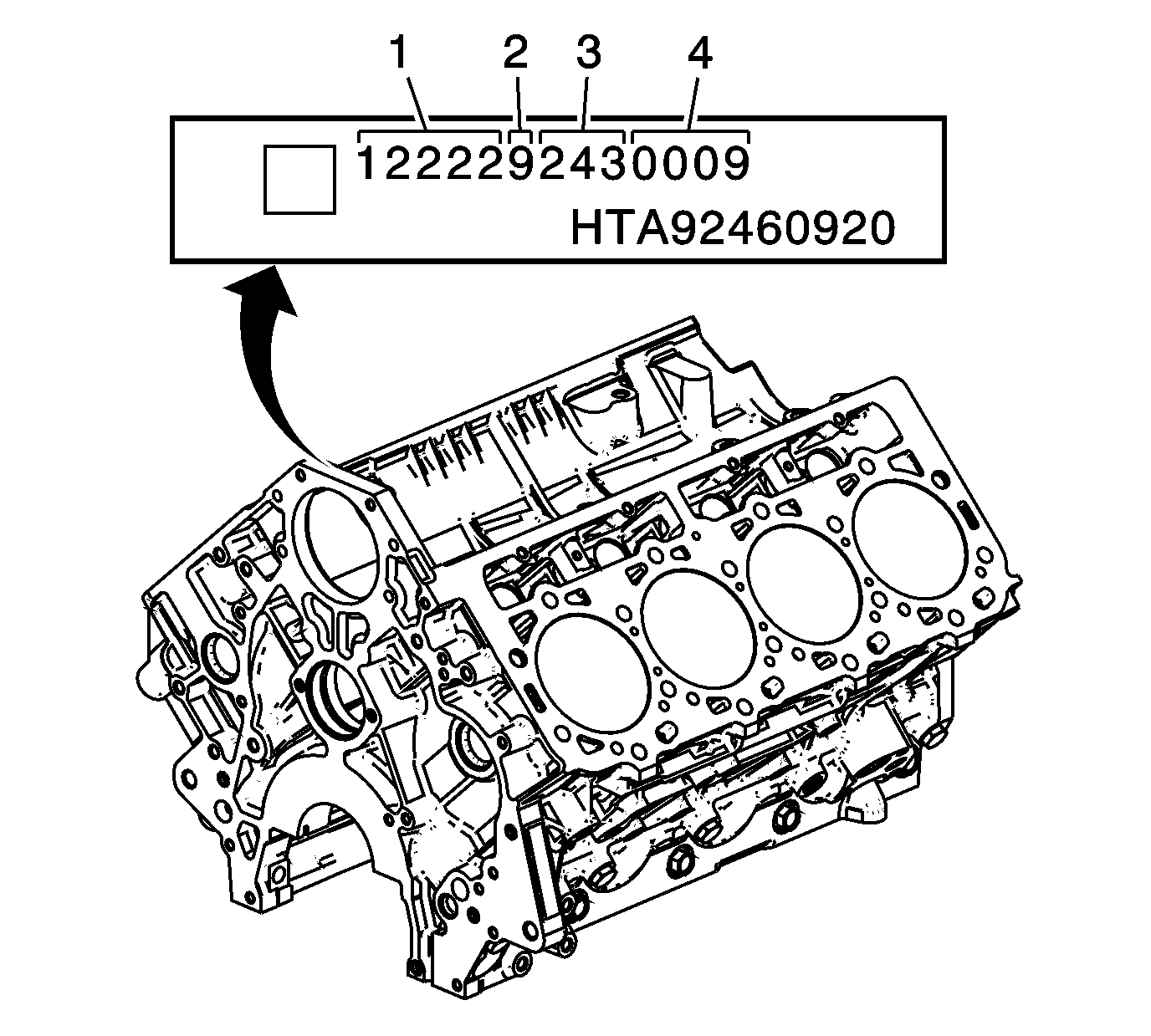

Fig 2: Identifying Main Bearing Bore Information

Courtesy of GENERAL MOTORS CORP.

The main bearing bore grades, build date, and sequence number are found on top of the high pressure pump bore.

(1) Main Bearing Bore Grade
(2) Last Digit of Calendar Year
(3) Machining Julian Day
(4) Sequence Number
