Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.
    Fig 1: View Of Engine Mount Bracket Bolts
    GM1701018Courtesy of GENERAL MOTORS CORP.
  1. If the vehicle is equipped with four wheel drive (4WD), remove the front drive axle. Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT (1500 FWD) , or DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT (2500 4WD) .
  2. Lower the vehicle.
  3. Remove the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) .
  4. Remove the engine mount to frame bolts (1).
  5. Raise and support the vehicle halfway. Refer to Lifting and Jacking the Vehicle .

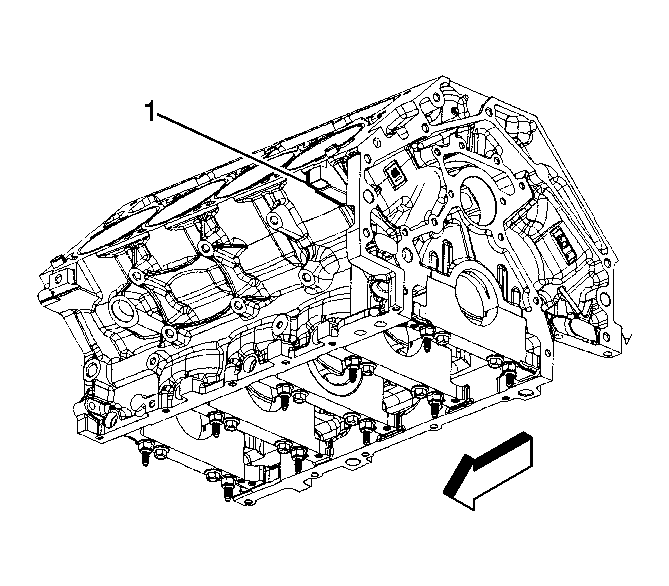

    6. Fig 2: Locating Tab On Engine Block
    GM1963641Courtesy of GENERAL MOTORS CORP.
    NOTE: DO NOT raise and/or support the engine by the crankshaft balancer, or the oil pan.
  6. Place an adjustable (screw type) jack to the tab (1) located on the engine block.
  7. Remove the left side exhaust manifold heatshield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (V6) or Exhaust Manifold Heat Shield Replacement - Left Side (V8) .
    8. Fig 3: View Of Engine Mount To Engine Bolts
    GM1701899Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine mount to engine bolts (1).
  9. Using the adjustable jack, raise the engine slightly until there is enough clearance to remove the engine mount.
    10. Fig 4: View Of Engine Mount
    GM1701901Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine mount.
