Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

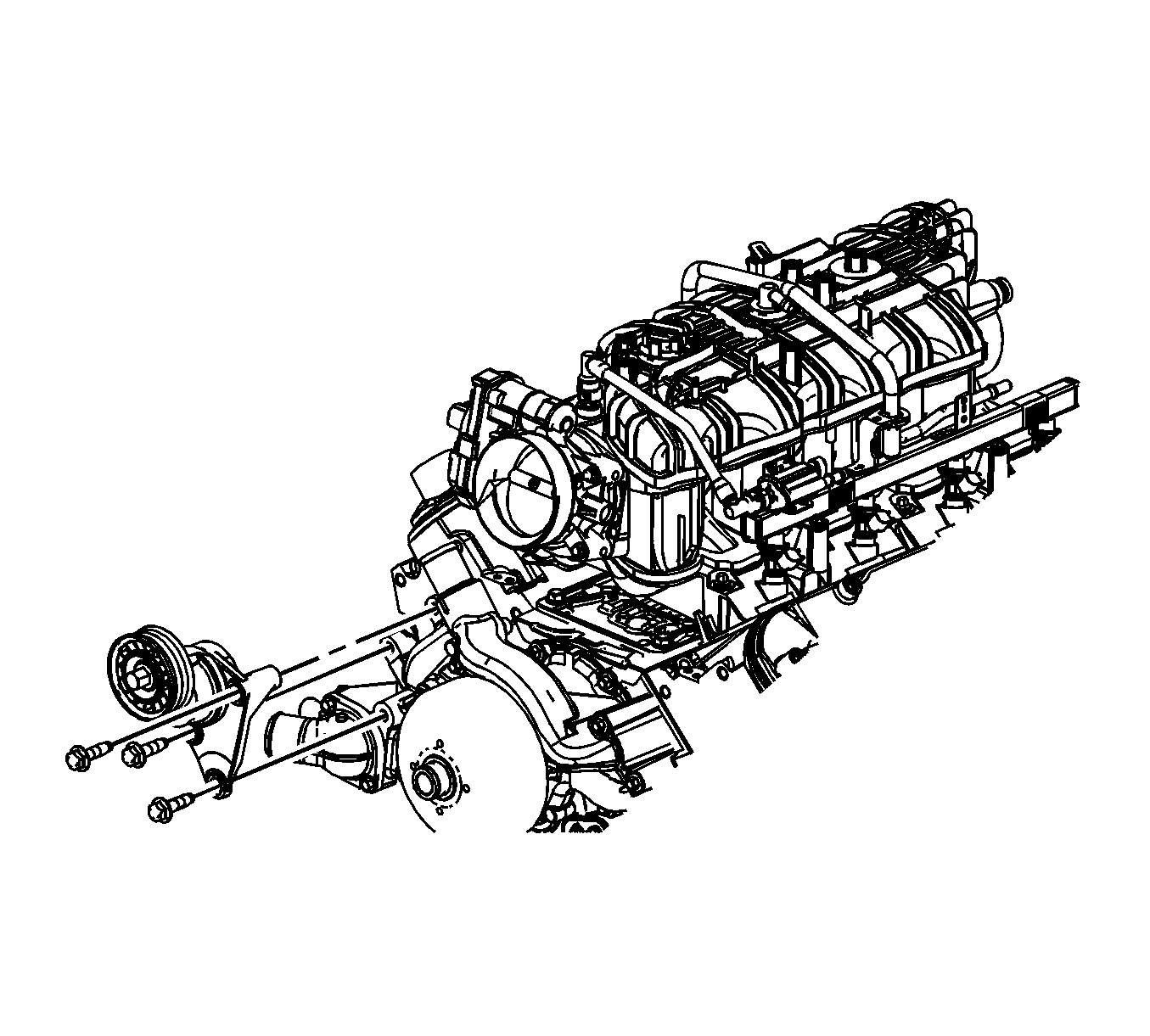

    Fig 1: View Of Drive Belt Tensioner & Bolts
    GM1696654Courtesy of GENERAL MOTORS CORP.
  1. Position the drive belt tensioner to the water pump.
    2. CAUTION: Refer to Fastener Caution .
  2. Install and tighten the drive belt tensioner bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  3. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
