Disassembled Views

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Intake Manifold/Upper Engine - Without Active Fuel Management
GM2103494Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt
2 Nut
3 Throttle Body
4 Throttle Body Seal
5 Manifold Absolute Pressure (MAP) Sensor O-ring Seal
6 MAP Sensor
7 Sequential Multi-Port Fuel Injector Assembly with Fuel Rail
8 Bolt
9 Fuel Injection Fuel Rail Bracket
10 Evaporative (EVAP) Emission Canister Purge Tube
11 EVAP Emission Canister Purge Solenoid Valve
12 EVAP Emission Canister Purge Tube
13 Bolt
14 Fuel Injection Fuel Rail Stop
15 Bolt
16 Intake Manifold
17 Intake Manifold Seal
18 Intake Manifold Gasket
19 Engine Coolant Air Bleed Plug
20 Engine Oil Pressure Sensor
21 Bolt
22 Bolt
23 Engine Coolant Air Bleed Pipe
24 Engine Coolant Air Bleed Pipe O-ring Seal
25 Engine Valley Cover
26 O-ring Seal
27 Gasket
28 Engine Block
Fig 2: Intake Manifold/Upper Engine - With Active Fuel Management
GM2103497Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt
2 Nut
3 Throttle Body
4 Throttle Body Seal
5 Manifold Absolute Pressure (MAP) Sensor O-ring Seal
6 MAP Sensor
7 Sequential Multi-Port Fuel Injector Assembly with Fuel Rail
8 Bolt
9 Fuel Injection Fuel Rail Bracket
10 Evaporative (EVAP) Emission Canister Purge Tube
11 EVAP Emission Canister Purge Solenoid Valve
12 EVAP Emission Canister Purge Tube
13 Bolt
14 Fuel Injection Fuel Rail Stop
15 Bolt
16 Intake Manifold
17 Intake Manifold Seal
18 Intake Manifold Gasket
19 Engine Coolant Air Bleed Plug
20 Engine Oil Pressure Sensor
21 Valve Lifter Oil Filter
22 Valve Lifter Oil Filter Seal
23 Bolt
24 Bolt
25 Engine Coolant Air Bleed Pipe
26 Engine Coolant Air Bleed Pipe O-ring Seal
27 Engine Valley Cover
28 Gasket
29 Engine Block
Fig 3: Cylinder Head/Upper Engine - Without Active Fuel Management
GM1658314Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
209 Valve Lifter
210 Valve Lifter Guide
211 Valve Lifter Guide Bolt
212 Valve Push Rod
213 Valve Rocker Arm
214 Valve Rocker Arm Pivot Support Bolt
215 Valve Rocker Arm Pivot Support
216 Cylinder Head Core Hole Plug
217 Cylinder Head Gasket
218 Cylinder Head
220 Cylinder Head Bolt - M10
221 Cylinder Head Bolt - M8
222 Valve Stem Oil Seal
223 Valve Spring
224 Valve Spring Cap
225 Valve Stem Key
226 Cylinder Head Core Hole Plug
227 Intake Valve
228 Exhaust Valve
229 Cylinder Head Plug
230 Cylinder Head Locating Pin
422 Oil Fill Tube O-Ring Seal
423 Oil Fill Tube
424 Oil Fill Cap
450 Oil Fill Cap O-Ring Seal
504 Valve Rocker Arm Cover Gasket
504 Valve Rocker Arm Cover Gasket
505 Valve Rocker Arm Cover
505 Valve Rocker Arm Cover
516 Valve Rocker Arm Cover Bolt
600 Exhaust Manifold
601 Exhaust Manifold Gasket
602 Exhaust Manifold Flange Bolt
603 Exhaust Manifold Heat Shield
604 Exhaust Manifold Heat Shield Bolt
700 Positive Crankcase Ventilation (PCV) Hose - Fresh Air
716 PCV Hose - Dirty Air
719 Ignition Coil Bracket
720 Ignition Coil Bracket Stud
721 Ignition Coil Wire Harness Assembly
722 Ignition Coil
723 Ignition Coil Bolt
724 Spark Plug Wire
725 Engine Coolant Temperature Sensor
726 Spark Plug
Fig 4: Cylinder Head/Upper Engine - With Active Fuel Management
GM1658311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
209 Valve Lifter - Non-Active Fuel Management
210 Valve Lifter Guide
211 Valve Lifter Guide Bolt
212 Valve Push Rod
213 Valve Rocker Arm
214 Valve Rocker Arm Pivot Support Bolt
215 Valve Rocker Arm Pivot Support
216 Cylinder Head Core Hole Plug
217 Cylinder Head Gasket
218 Cylinder Head
219 Valve Lifter - Active Fuel Management
220 Cylinder Head Bolt - M10
221 Cylinder Head Bolt - M8
222 Valve Stem Oil Seal
223 Valve Spring
224 Valve Spring Cap
225 Valve Stem Key
226 Cylinder Head Core Hole Plug
227 Intake Valve
228 Exhaust Valve
229 Cylinder Head Plug
230 Cylinder Head Locating Pin
422 Oil Fill Tube O-Ring Seal
423 Oil Fill Tube
424 Oil Fill Cap
450 Oil Fill Cap O-Ring Seal
504 Valve Rocker Arm Cover Gasket
504 Valve Rocker Arm Cover Gasket
505 Valve Rocker Arm Cover
505 Valve Rocker Arm Cover
516 Valve Rocker Arm Cover Bolt
600 Exhaust Manifold
601 Exhaust Manifold Gasket
602 Exhaust Manifold Flange Bolt
603 Exhaust Manifold Heat Shield
604 Exhaust Manifold Heat Shield Bolt
700 Positive Crankcase Ventilation (PCV) Hose - Fresh Air
716 PCV Hose - Dirty Air
719 Ignition Coil Bracket
720 Ignition Coil Bracket Bolt
721 Ignition Coil Wire Harness Assembly
722 Ignition Coil
723 Ignition Coil Bolt
724 Spark Plug Wire
725 Engine Coolant Temperature Sensor
726 Spark Plug
Fig 5: Front of Engine (w/VVT)
GM2298659Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Water Pump Inlet Bolt
2 Water Pump Inlet
3 Engine Coolant Thermostat
4 Water Pump Bolt
5 Water Pump
6 Water Pump Gasket
7 Oil Level Indicator
8 Oil Level Indicator O-Ring Seal
9 Oil Level Indicator Tube Bolt
10 Oil Level Indicator Tube
11 Oil Level Indicator Tube O-Ring
12 Engine Block
13 Camshaft Bearing
14 Camshaft
15 Camshaft Sprocket Locating Pin
16 Camshaft Retainer
17 Camshaft Retainer Bolt
18 Camshaft Position (CMP) Actuator
19 CMP Actuator Solenoid Valve
20 Crankshaft Sprocket
21 Timing Chain
22 Timing Chain Tensioner
23 Timing Chain Tensioner Bolt
24 Engine Front Cover Gasket
25 Engine Front Cover
26 Engine Front Cover Bolt
27 CMP Actuator Magnet Gasket
28 CMP Actuator Magnet
29 CMP Actuator Hub Cover Bolt
30 CMP Sensor Bolt
31 CMP Sensor O-Ring Seal
32 CMP Sensor
33 CMP Sensor Wire Harness Assembly
34 CMP Sensor Wire Harness Assembly Bolt
35 Crankshaft Front Oil Seal
36 Crankshaft Balancer
37 Crankshaft Balancer Bolt
38 Oil Pump Bolt
39 Oil Pump
40 Oil Pressure Relief Valve
41 Oil Pressure Relief Valve Spring
42 Oil Pressure Relief Valve Bore Plug
42 Oil Pump Driven Gear
44 Oil Pump Drive Gear
45 Oil Pump Cover
46 Oil Pump Cover Bolt

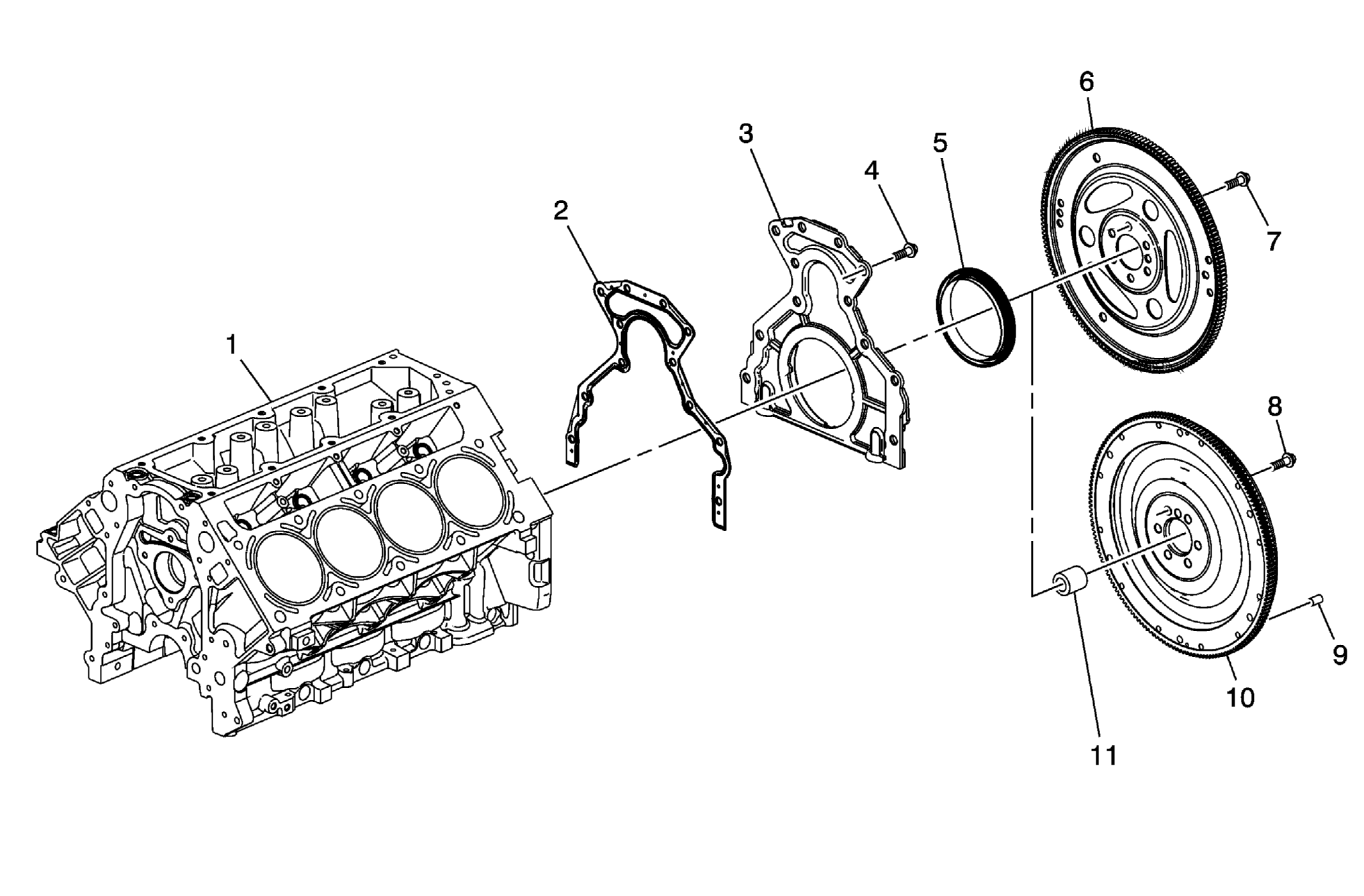

Fig 6: Rear of Engine
GM2298664Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Block
2 Crankshaft Rear Oil Seal Housing Gasket
3 Crankshaft Rear Oil Seal Housing
4 Crankshaft Rear Oil Seal Housing Bolt
5 Crankshaft Rear Oil Seal
6 Flex Plate - Automatic Transmission
7 Flex Plate Bolt - Automatic Transmission
8 Flywheel Bolt - Manual Transmission (w/M96 RPO)
9 Clutch Pressure Plate Locating Pin - Manual Transmission (w/M96 RPO)
10 Flywheel - Manual Transmission (w/M96 RPO)
11 Transmission Pilot Bearing - Manual Transmission (w/M96 RPO)
Fig 7: Lower Engine Assembly
GM2298670Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Block
2 Piston Pin Retainer
3 Piston Pin
4 Piston Ring Set
5 Piston
6 Connecting Rod
7 Connecting Rod Bearing
8 Connecting Rod Cap
9 Connecting Rod Bolt
10 Crankshaft Bearing
11 Crankshaft Thrust Bearing
12 Crankshaft Balancer Key
13 Crankshaft
14 Crankshaft Bearing Cap Stud - M10
15 Crankshaft Bearing Cap Bolt - M10
16 Crankshaft Bearing Cap
17 Crankshaft Bearing Cap Bolt - M8
18 Crankshaft Oil Deflector
19 Crankshaft Oil Deflector Nut
20 Oil Pan Gasket
21 Oil Pan Baffle Bolt
22 Oil Pan Baffle
23 Oil Pan Closeout Cover
24 Oil Pan Closeout Cover Bolt
25 Active Fuel Management Oil Pressure Relief Valve
26 Oil Pan Cover Gasket
27 Oil Pan Cover
28 Oil Pan Cover Bolt
29 Oil Filter Fitting
30 Oil Filter
31 Oil Pan Bolt
32 Oil Pan Bolt
33 Oil Pan
34 Oil Pan Drain Plug
35 Oil Pan Closeout Cover
36 Oil Pan Closeout Cover Bolt
37 Oil Pump Suction Pipe Nut
38 Oil Pump Suction Pipe Bolt
39 Oil Pump Screen Assembly with Oil Pump Suction Pipe
40 Oil Pump O-Ring Seal
Fig 8: Engine Block Plugs/Sensors
GM2298675Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Oil Gallery Plug - Front
2 Engine Block
3 Oil Gallery Plug Washer
4 Oil Gallery Plug - Side - M16
5 Knock Sensor Bolt
6 Knock Sensor
7 Engine Block Coolant Drain Hole Plug - M28
8 Engine Coolant Heater
9 Engine Coolant Heater Washer
10 Engine Block Coolant Drain Hole Plug - M16
11 Engine Block Coolant Drain Hole Plug Washer
12 Crankshaft Position (CKP) Sensor Bolt
13 CKP Sensor
14 CKP Sensor O-Ring
15 Oil Gallery Plug - Rear
16 Oil Gallery Plug O-Ring
17 Transmission Housing Locating Pin
Fig 9: Oil Pump Assembly
GM1272779Courtesy of GENERAL MOTORS CORP.
Callout Component Name
408 Bolt
409 Oil Pump Housing Cover
410 Oil Pump Drive Gear
412 Oil Pump Driven Gear
413 Oil Pump
414 Oil Pump Pressure Relief Valve
415 Oil Pump Pressure Relief Valve Spring
416 Oil Pump Housing Plug
