Connecting Rod Bearings Selection Specifications
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

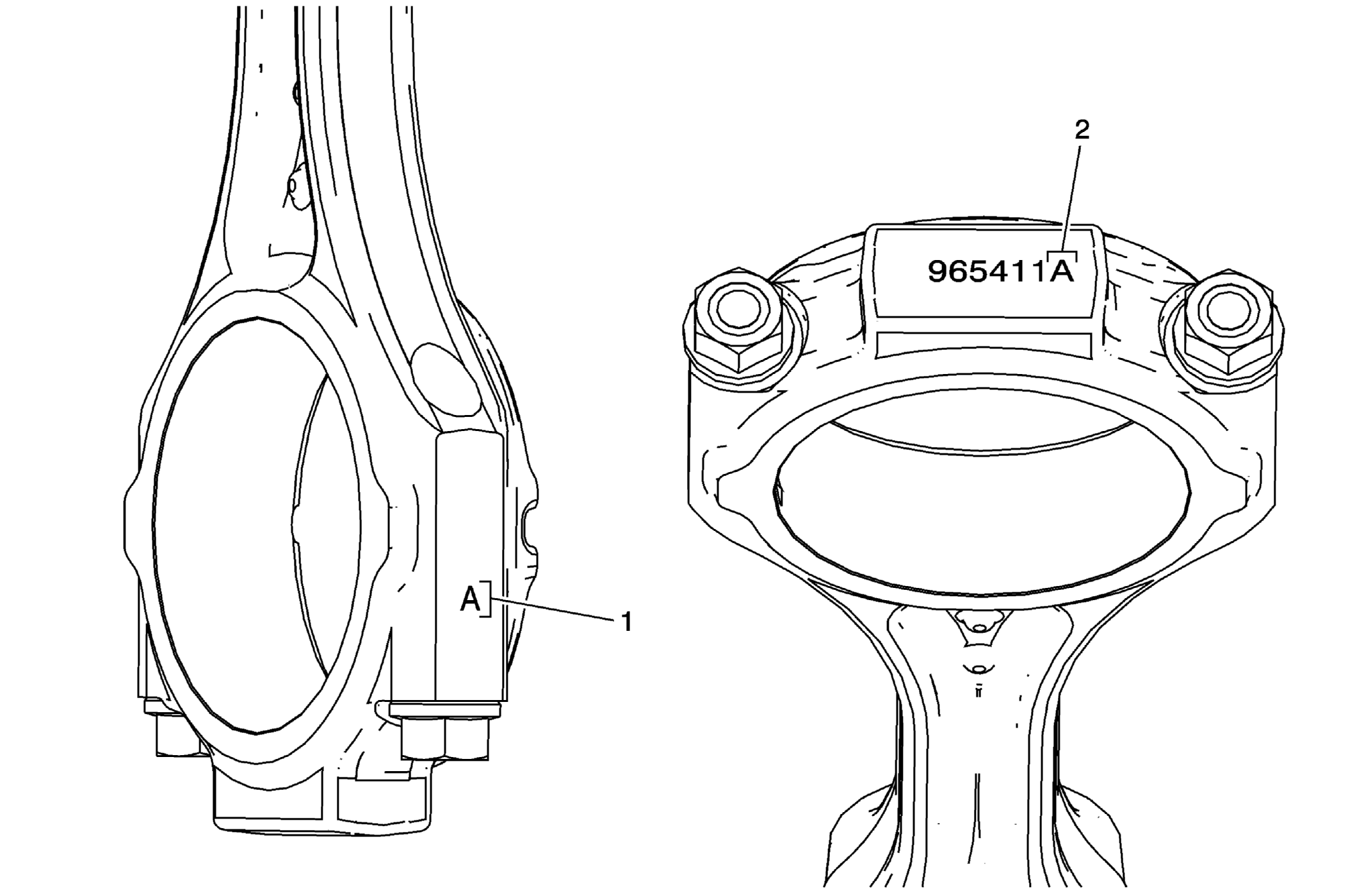

| Callout | Component Name |
|---|---|
| 1 | First Design |
| 2 | Second Design |
Connecting Rod Bearing Grade
| Connecting Rod Grade (Stamped on Connecting Rod) | Use This Bearing Color | Bearing Thickness | Oil Clearance | ||
|---|---|---|---|---|---|
| Metric (mm) | English (in) | Metric (mm) | English (in) | ||
| A | Green | 2.007 - 2.013 | 0.0790 - 0.0793 | 0.037 - 0.076 | 0.0015 - 0.0030 |
| B | Yellow | 2.011 - 2.017 | 0.0792 - 0.0794 | 0.037 - 0.076 | 0.0015 - 0.0030 |
