Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

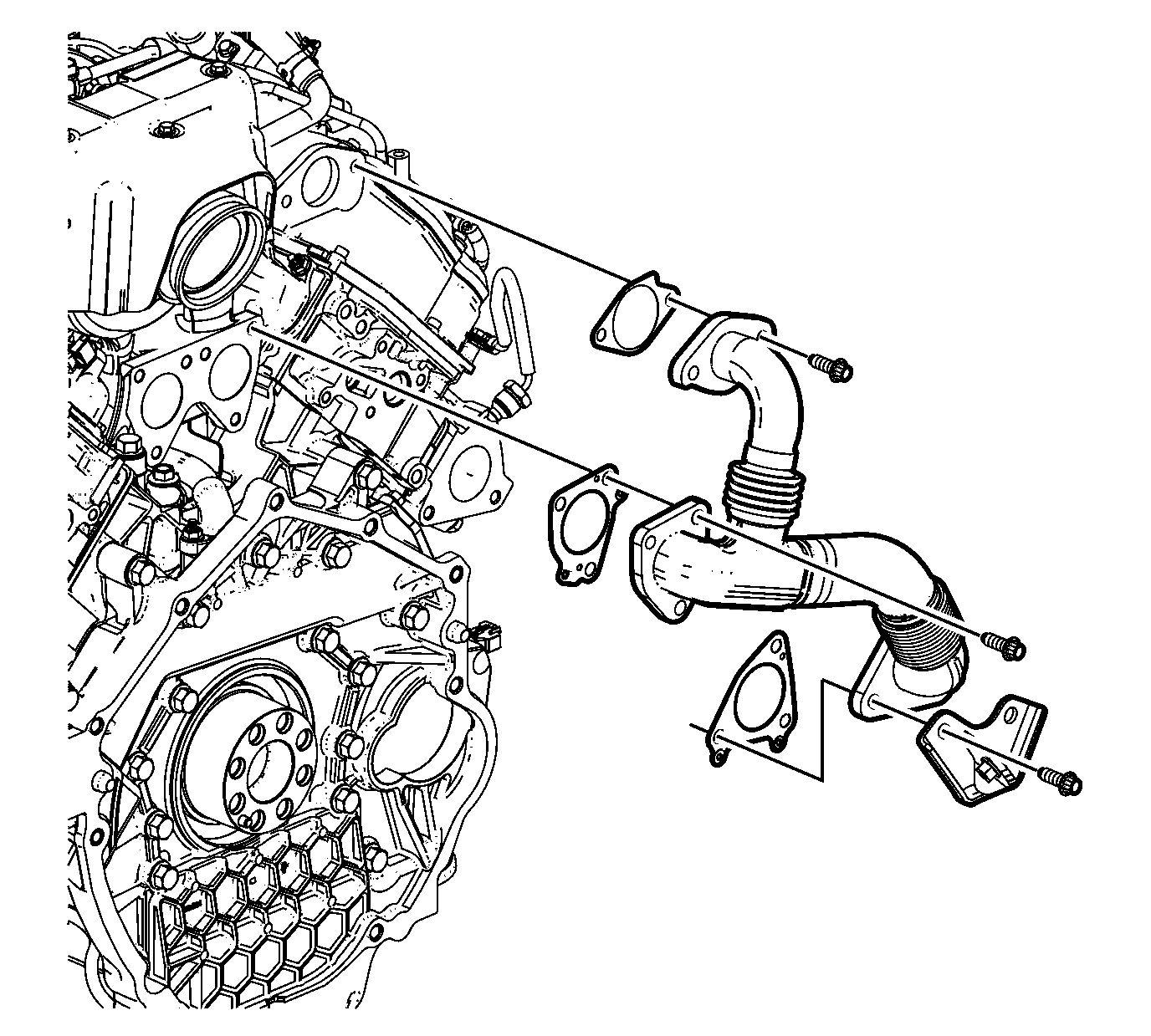

Fig 1: Exhaust Pipe

Courtesy of GENERAL MOTORS CORP.

Position the exhaust pipe with a NEW gasket to the turbocharger, EGR cooler and the exhaust manifold.

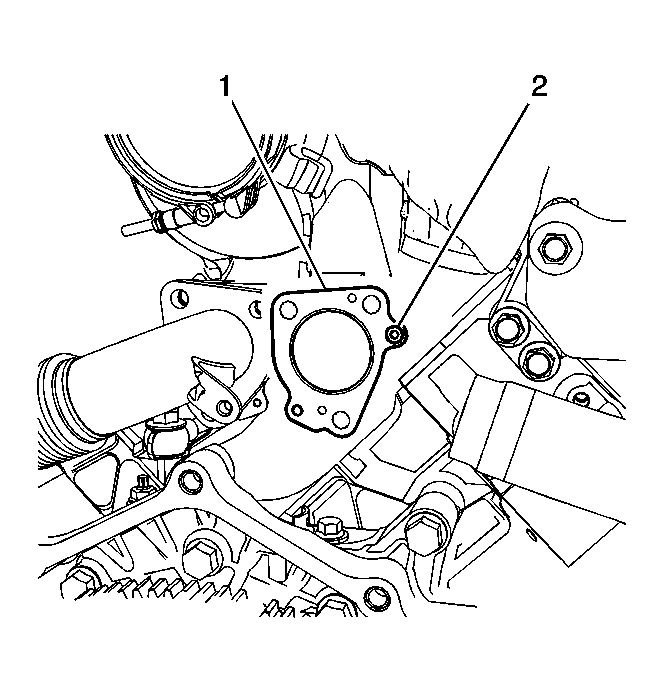

Fig 2: Aligning Gasket Tab

Courtesy of GENERAL MOTORS CORP.

Install a NEW gasket (1) to turbocharger and align the tab (2) to face outward.
Loosely install the exhaust pipe to turbocharger bolts.

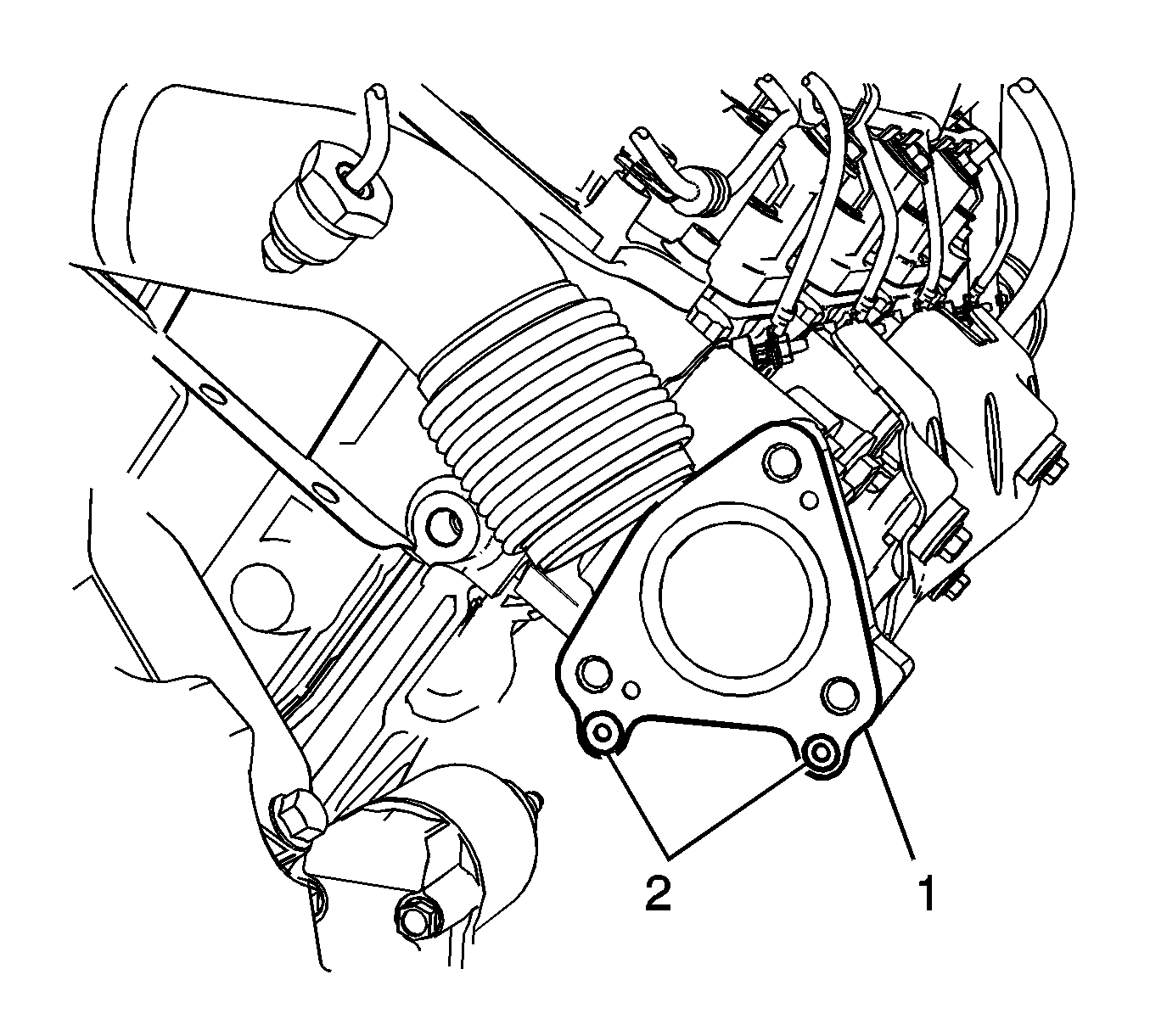

Fig 3: Positioning Exhaust Pipe

Courtesy of GENERAL MOTORS CORP.

Position the exhaust pipe with a NEW gasket (1) to the exhaust manifold. Align the tabs (2) on the gasket to face downward.
Loosely install the exhaust pipe to exhaust manifold bolts.

Fig 4: View Of Exhaust Pipe Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Tighten the exhaust pipe bolts in the sequence shown to 53 N.m (39 lb ft).
Install the upper exhaust gas recirculation cooling pipe. Refer to Exhaust Gas Recirculation Coolant Hoses/Pipes Replacement .
Install the turbocharger exhaust pipe. Refer to Turbocharger Exhaust Pipe Replacement (6.6L) .
