Hybrid Cooling Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Electronics Cooling
GM2224195Courtesy of GENERAL MOTORS CORP.

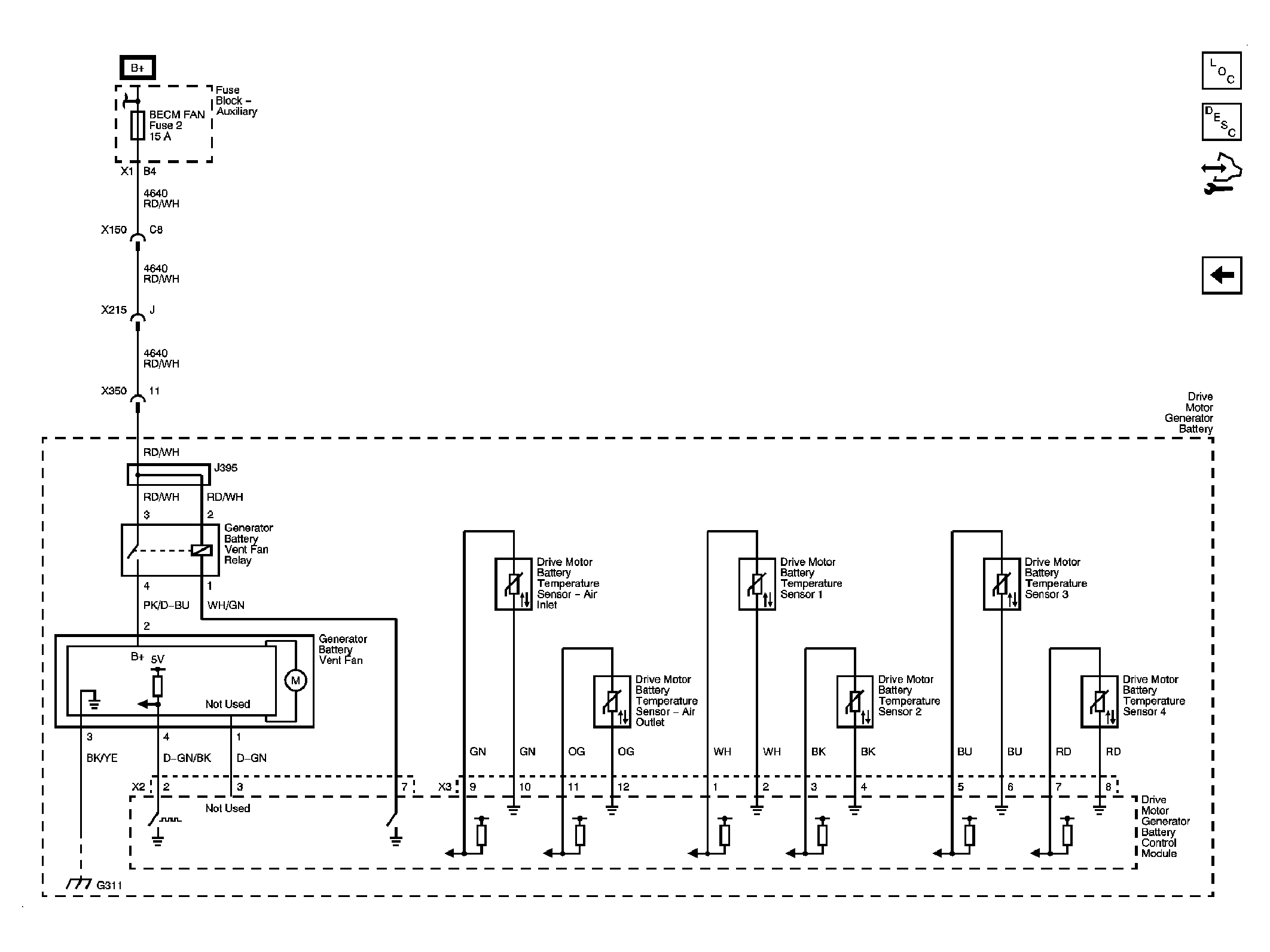

Fig 2: Battery Cooling
GM2224197Courtesy of GENERAL MOTORS CORP.
