Upfitter Provision Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

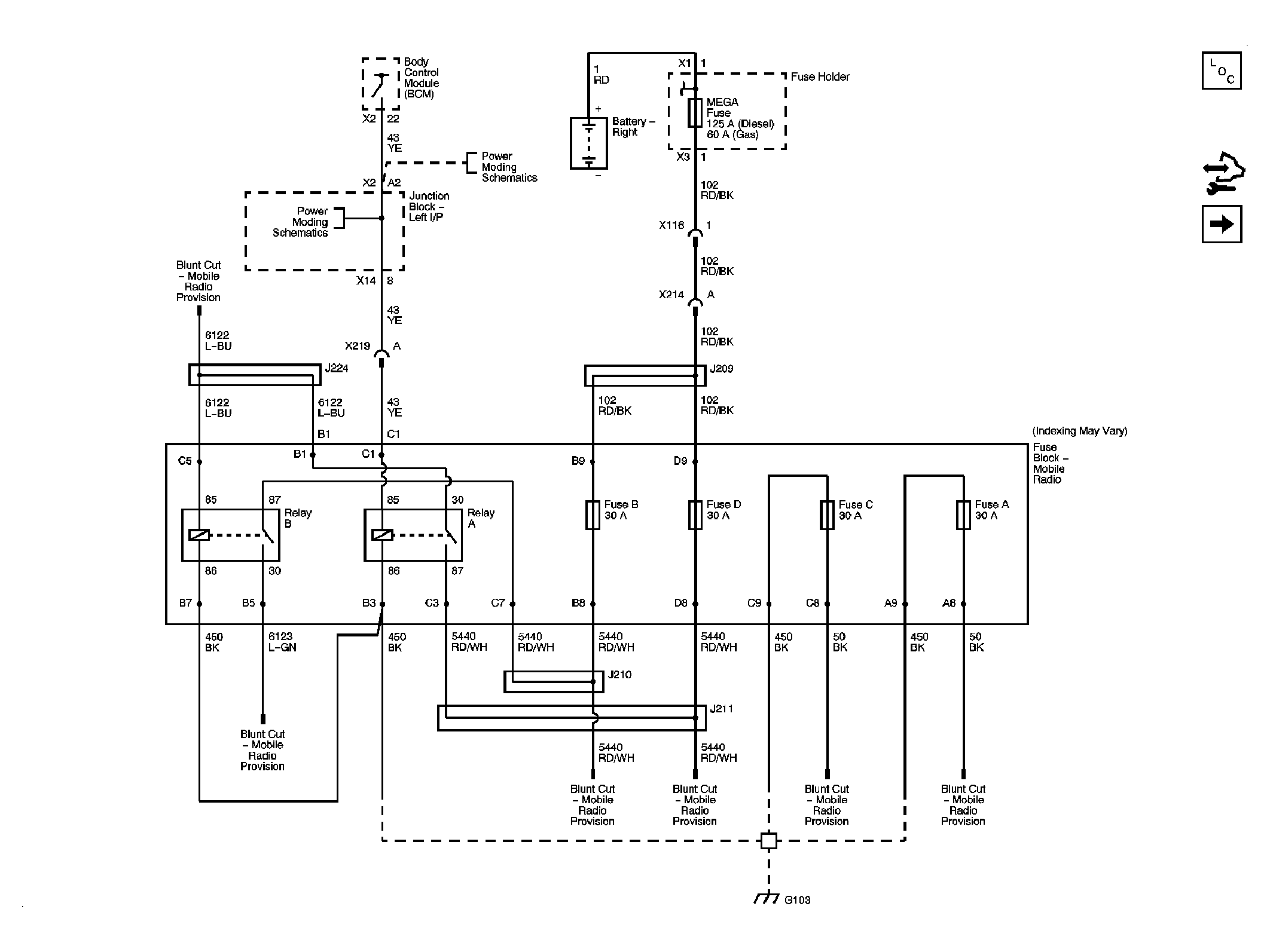

Fig 1: Mobile Radio Power (9L4)
GM2224655Courtesy of GENERAL MOTORS CORP.

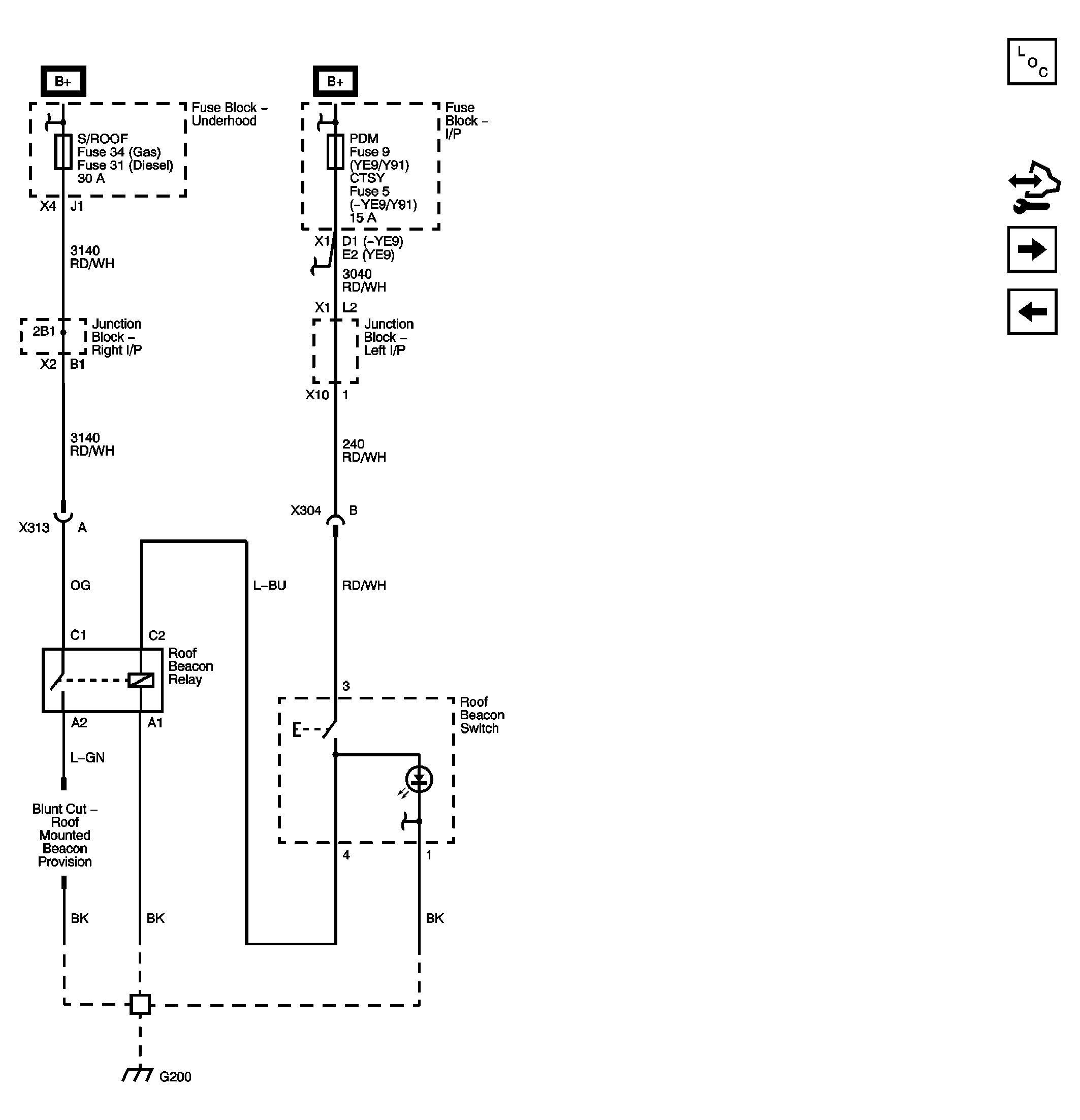

Fig 2: Roof Beacon Wiring (TRW)
GM2224656Courtesy of GENERAL MOTORS CORP.

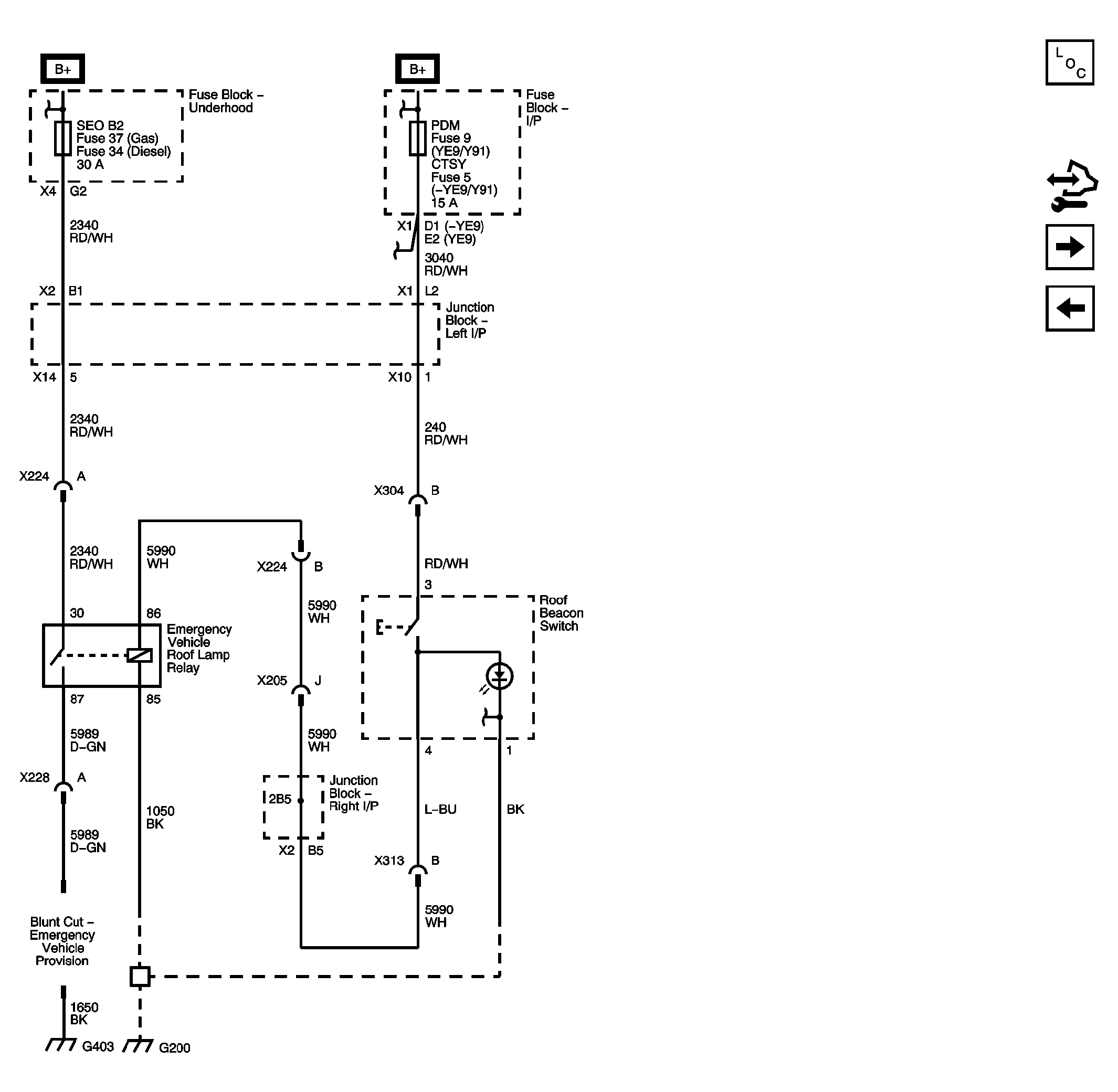

Fig 3: Emergency Vehicle Wiring (5Y0)
GM2224657Courtesy of GENERAL MOTORS CORP.

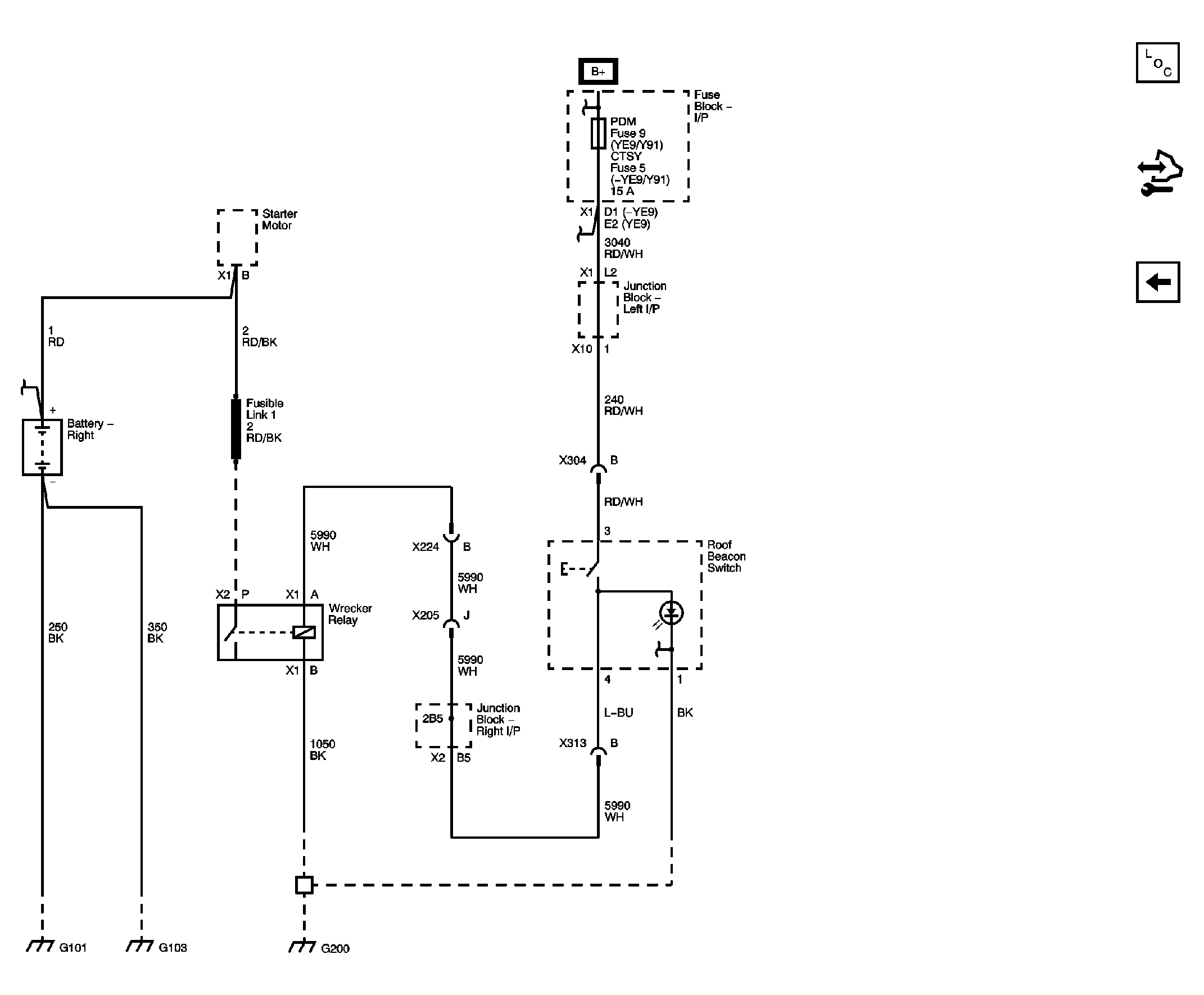

Fig 4: Wrecker Wiring (5X7)
GM2224658Courtesy of GENERAL MOTORS CORP.
