Trailer Connector/Provision Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

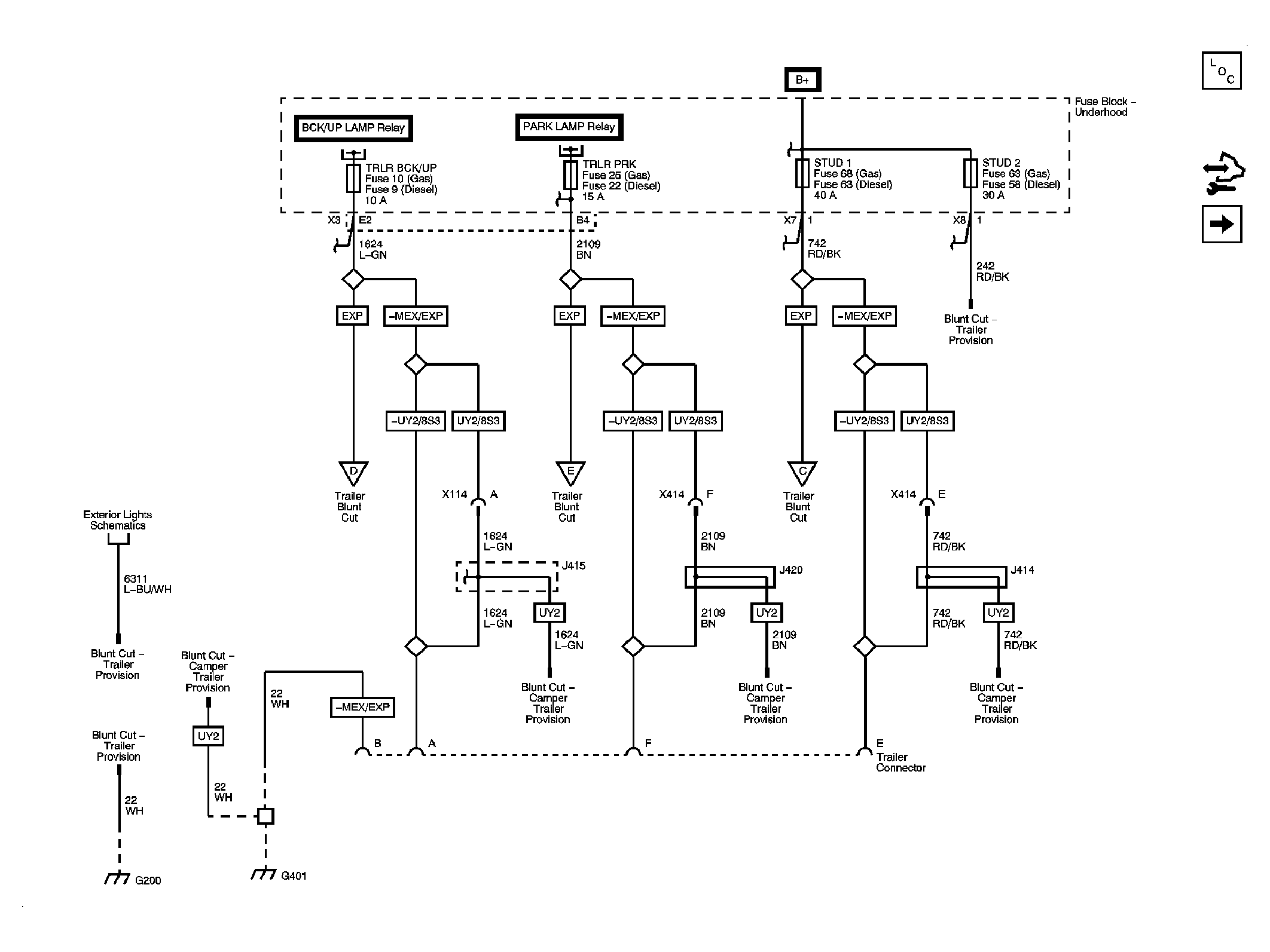

Fig 1: Trailer Connector 1 of 2
GM2224659Courtesy of GENERAL MOTORS CORP.

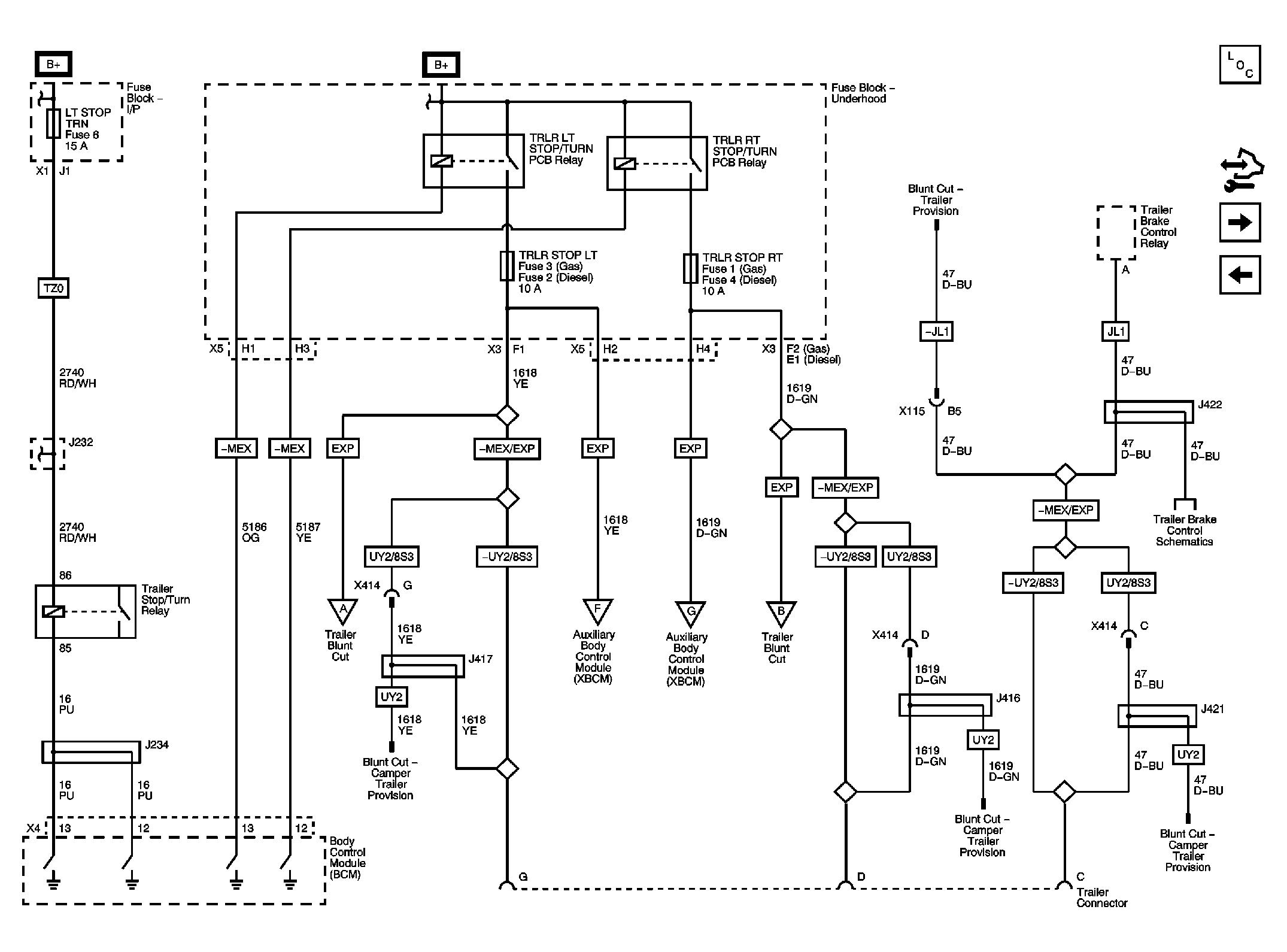

Fig 2: Trailer Connector 2 of 2
GM2224660Courtesy of GENERAL MOTORS CORP.

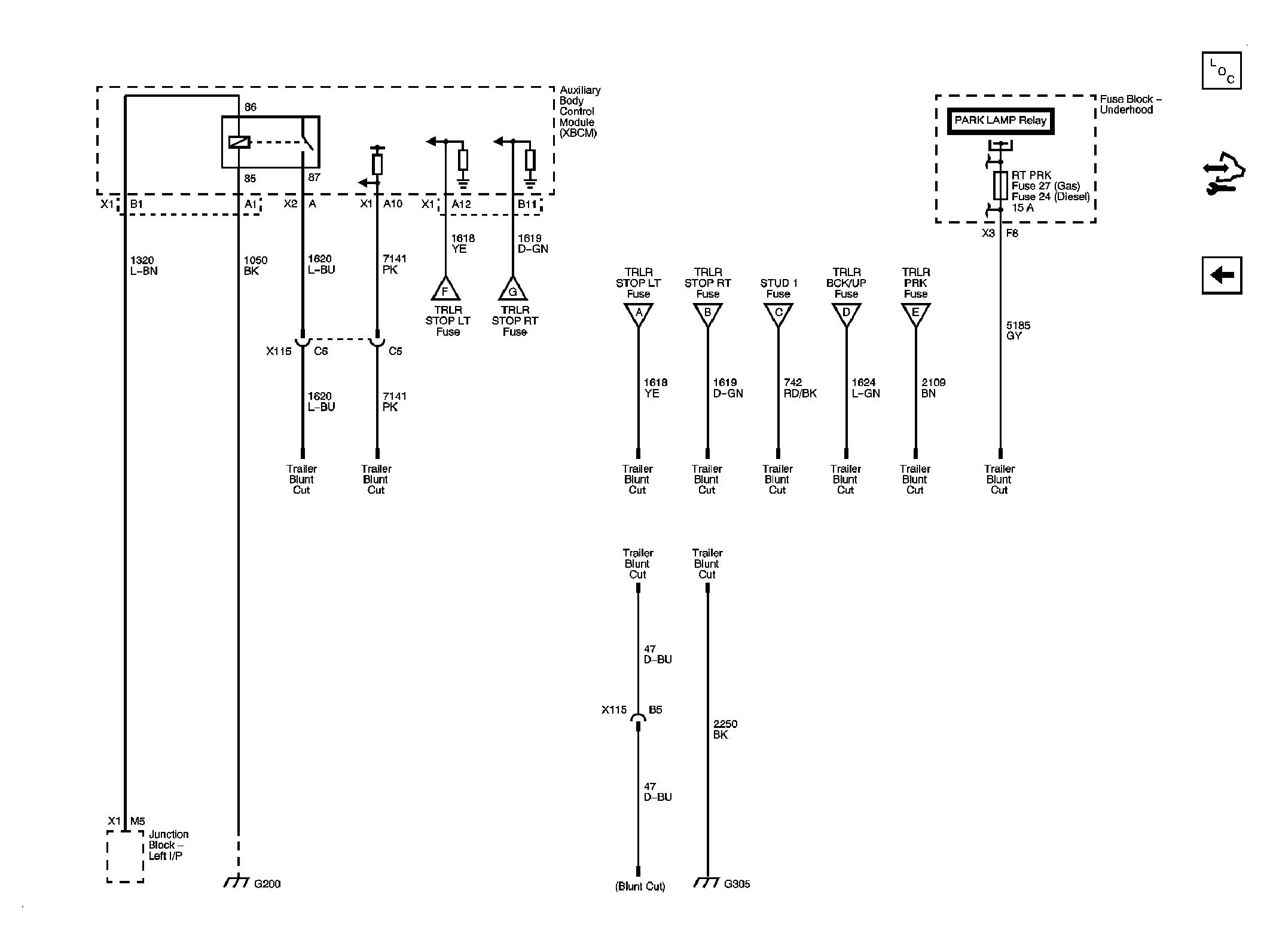

Fig 3: EXP
GM2224661Courtesy of GENERAL MOTORS CORP.
