Power Moding Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

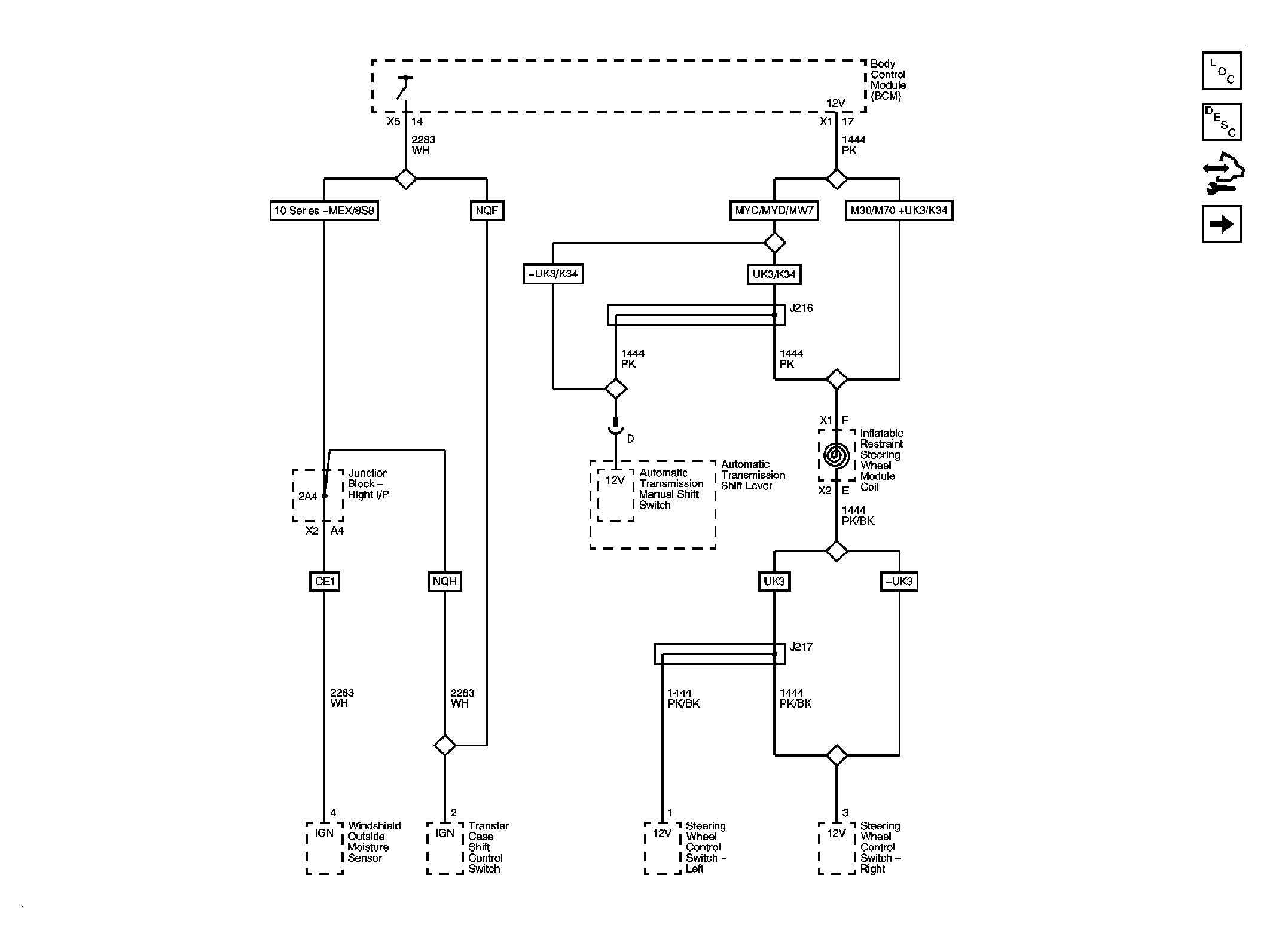

Fig 1: Ignition I Voltage and 12 Volt Reference
GM2224573Courtesy of GENERAL MOTORS CORP.

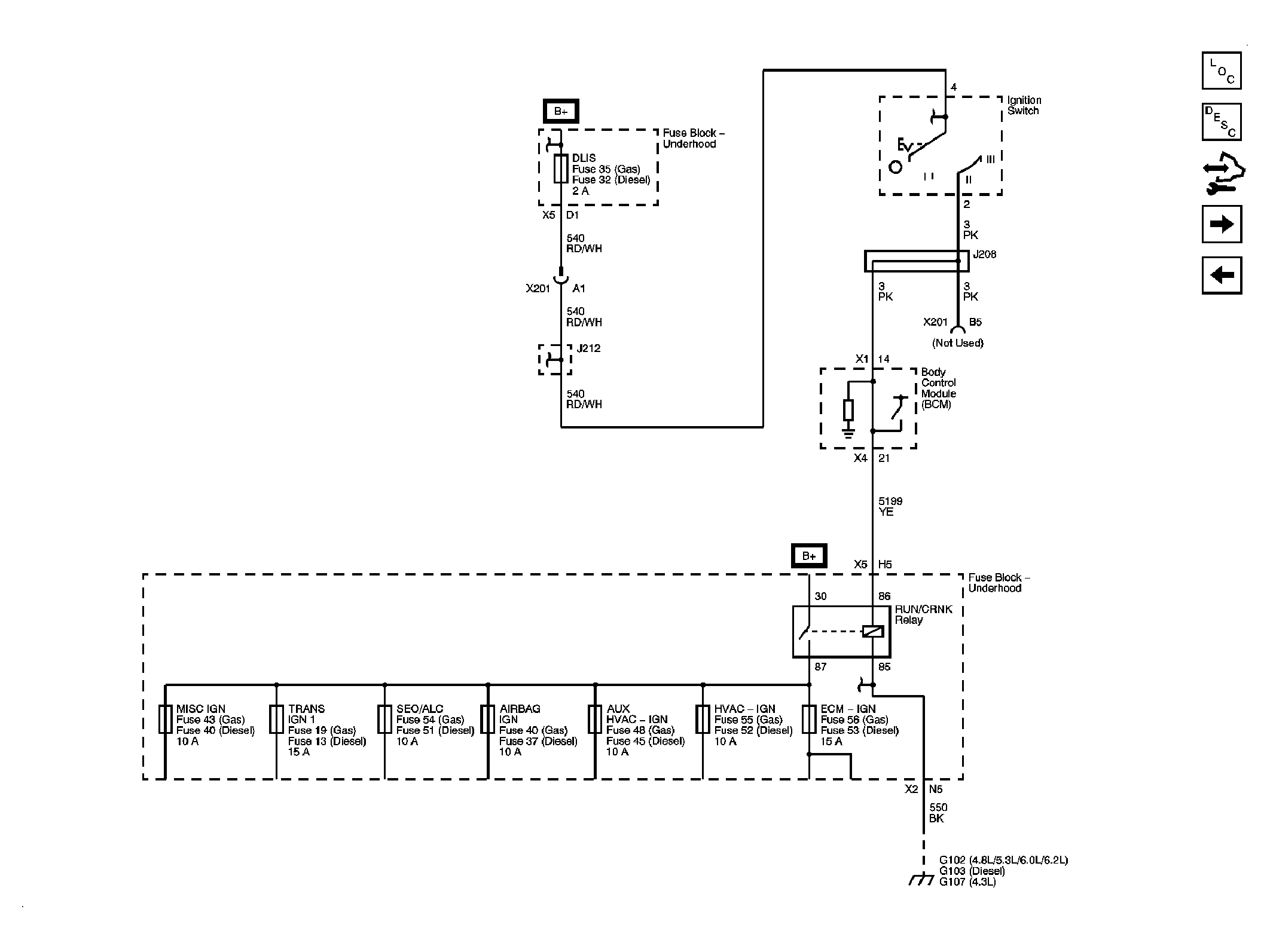

Fig 2: Ignition II/III Voltage
GM2224574Courtesy of GENERAL MOTORS CORP.

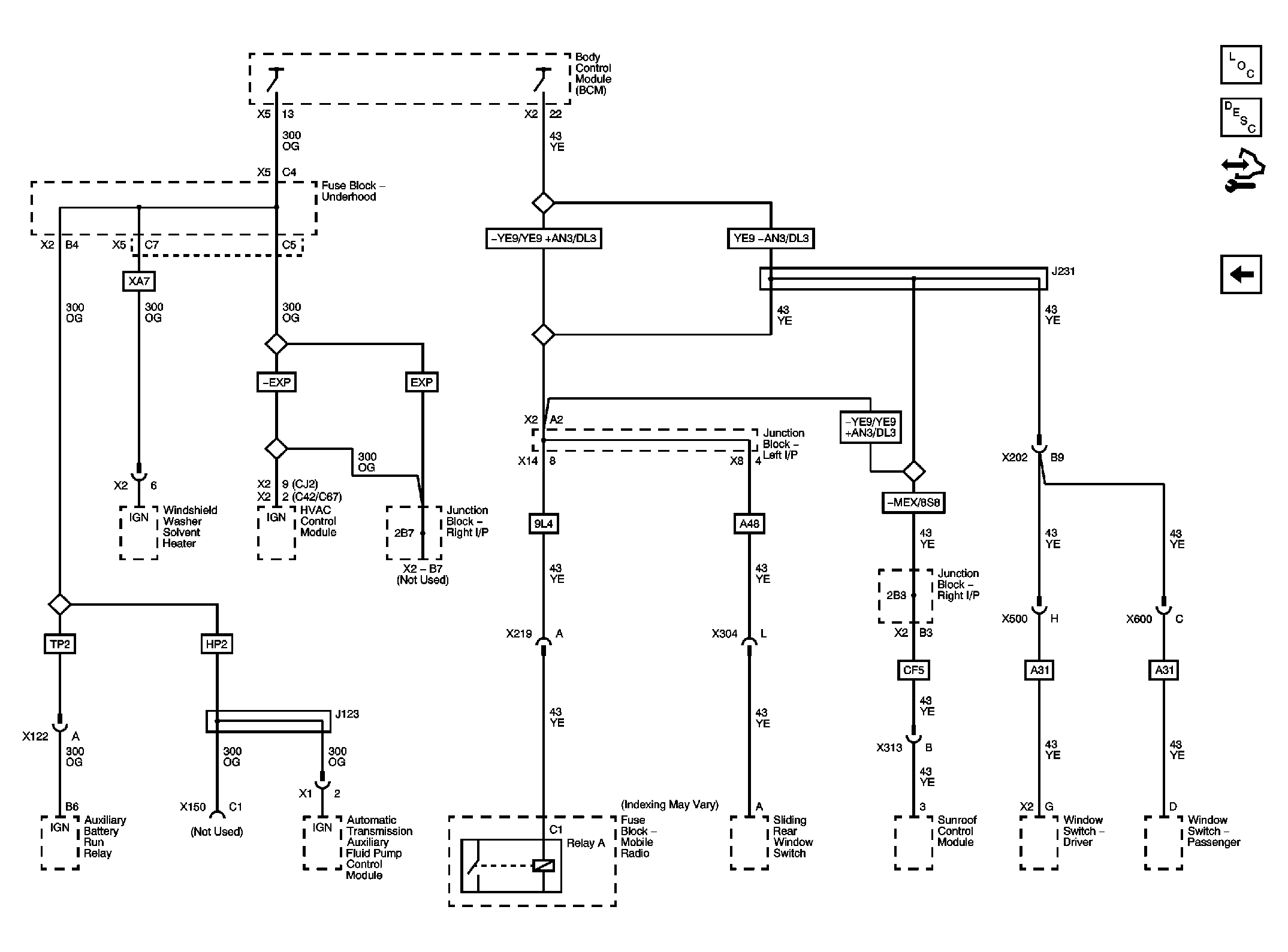

Fig 3: Ignition III Voltage and Accessory Voltage
GM2224576Courtesy of GENERAL MOTORS CORP.
