Removal Procedure
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

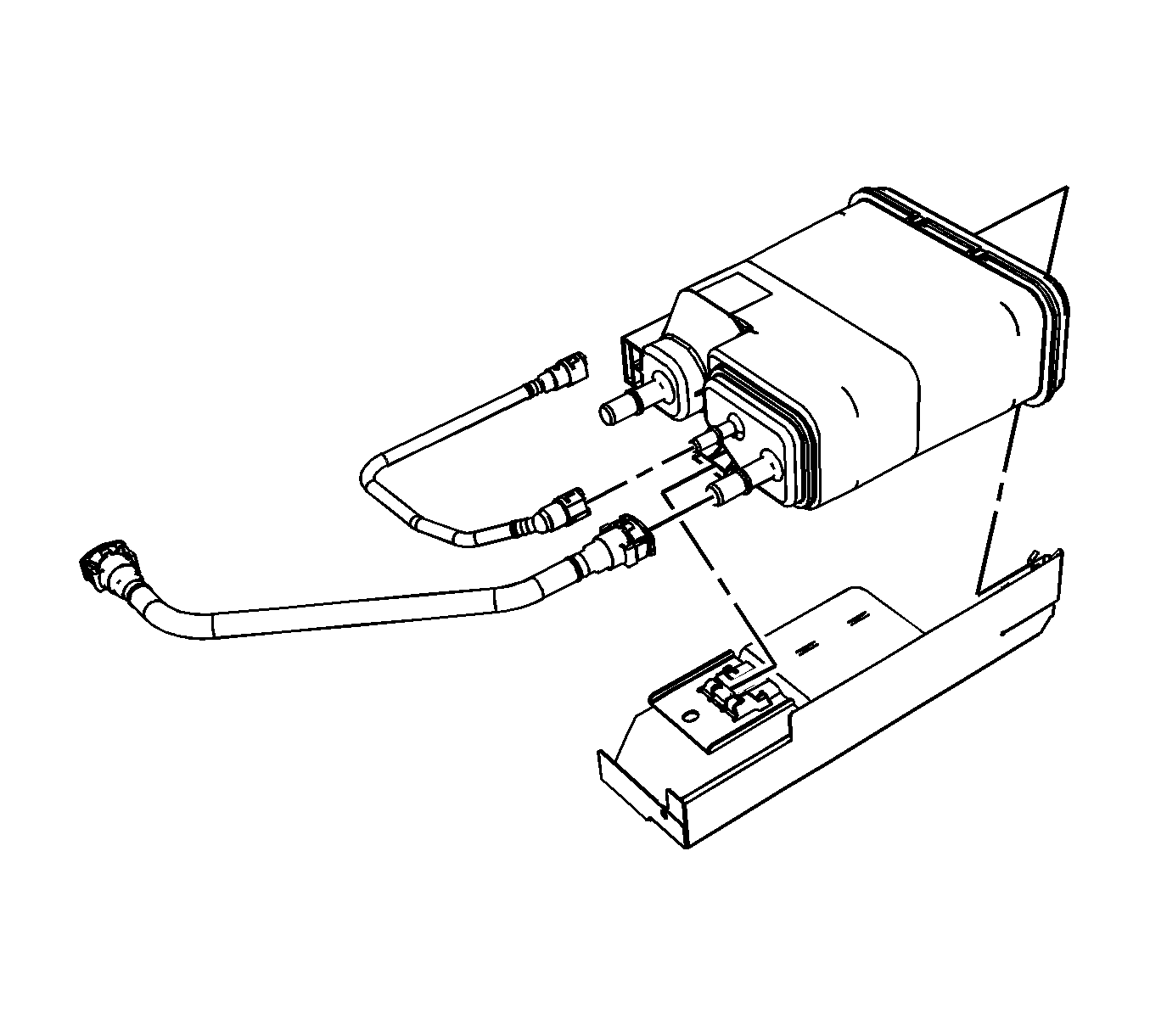

- Disconnect the EVAP canister pipe quick connect fitting (2) from the fuel tank EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .
- Disconnect the EVAP canister vent solenoid pipe quick connect fitting (3) from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
- Disconnect the EVAP canister pipe quick connect fitting (4) from the fuel tank EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the EVAP canister nut. (body shown removed, for clarity).
- Remove the EVAP canister assembly.
- If replacing the EVAP canister perform the following steps, otherwise proceed to step 4 in the installation procedure.
- Remove the EVAP canister bracket from the canister.
- Disconnect the EVAP canister pipe quick connect fittings from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
NOTE:
Clean all evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the lines in order to avoid possible system contamination.
