Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

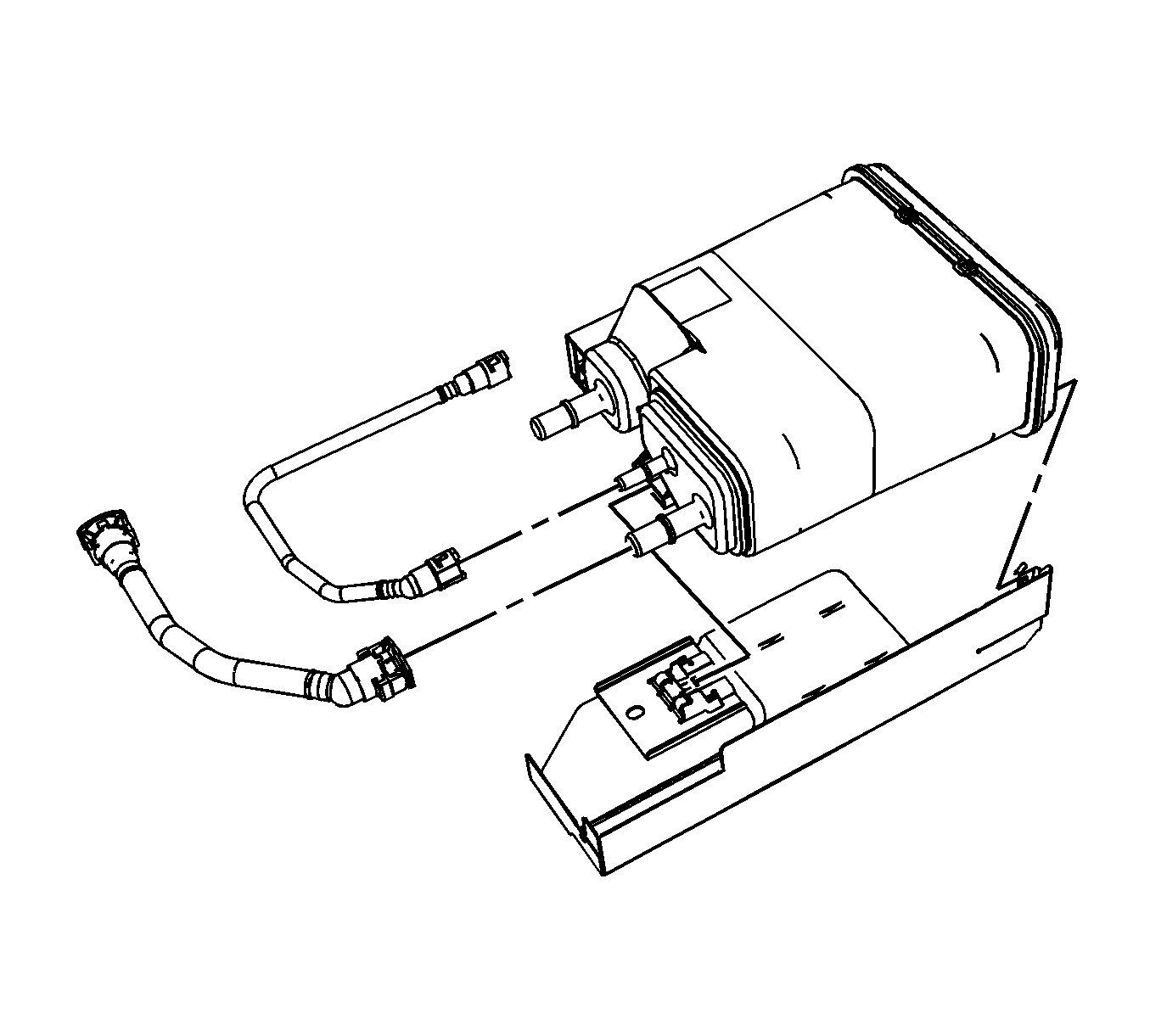

    Fig 1: EVAP Canister & Shield
    GM1855653Courtesy of GENERAL MOTORS CORP.
  1. If replacing the EVAP canister perform the following steps, otherwise proceed to step 4.
  2. Connect the EVAP canister pipes to the canister. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the EVAP canister to the shield.

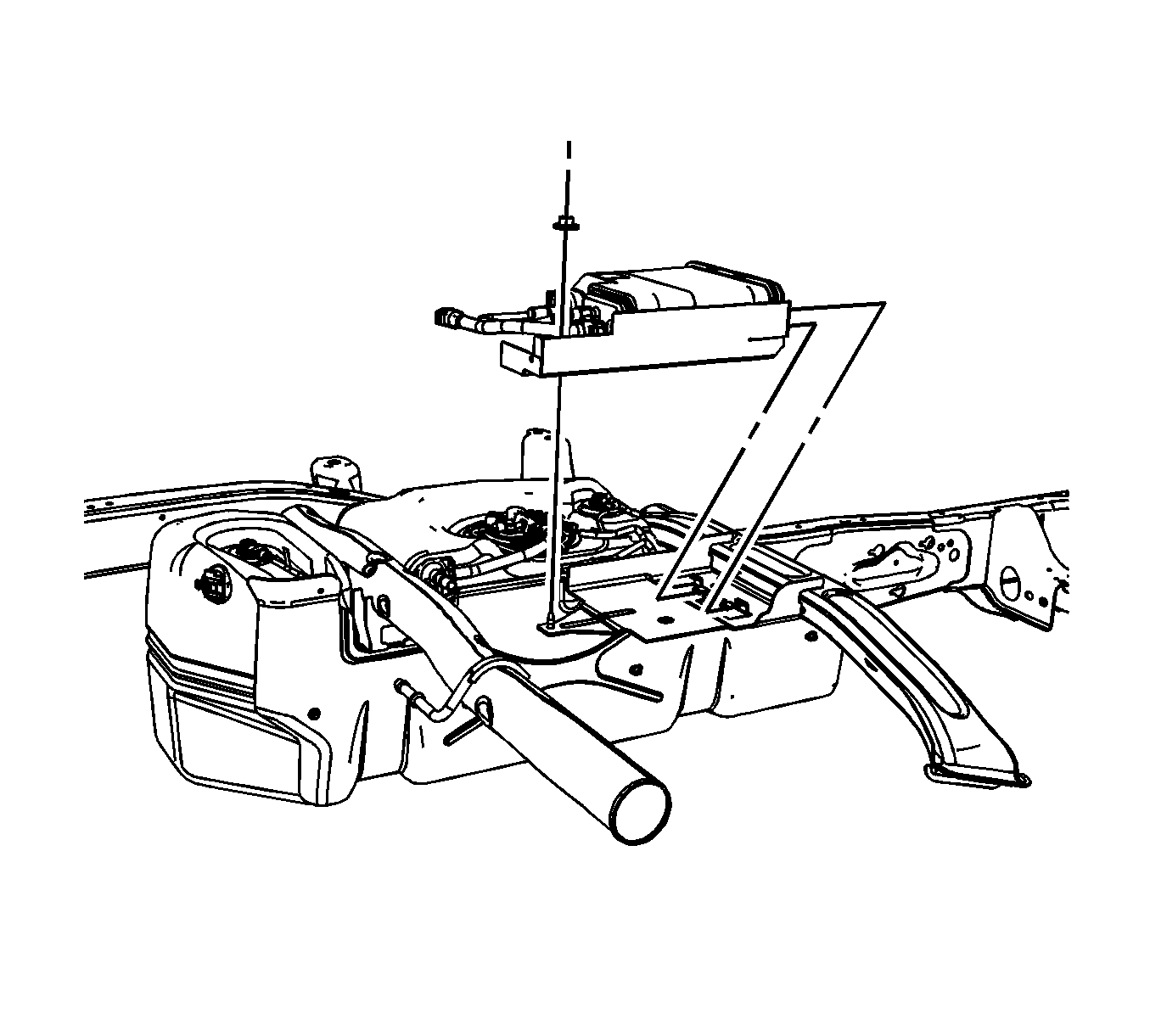

    4. Fig 2: EVAP Canister & Nut
    GM1855652Courtesy of GENERAL MOTORS CORP.
  4. Install the EVAP canister assembly.
    5. CAUTION: Refer to Fastener Caution .
  5. Install the EVAP canister nut.

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

    6. Fig 3: Solenoid Pipe Clip, Canister Pipe Quick Connect Fitting & Canister Vent Solenoid Pipe Quick Connect Fitting
    GM1854542Courtesy of GENERAL MOTORS CORP.
  6. Connect the EVAP canister pipe quick connect fitting (4) to the fuel tank EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Connect the EVAP canister vent solenoid pipe quick connect fitting (3) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  8. Connect the EVAP canister pipe quick connect fitting (2) to the fuel tank EVAP pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  9. Lower the vehicle.
