Wiper/Washer Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

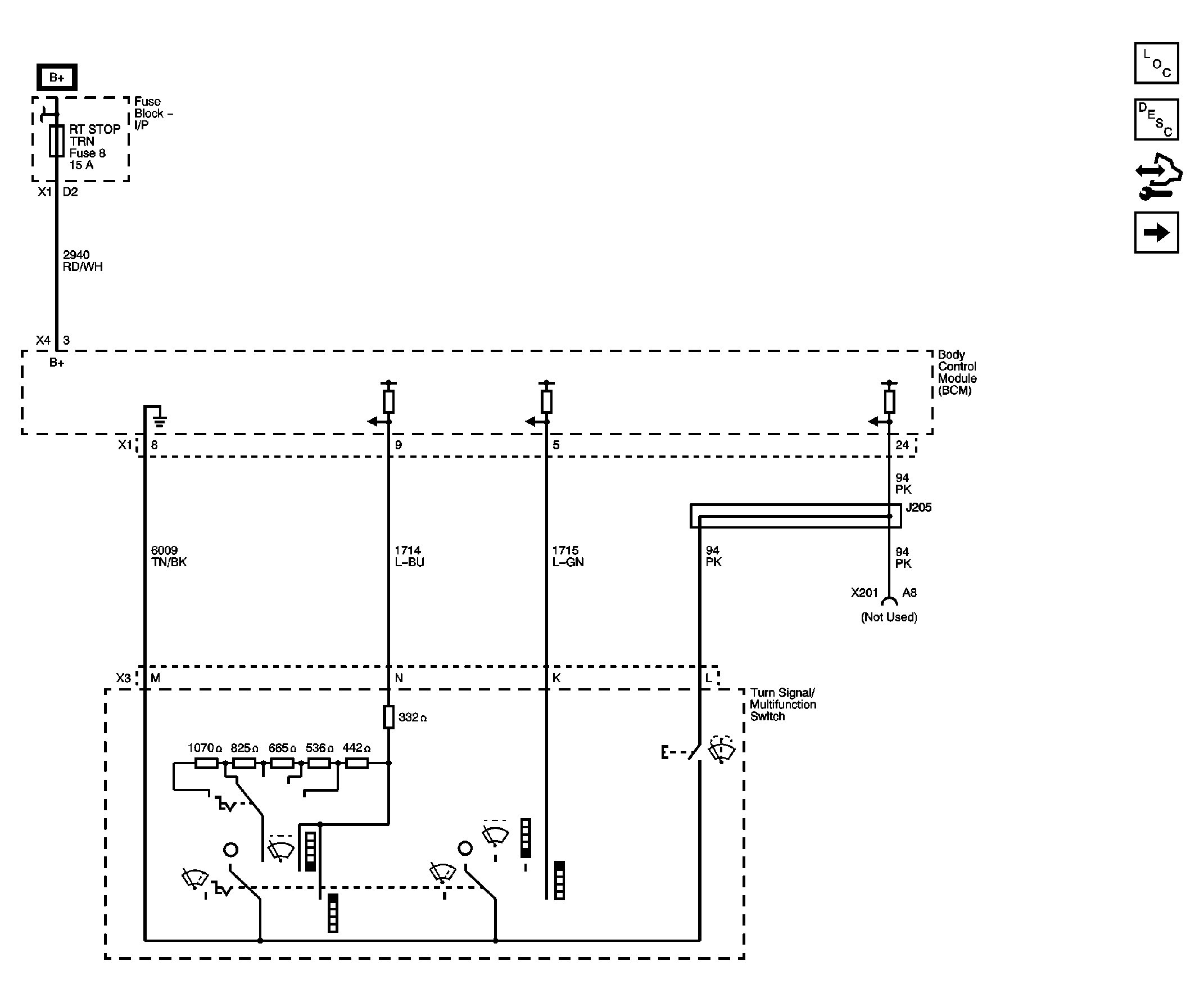

Fig 1: Wiper Controls
GM2223982Courtesy of GENERAL MOTORS CORP.

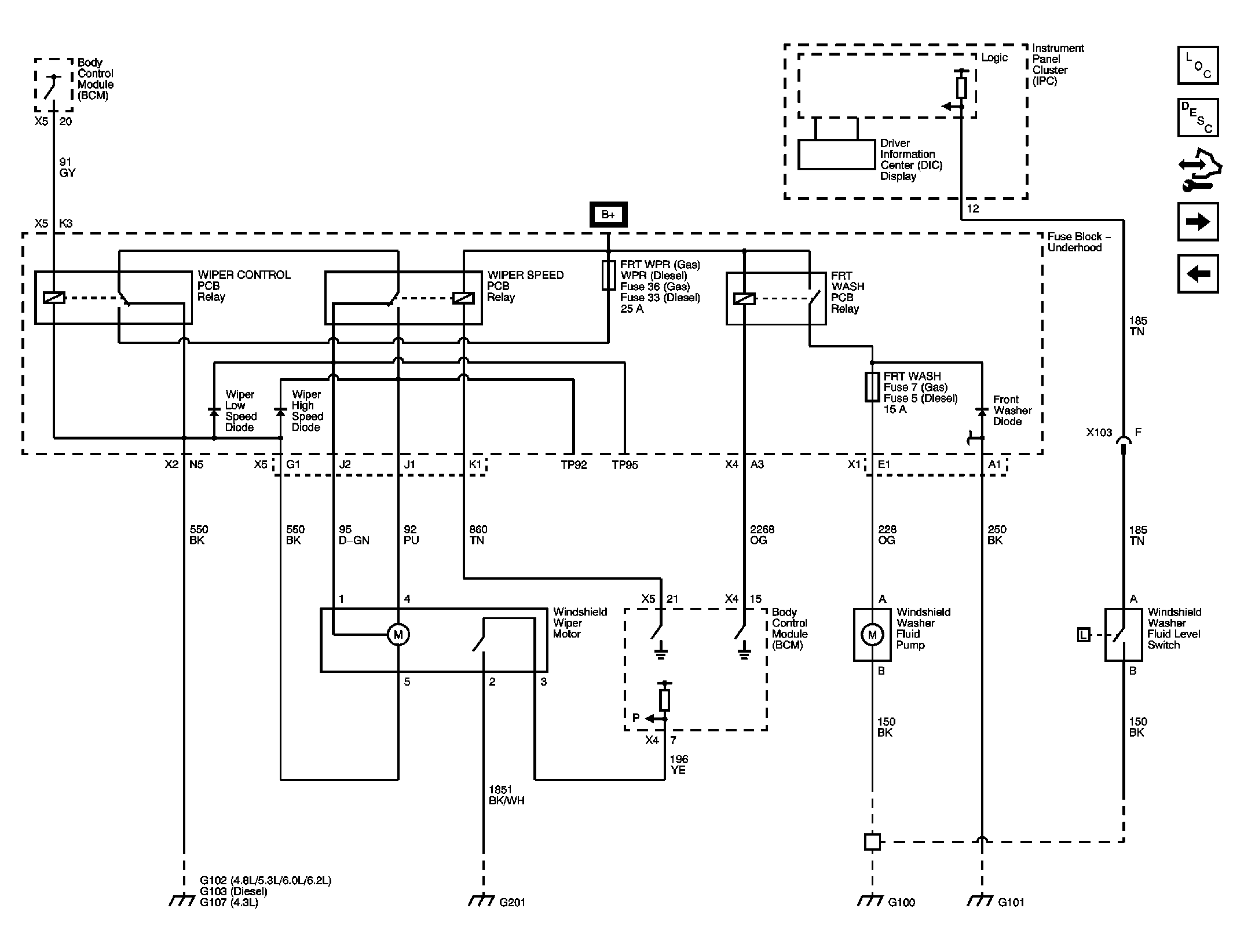

Fig 2: Wiper and Washer Motor Control
GM2223988Courtesy of GENERAL MOTORS CORP.
Fig 3: Outside Moisture Sensor (CE1)
GM2223992Courtesy of GENERAL MOTORS CORP.
