Rear Door Replacement (Extended Cab)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

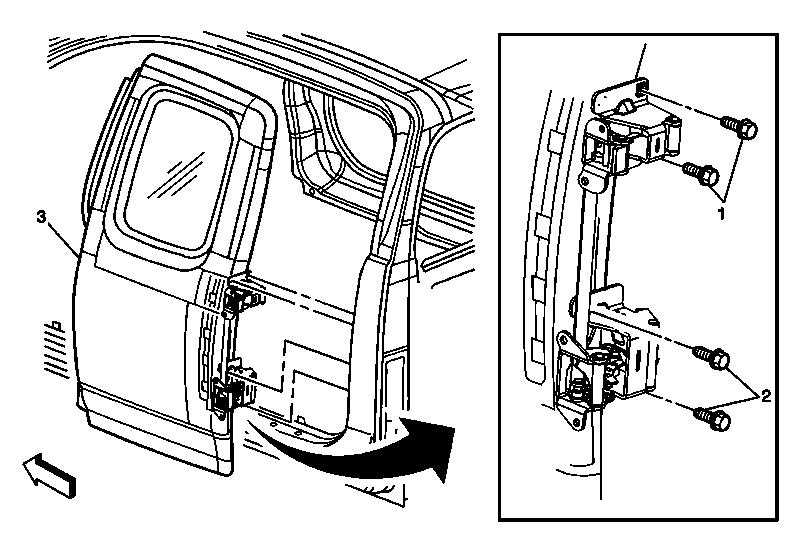

Fig 1: Rear Door (Extended Cab)
GM1829904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Refer to SIR Warning .

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling
  2. Remove the rear door trim panel. Refer to Rear Side Access Door Trim Panel Replacement
1 Rear Side Door Upper Hinge Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the water deflector.
  2. Support the door before removing the hinge bolts.
  3. Disconnect the electrical connector, if equipped.
  4. With the aid of an assistant, remove the door.

Tighten:  25 N.m (18 lb ft)
2 Rear Side Door Lower Hinge Bolt (Qty: 2)

Tighten:  25 N.m (18 lb ft)
3 Rear Side Door
Procedure:
When replacing the door it is necessary to transfer all of the internal components.
