Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

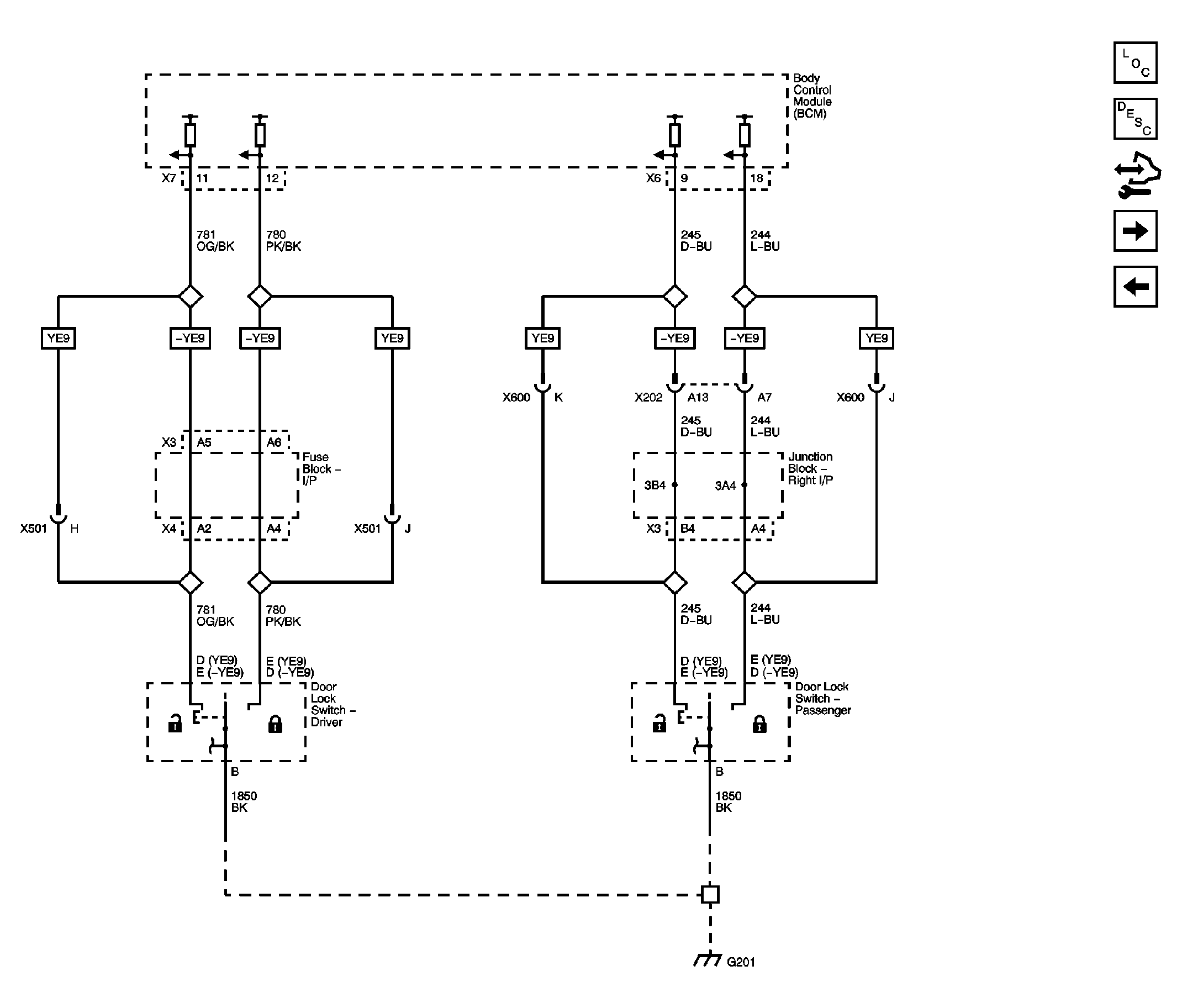

Fig 1: Door Lock Controls and Front Door Locks (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

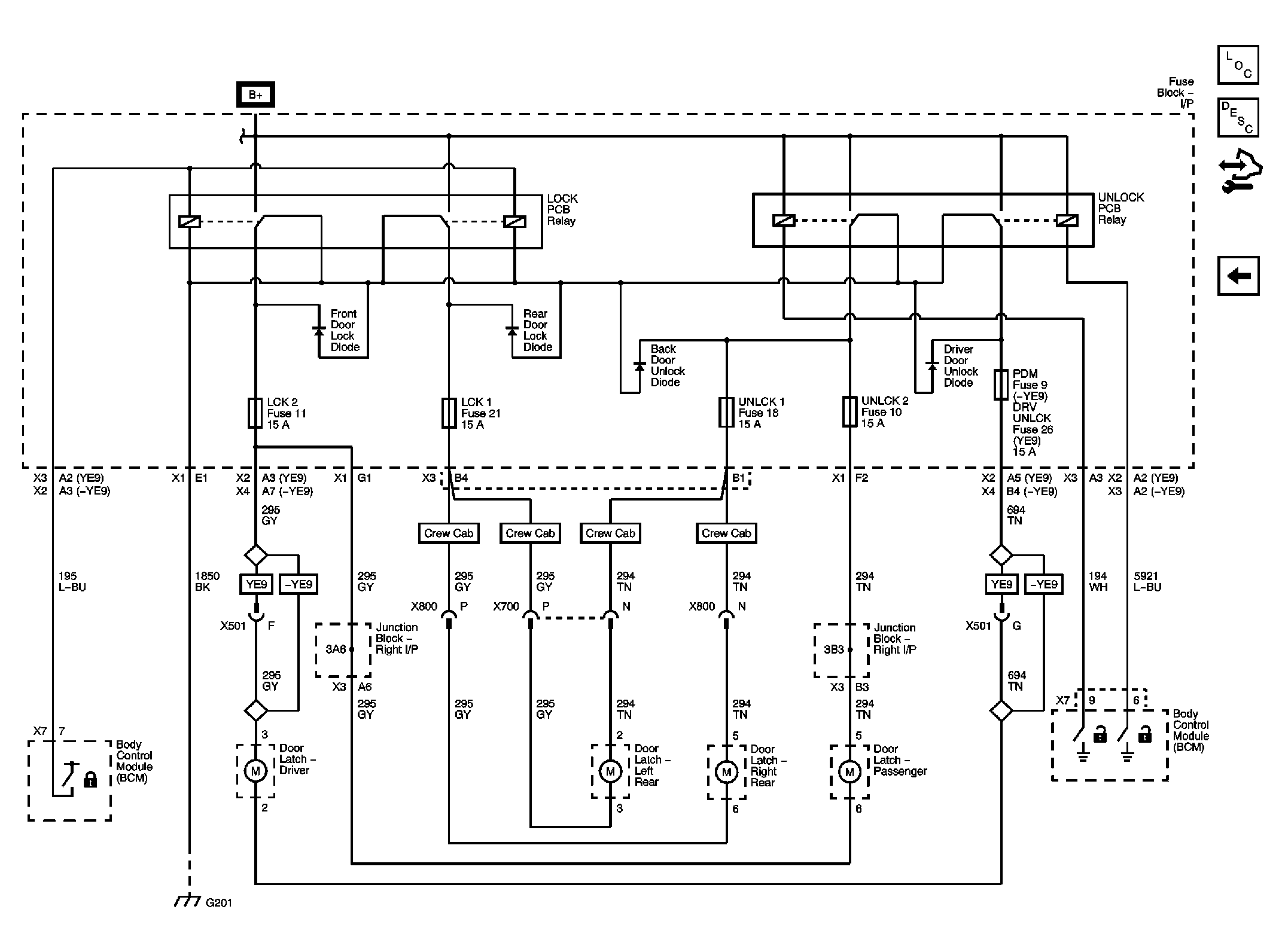

Fig 2: Rear Door Locks (Crew Cab with AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Locks Controls (AU3 without AN3/DL3))

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Locks Motors (AU3 without AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
