Starting and Charging Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

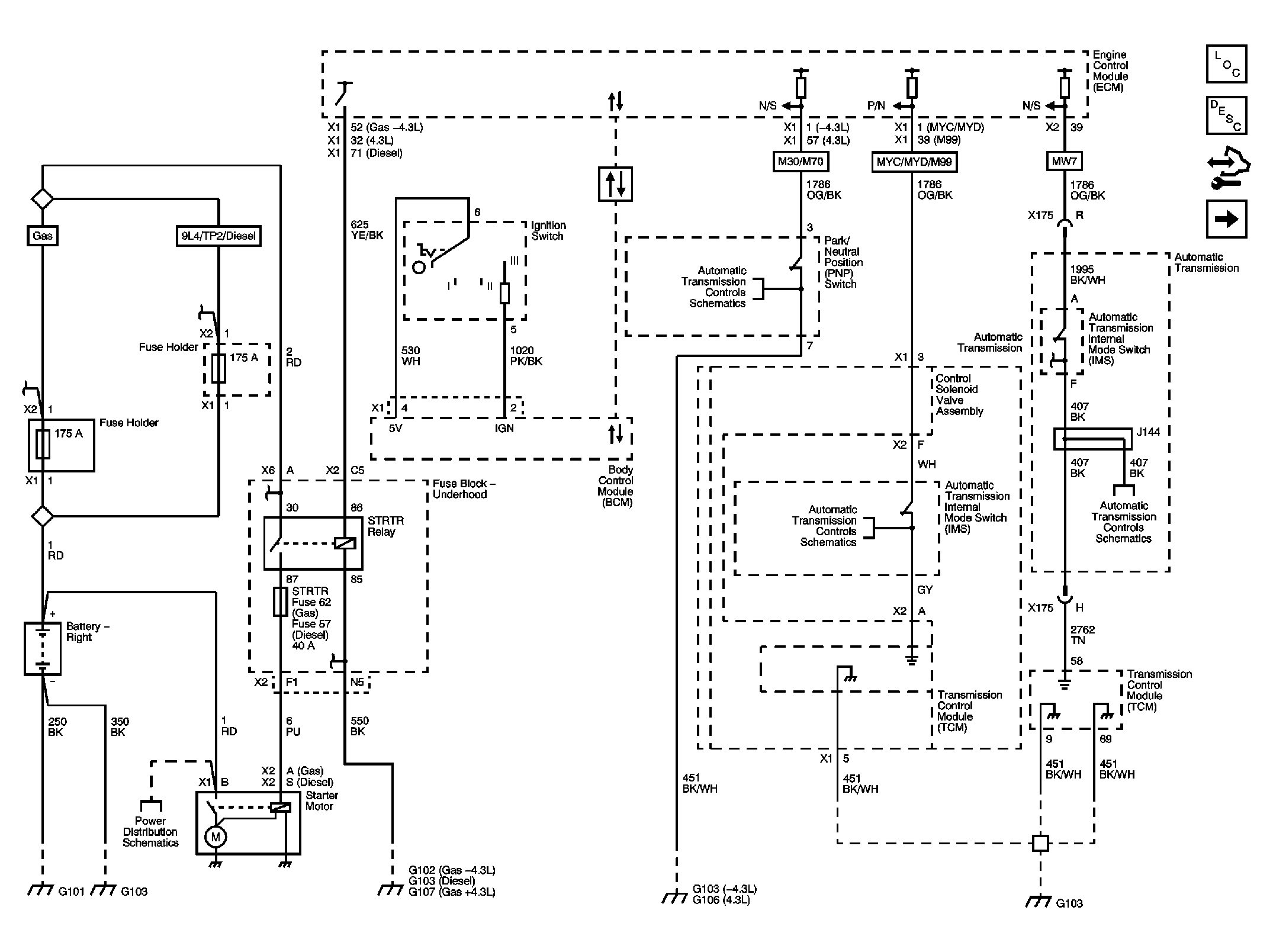

Fig 1: Starting
GM2224161Courtesy of GENERAL MOTORS CORP.

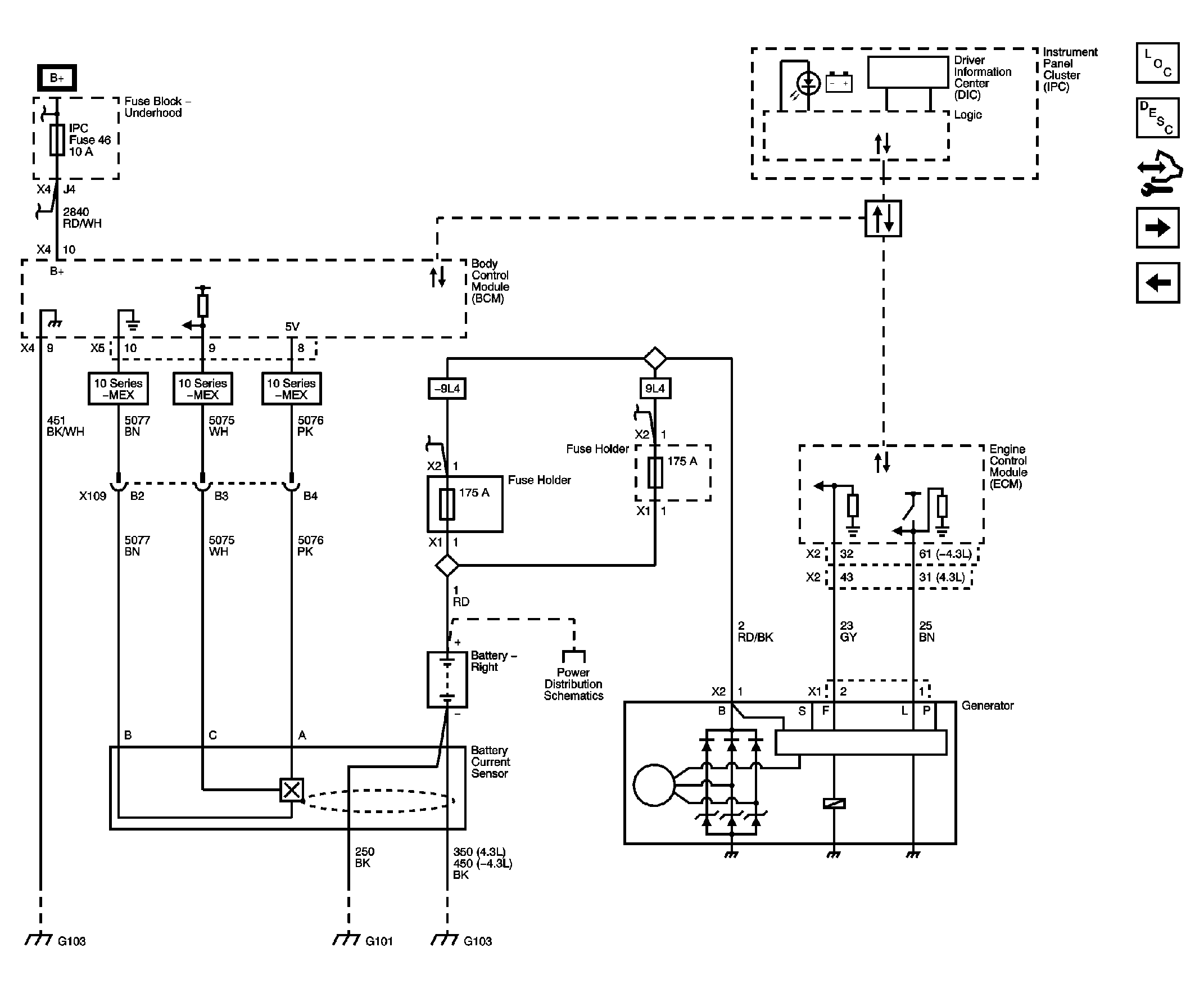

Fig 2: Charging (Gas)
GM2224162Courtesy of GENERAL MOTORS CORP.

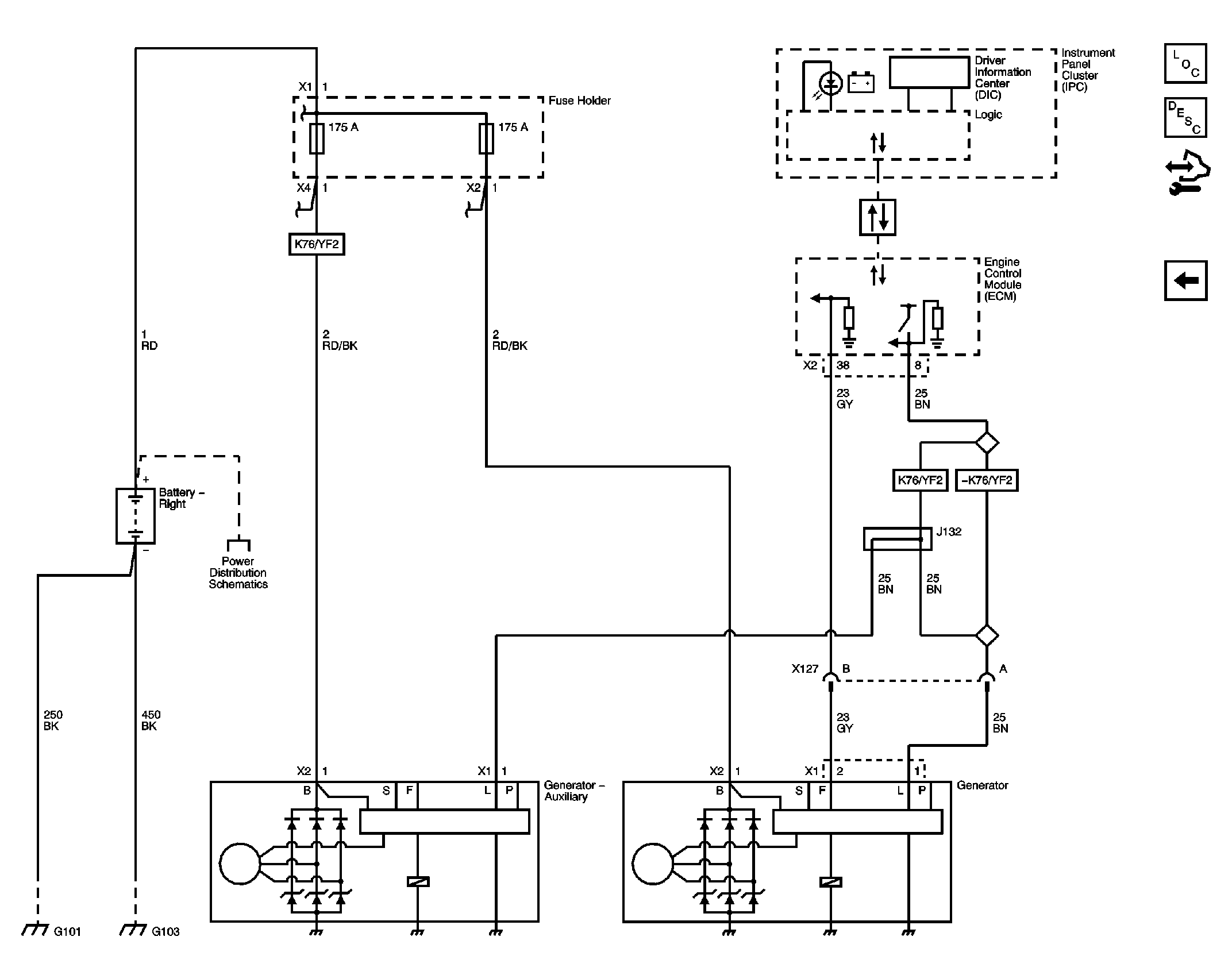

Fig 3: Charging (Diesel)
GM2224163Courtesy of GENERAL MOTORS CORP.
