Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

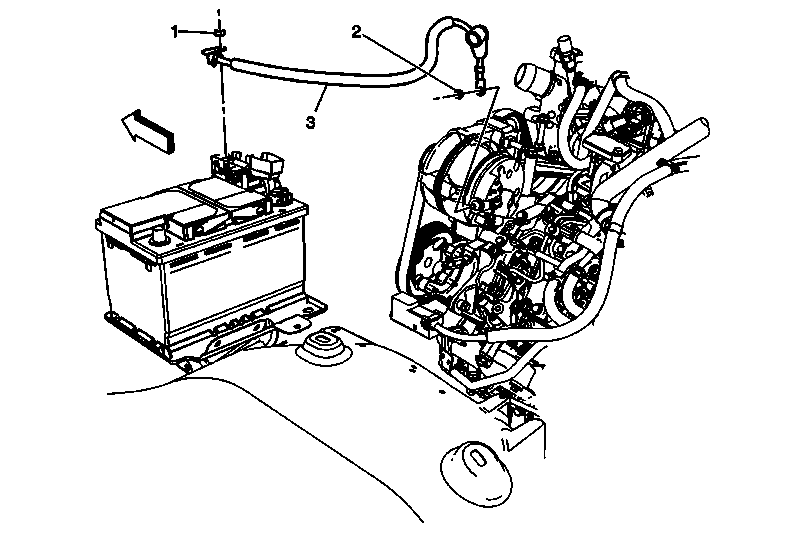

Fig 1: Mega Fuse Nut

Courtesy of GENERAL MOTORS CORP.

If equipped with dual generators,connect the generator jumper cable (3) to the mega fuse holder with the nut (1) and tighten to 9 N.m (80 lb in)

Fig 2: Auxilliary Battery Positive Cable Components

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the auxilliary battery positive clamp to the battery post and tighten clamp nut (1) to 9 N.m (80 lb in)
Install the auxilliary battery positive cable retainers (2) along the cooling fan shroud.

Fig 3: Auxilliary Battery Positive Harness Clips

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary battery positive cable clips (1) to the condensor hose and the transmission cooler hose.

Fig 4: Mega Fuse Block Nut & The Auxillary Battery Positive Cable Terminal

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary battery positive cable terminal (2) to the mega fuse block and tighten the nut (1) to 9 N.m (80 lb in)
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) or Battery Negative Cable Disconnection and Connection (Dual Batteries) or Battery Negative Cable Disconnection and Connection (Auxiliary Battery) .
