Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

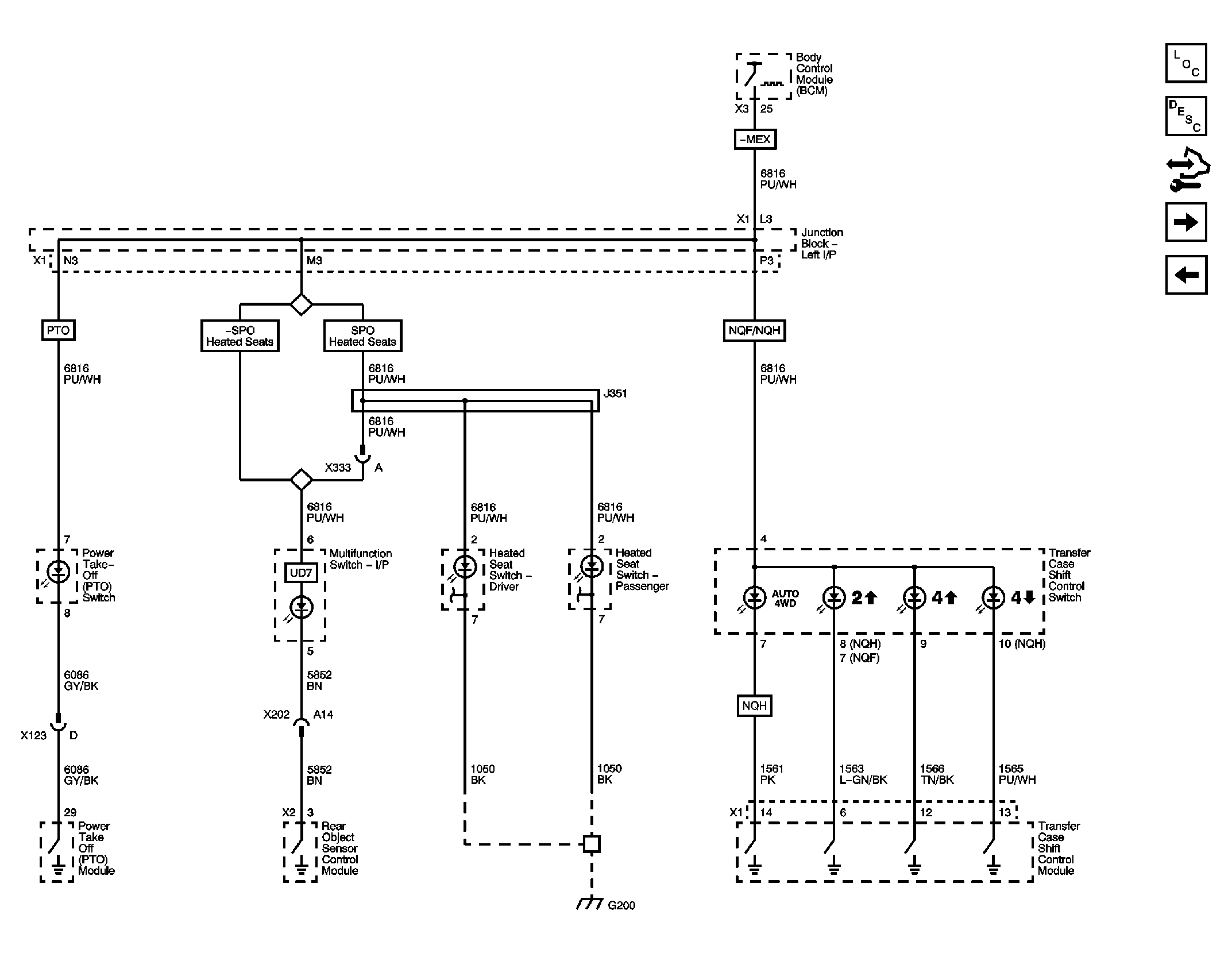

Fig 1: Dimming Control and LED Dimming 1 of 3

Courtesy of GENERAL MOTORS CORP.

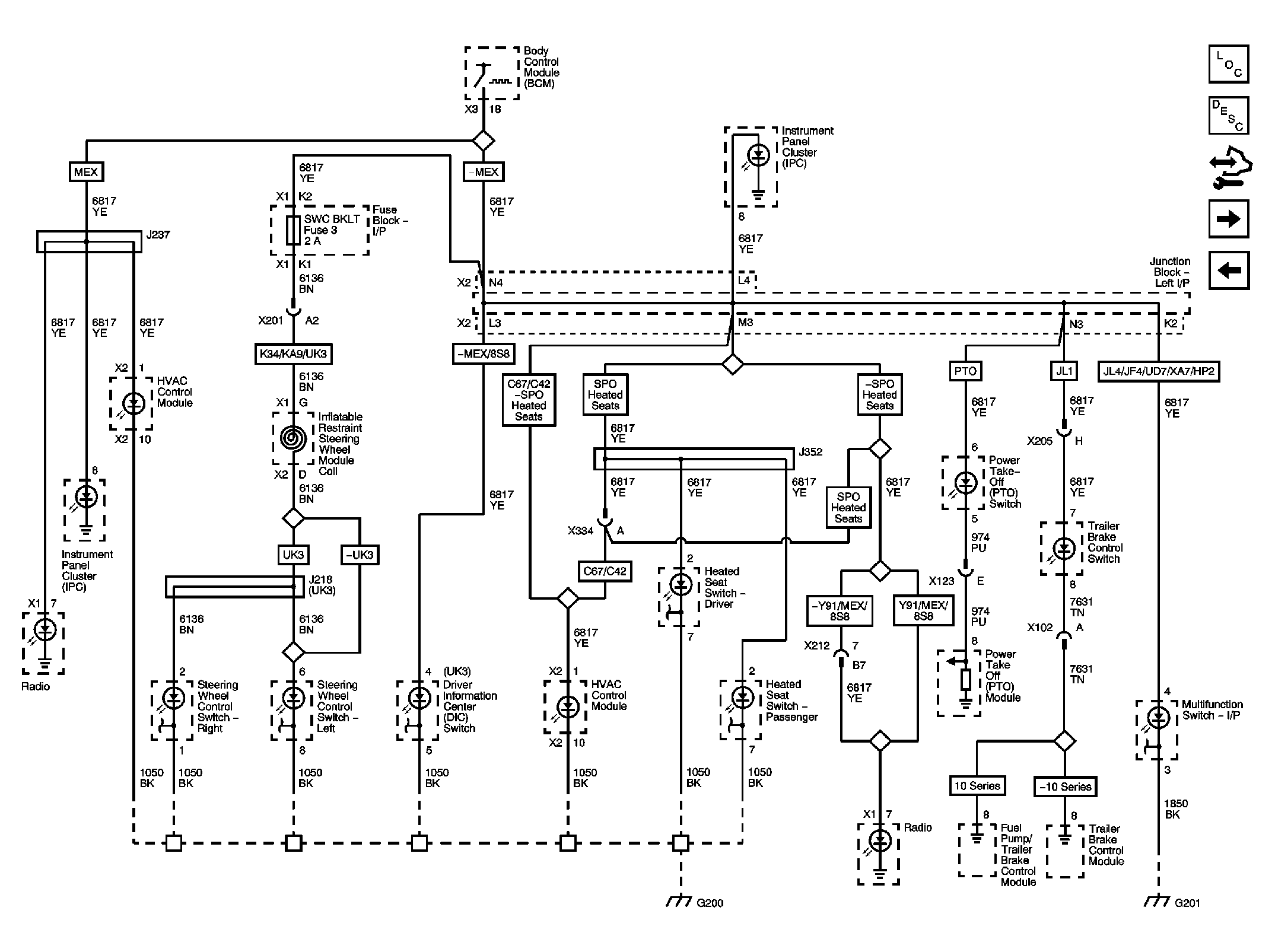

Fig 2: LED Dimming 2 of 3

Courtesy of GENERAL MOTORS CORP.

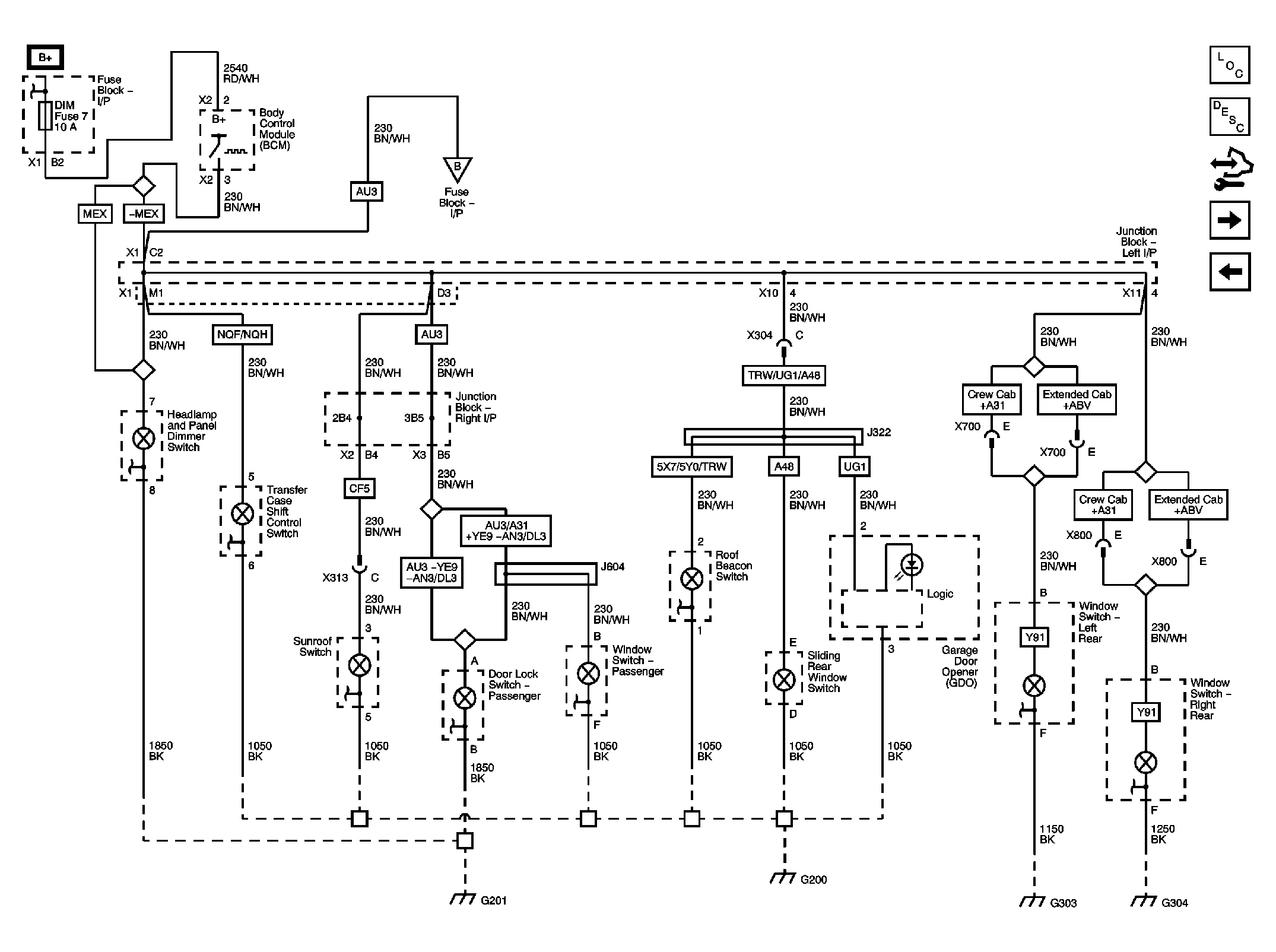

Fig 3: LED Dimming 3 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 4: I/P Bulb Dimming 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: I/P Bulb Dimming 2 of 2

Courtesy of GENERAL MOTORS CORP.
