Exterior Lights Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

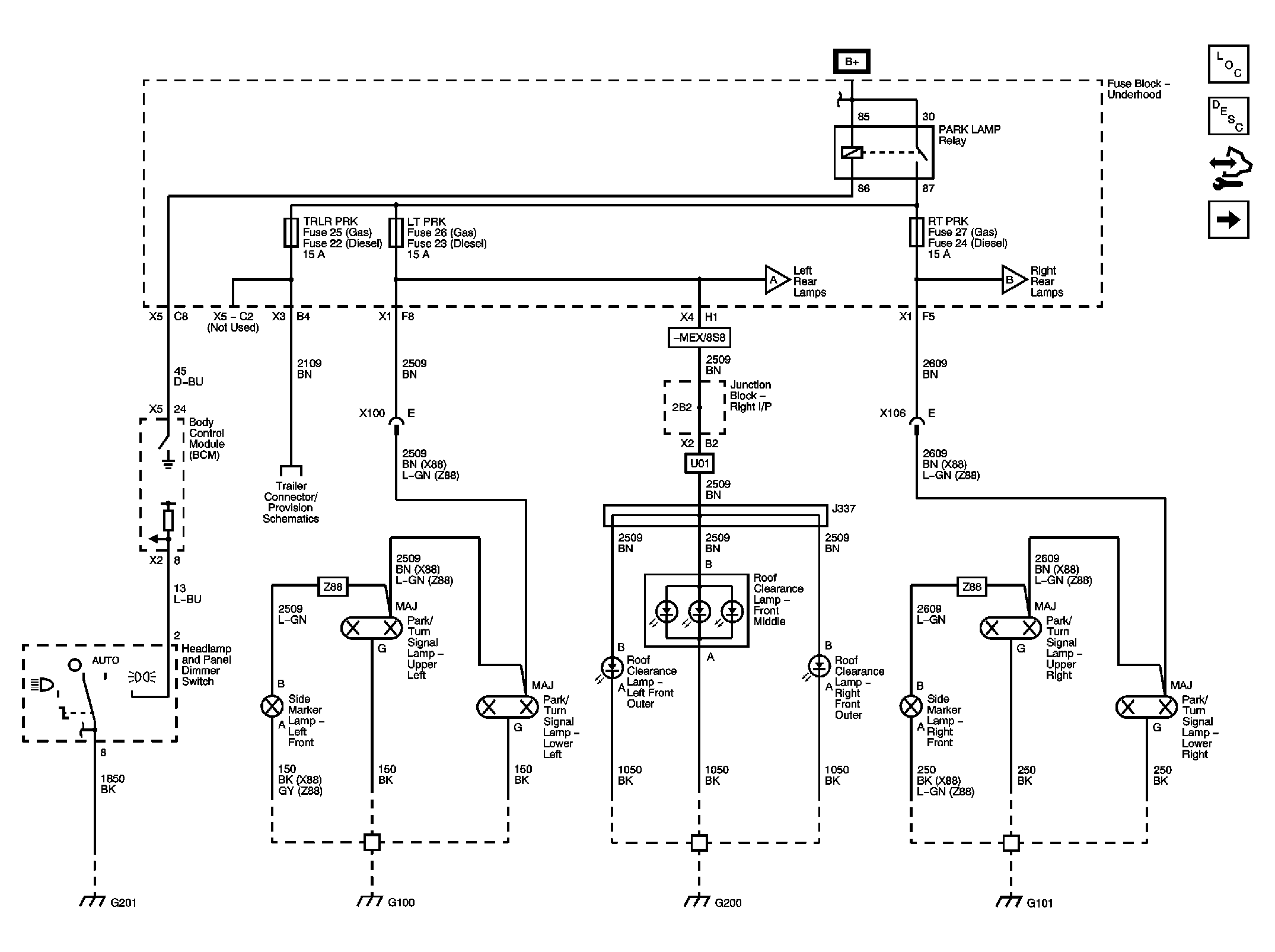

Fig 1: Park Lamp Controls and Front Park Lamps

GM2223648

Courtesy of GENERAL MOTORS CORP.

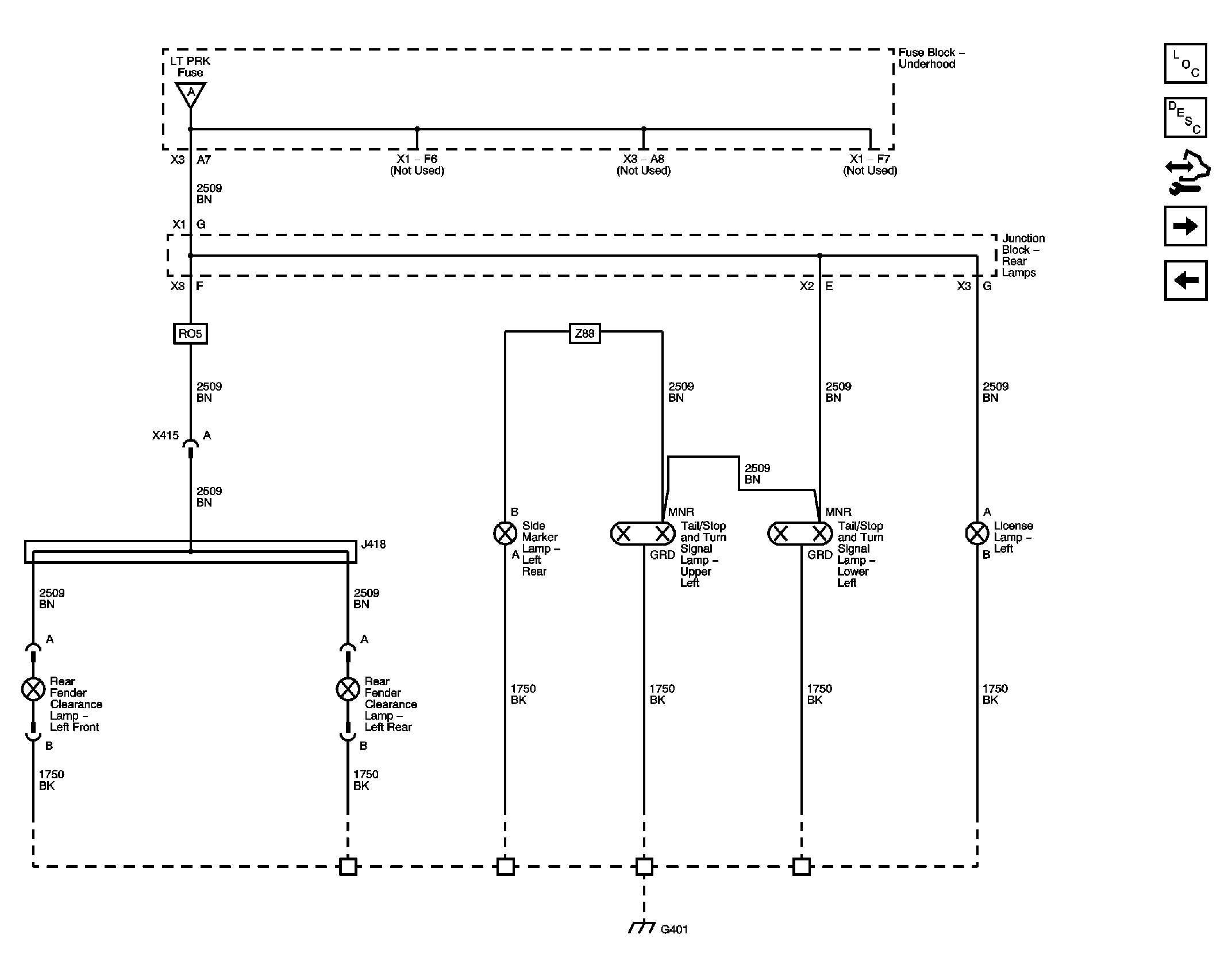

Fig 2: Left Rear Park Lamps

GM2223651

Courtesy of GENERAL MOTORS CORP.

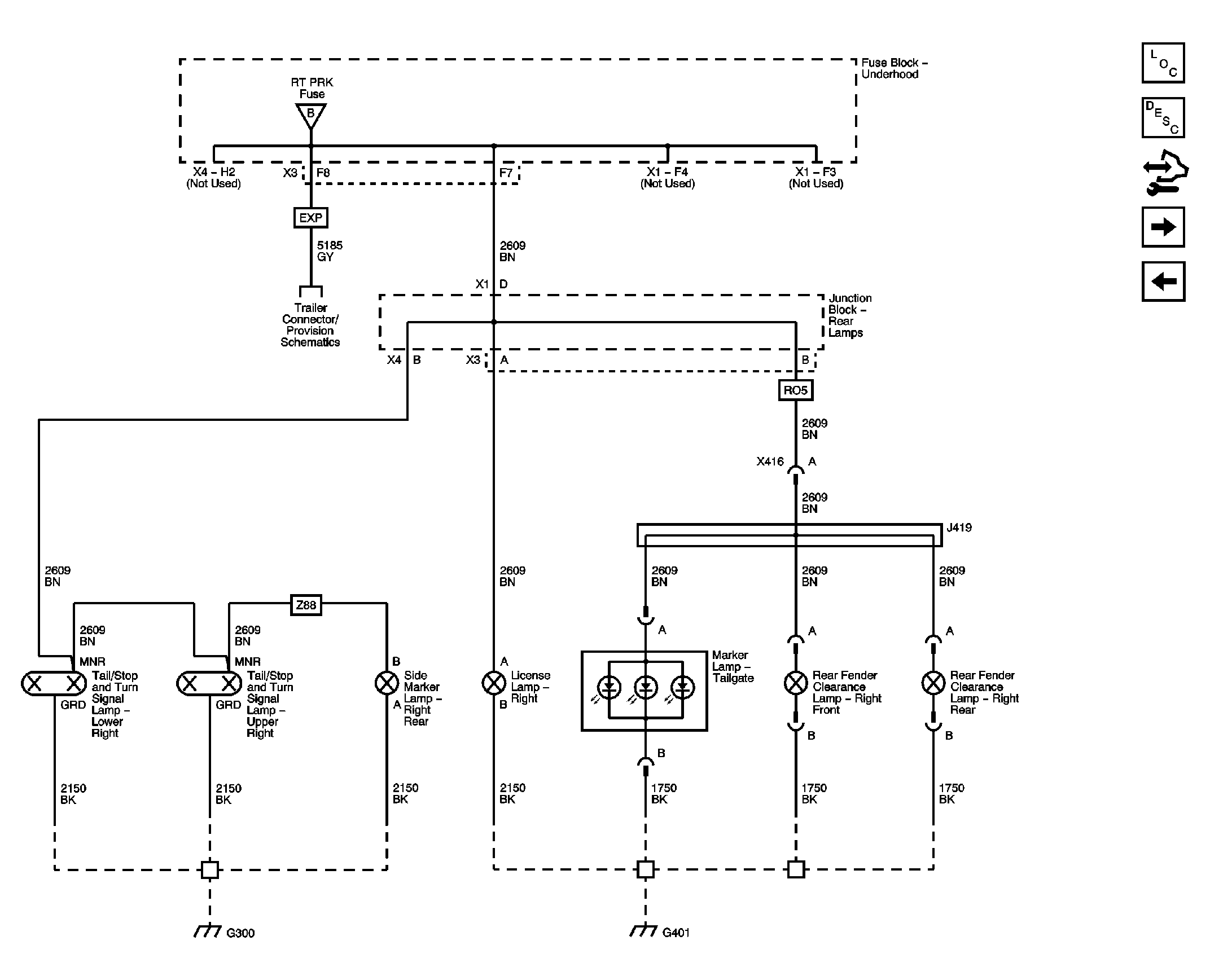

Fig 3: Right Rear Park Lamps

GM2223653

Courtesy of GENERAL MOTORS CORP.

Fig 4: Exterior Illumination Lamps (DL3/DR4)

GM2223656

Courtesy of GENERAL MOTORS CORP.

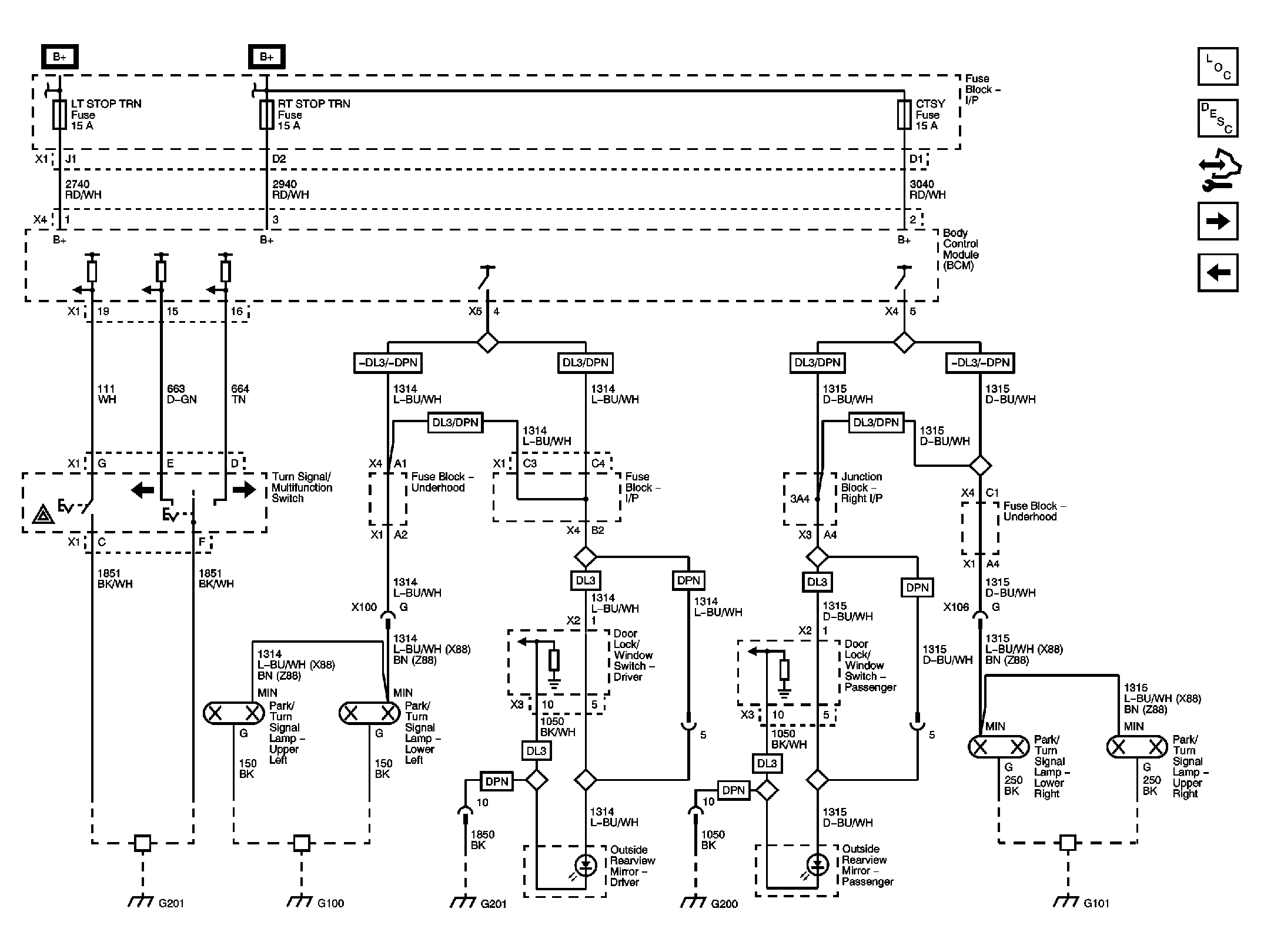

Fig 5: Turn Signal Controls and Front Turn Signal Lamps

GM2223657

Courtesy of GENERAL MOTORS CORP.

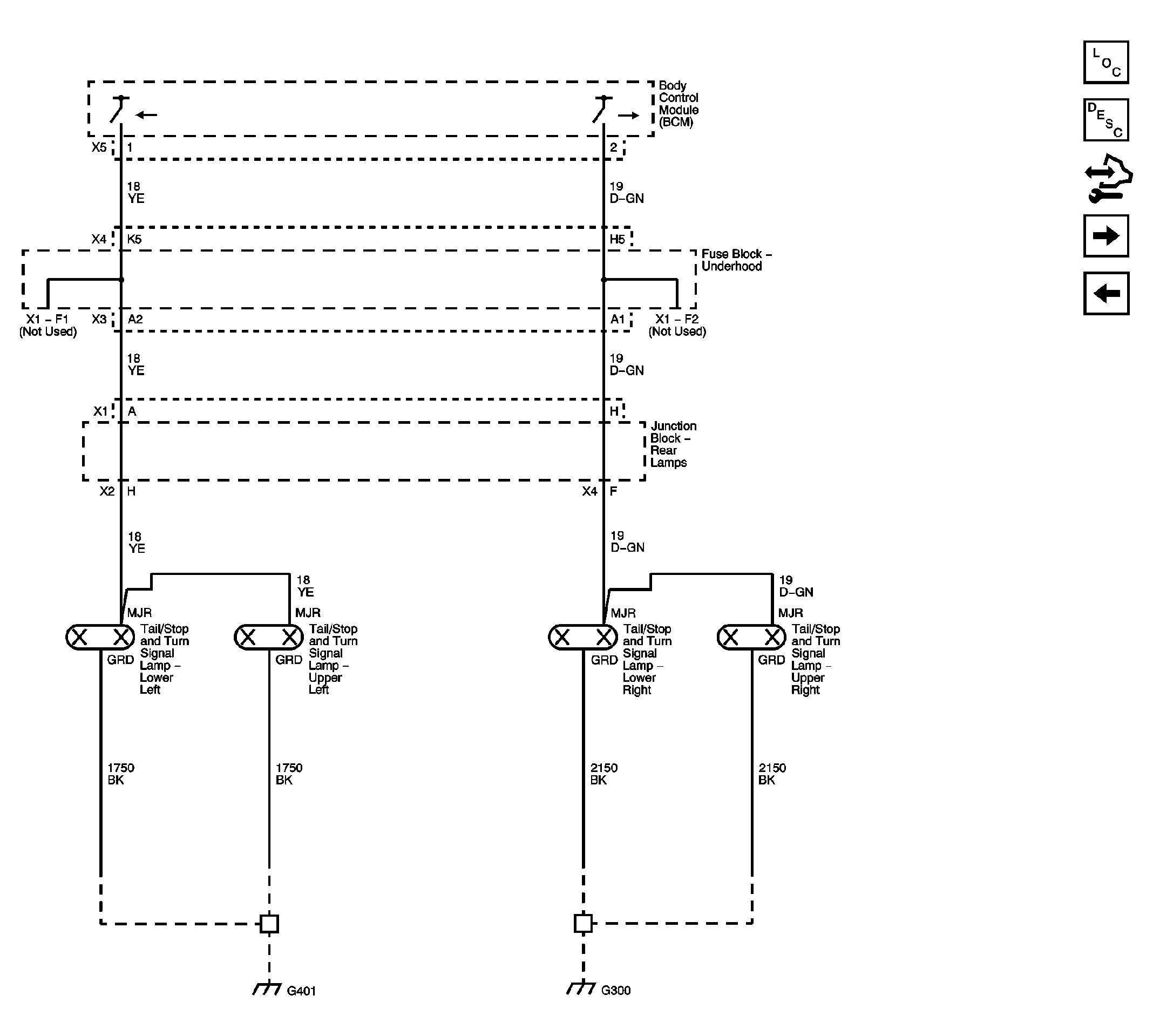

Fig 6: Rear Stop/Turn Signal Lamps

GM2223660

Courtesy of GENERAL MOTORS CORP.

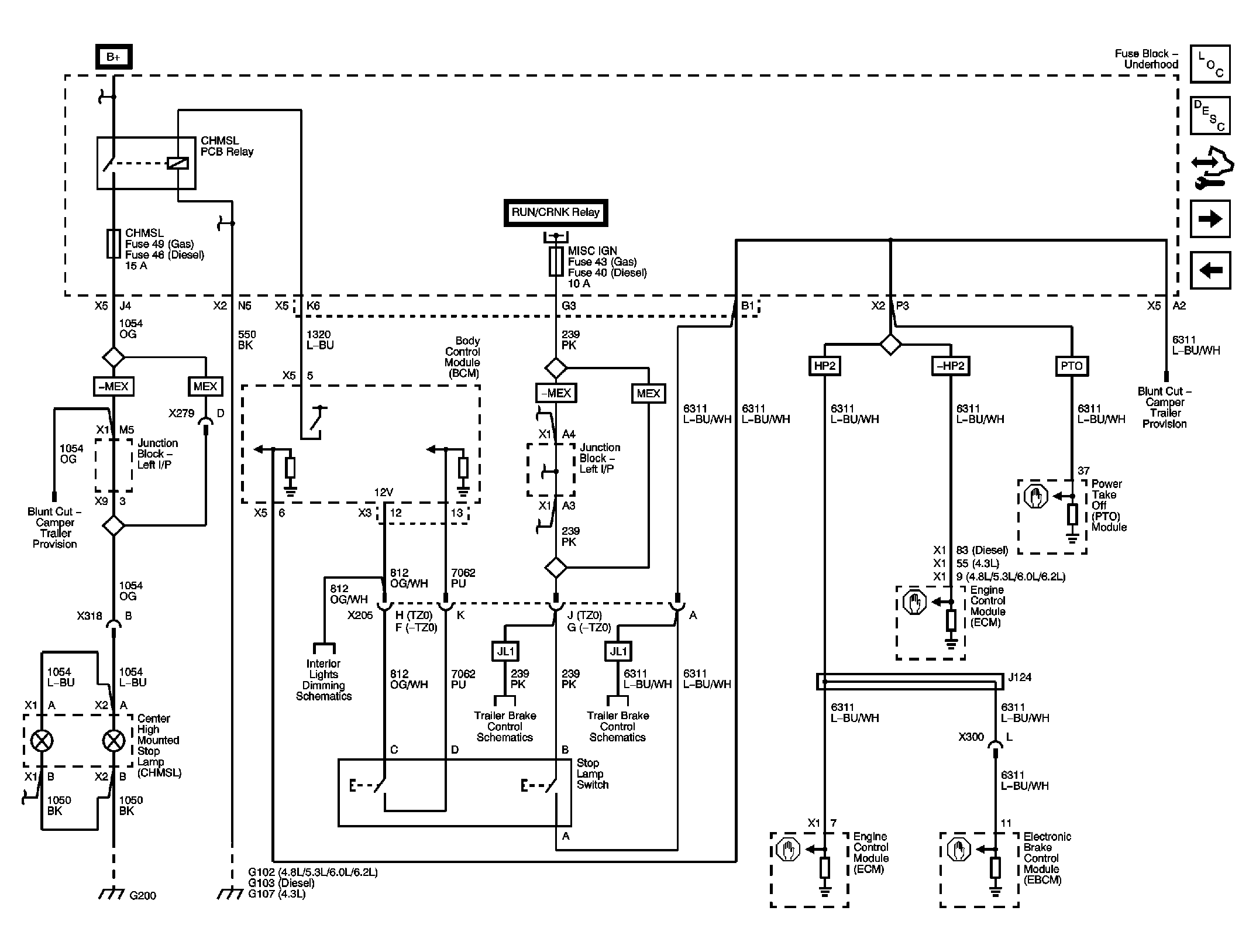

Fig 7: Stop Signal Controls and CHMSL

GM2223661

Courtesy of GENERAL MOTORS CORP.

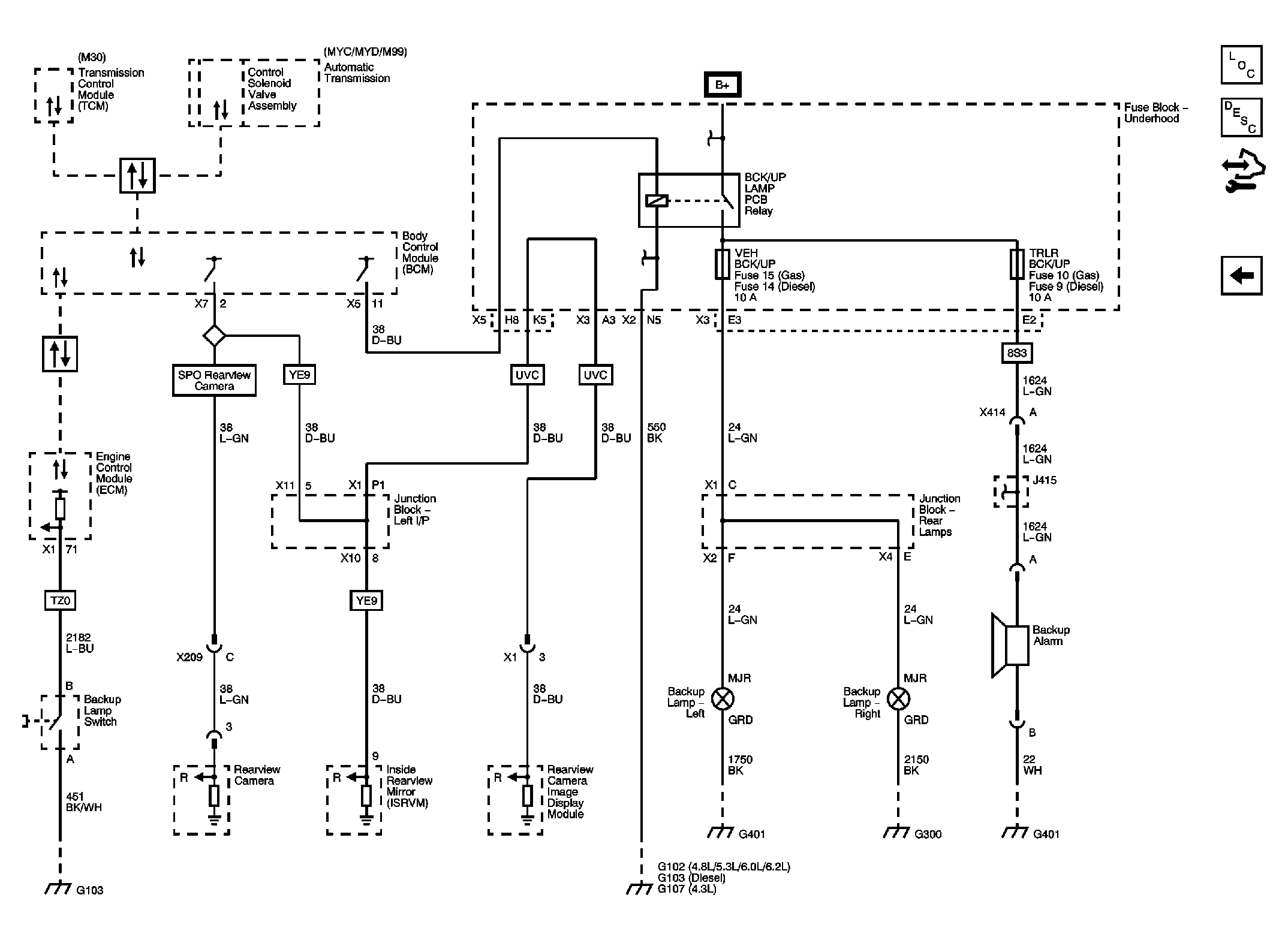

Fig 8: Backup Lamps and Backup Alarm

GM2223664

Courtesy of GENERAL MOTORS CORP.
