Body Rear Panel Insulator Replacement (Extended Cab/Crew Cab)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

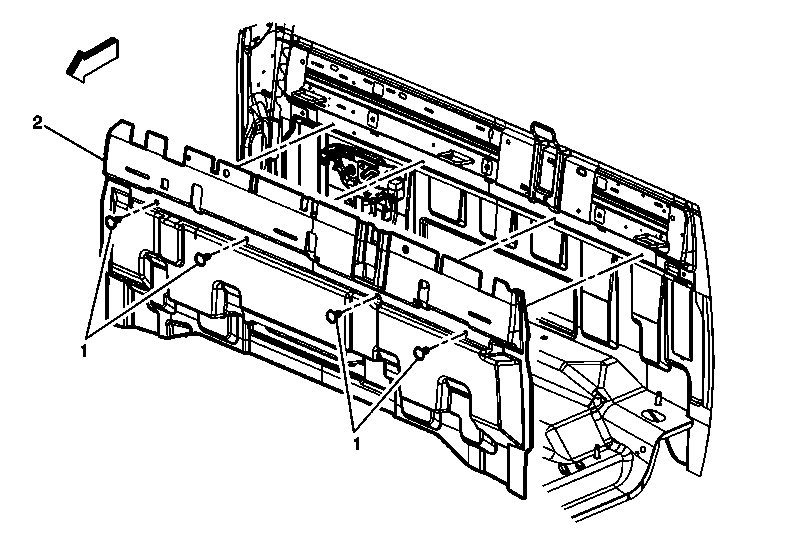

Fig 1: Body Rear Panel Insulator (Extended Cab/Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seats. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) . Remove the jack stowage cover. Refer to Jack Stowage Cover Replacement . Remove the rear window lower trim. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) or Rear Window Lower Garnish Molding Replacement (Regular Cab) . Remove the rear side door sill plates. Refer to Rear Side Door Sill Trim Plate Replacement (Crew Cab) or Rear Side Door Sill Trim Plate Replacement (Extended Cab) . Remove the rear seat shoulder belt retractor. Refer to Rear Seat Shoulder Belt Retractor Replacement (Crew Cab) or Rear Seat Shoulder Belt Retractor Replacement (Extended Cab) . Remove the driver and passenger body lock pillar garnish molding. Refer to Body Lock Pillar Trim Replacement (Crew Cab) or Body Lock Pillar Trim Replacement (Extended Cab) or Body Lock Pillar Trim Replacement (Regular Cab) .
1	Body Rear Panel Insulator Retainer (Qty: 4)
2	Body Rear Panel Insulator

Callout

Component Name

Preliminary Procedure

Remove the rear seats. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) .
Remove the jack stowage cover. Refer to Jack Stowage Cover Replacement .
Remove the rear window lower trim. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) or Rear Window Lower Garnish Molding Replacement (Regular Cab) .
Remove the rear side door sill plates. Refer to Rear Side Door Sill Trim Plate Replacement (Crew Cab) or Rear Side Door Sill Trim Plate Replacement (Extended Cab) .
Remove the rear seat shoulder belt retractor. Refer to Rear Seat Shoulder Belt Retractor Replacement (Crew Cab) or Rear Seat Shoulder Belt Retractor Replacement (Extended Cab) .
Remove the driver and passenger body lock pillar garnish molding. Refer to Body Lock Pillar Trim Replacement (Crew Cab) or Body Lock Pillar Trim Replacement (Extended Cab) or Body Lock Pillar Trim Replacement (Regular Cab) .

Body Rear Panel Insulator Retainer (Qty: 4)

Body Rear Panel Insulator
