Rear Seat Latch Replacement (Extended Cab with A68)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

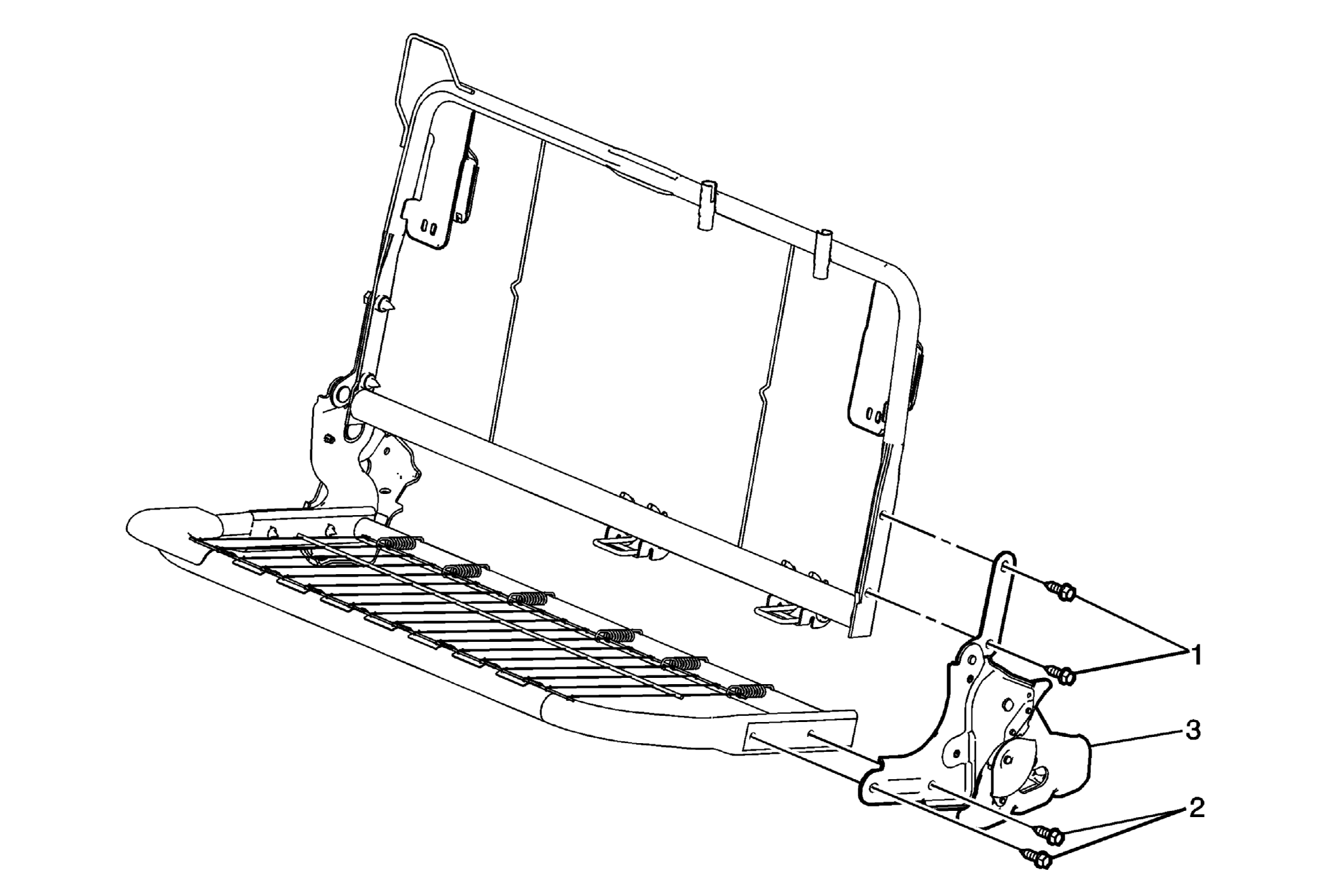

Fig 1: Rear Seat Latch (Extended Cab With A68)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) . Separate the rear split bench seat. Refer to Rear Seat Separation (Extended Cab With A68) . Remove the rear seat cushion side outer cover. Refer to Rear Seat Cushion Outer Trim Panel Replacement (Extended Cab) or Rear Seat Cushion Outer Trim Panel Replacement (Crew Cab) . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with A68) or Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Back Cushion Cover and Pad Replacement (Crew Cab with A68) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Extended Cab with A68) or Rear Seat Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Cushion Cover and Pad Replacement (Crew Cab with A68) .
1	Rear Seat Back Cushion Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb ft)
2	Rear Seat Cushion Frame Bolt (Qty: 2) Tighten: 9 N.m (80 lb ft)
3	Rear Seat Latch (Qty: 2) Tip: 60 percent seat shown, 40 percent seat similar.
