Engine Cooling System Wiring Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

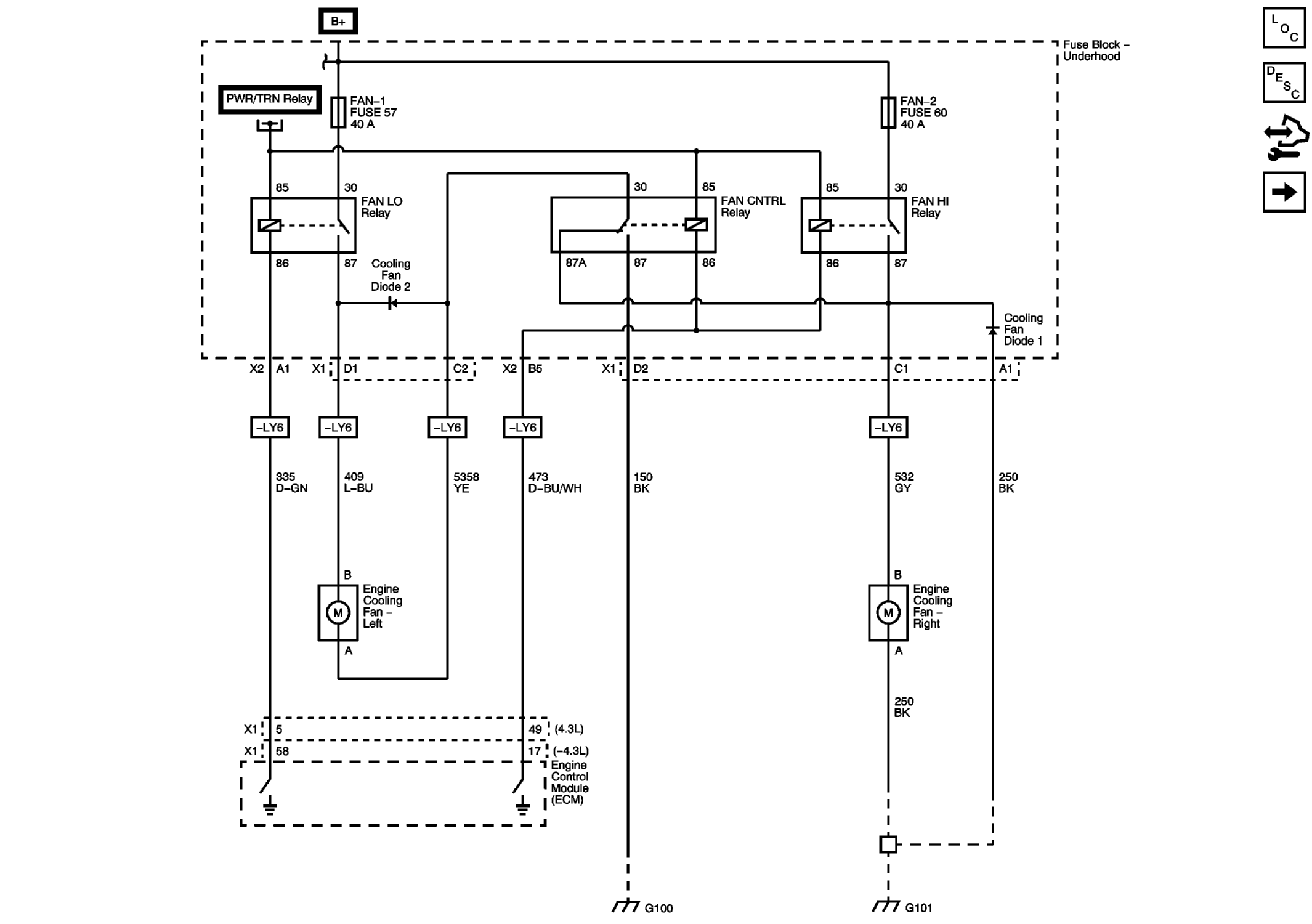

Fig 1: Gas (except HP2)
GM2224154Courtesy of GENERAL MOTORS CORP.

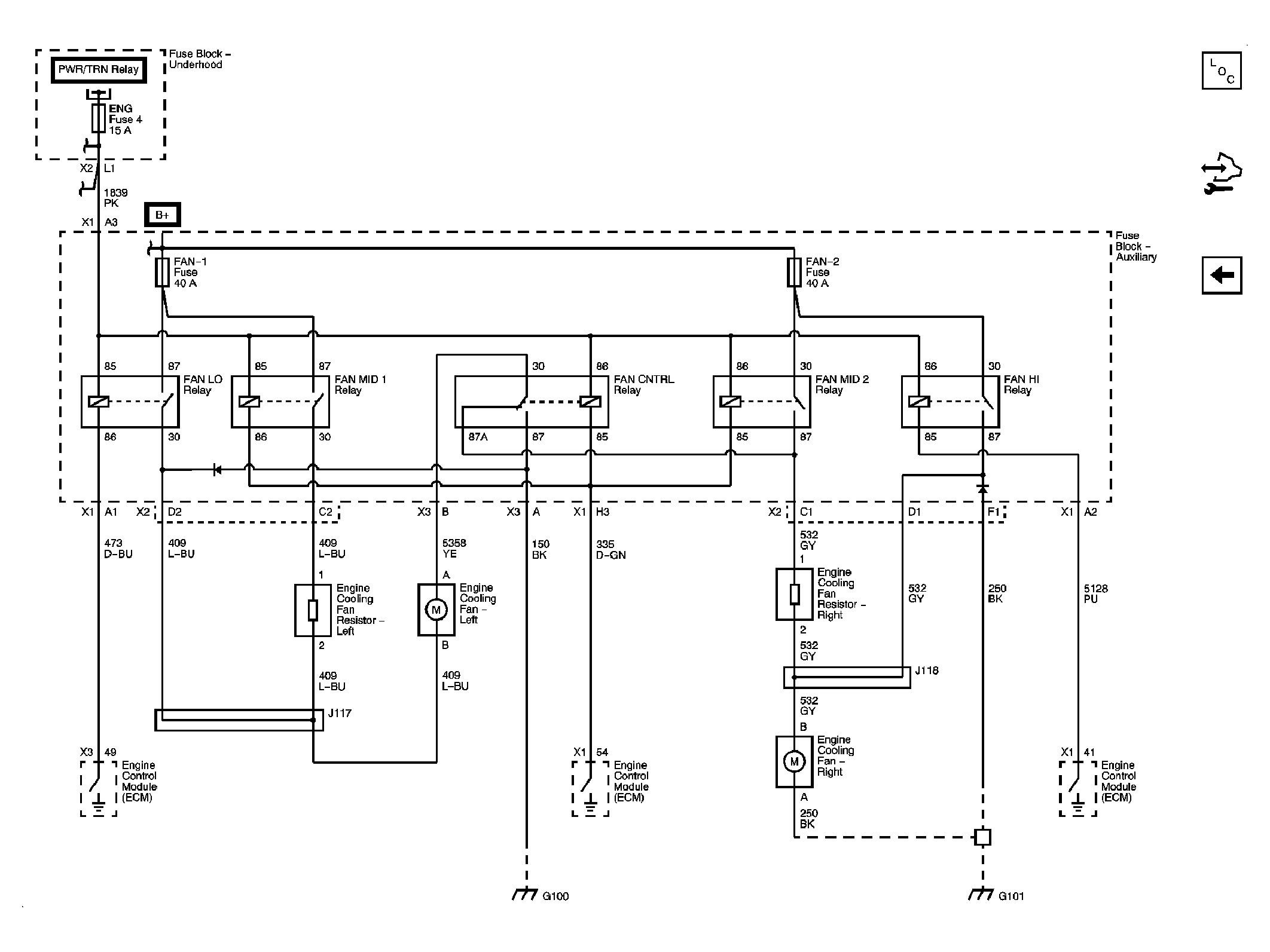

Fig 2: Gas (HP2)
GM2224156Courtesy of GENERAL MOTORS CORP.
Fig 3: Diesel
GM2224157Courtesy of GENERAL MOTORS CORP.
