Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Turbocharger Bypass Valve & Washer
    GM687052Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the turbocharger bypass valve and washer.

    Tighten:  Tighten the valve to 60 N.m (44 lb ft).

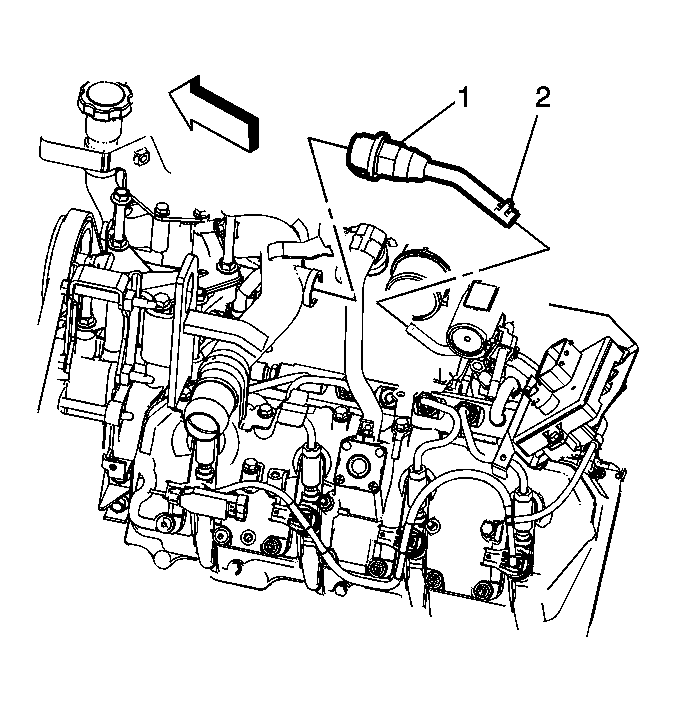

    2. Fig 2: Turbocharger Bypass Valve And Coolant Inlet Hose Clamp
    GM2406312Courtesy of GENERAL MOTORS CORP.
  2. Connect the turbocharger coolant inlet hose to the turbocharger bypass valve (1).
  3. Position the coolant inlet hose clamp (2).
  4. Fill the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill)  or Cooling System Draining and Filling (Static Fill) .
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
