Radiator Grille Emblem/Nameplate Replacement (GMC HD)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

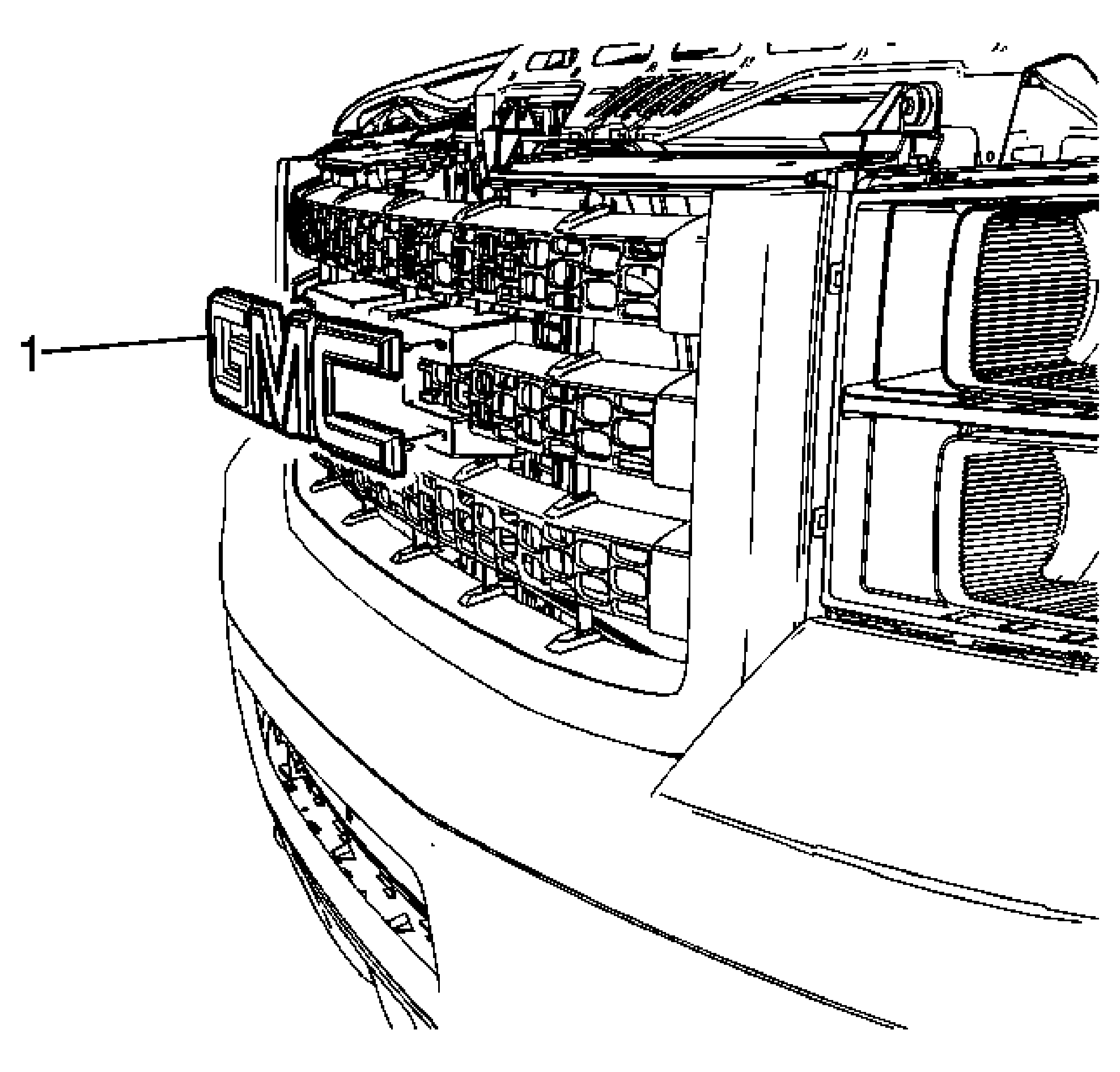

Fig 1: View Of Radiator Grille Emblem/Nameplate Replacement (GMC HD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open and support the hood. Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement . Reach in between the hood stop center bracket and release the tabs securing the grille emblem to the radiator grille.
1	Radiator Grille Emblem Tip: Release the integral tabs from the back side of the radiator grille emblem and release the emblem from the radiator grille.

Callout

Component Name

Preliminary Procedures

Open and support the hood.
Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement .
Reach in between the hood stop center bracket and release the tabs securing the grille emblem to the radiator grille.

Radiator Grille Emblem
Tip: Release the integral tabs from the back side of the radiator grille emblem and release the emblem from the radiator grille.
