Hood Front Molding Replacement (GMC HD)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

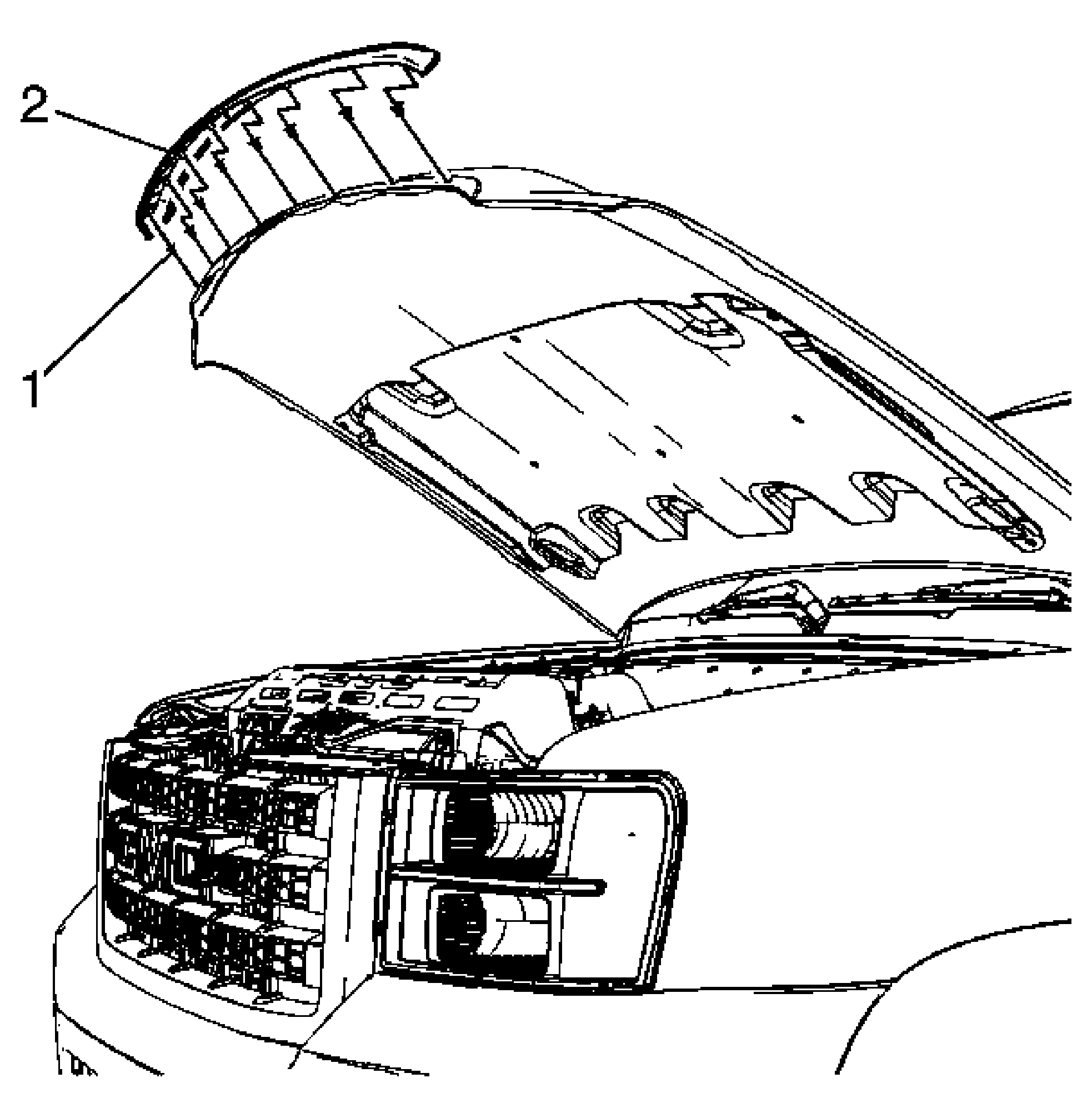

Fig 1: View Of Hood Front Molding Replacement (GMC HD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Release, open and support the hood assembly in order to remove the hood front molding.
1	Hood Front Molding Retainer (Qty: 8)
2	Hood Front Molding CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure Release the hood molding retainers beginning from one side working toward the other side of the front hood panel. Install the hood molding by inserting the retainers beginning on one side working toward the other side of the hood panel. Using the palm of the hand, press above each retainer securing the retainer to the hood outer panel.

Callout

Component Name

Preliminary Procedure:
Release, open and support the hood assembly in order to remove the hood front molding.

Hood Front Molding Retainer (Qty: 8)

Hood Front Molding

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

Release the hood molding retainers beginning from one side working toward the other side of the front hood panel.
Install the hood molding by inserting the retainers beginning on one side working toward the other side of the hood panel.
Using the palm of the hand, press above each retainer securing the retainer to the hood outer panel.
