Engine Block-Top View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

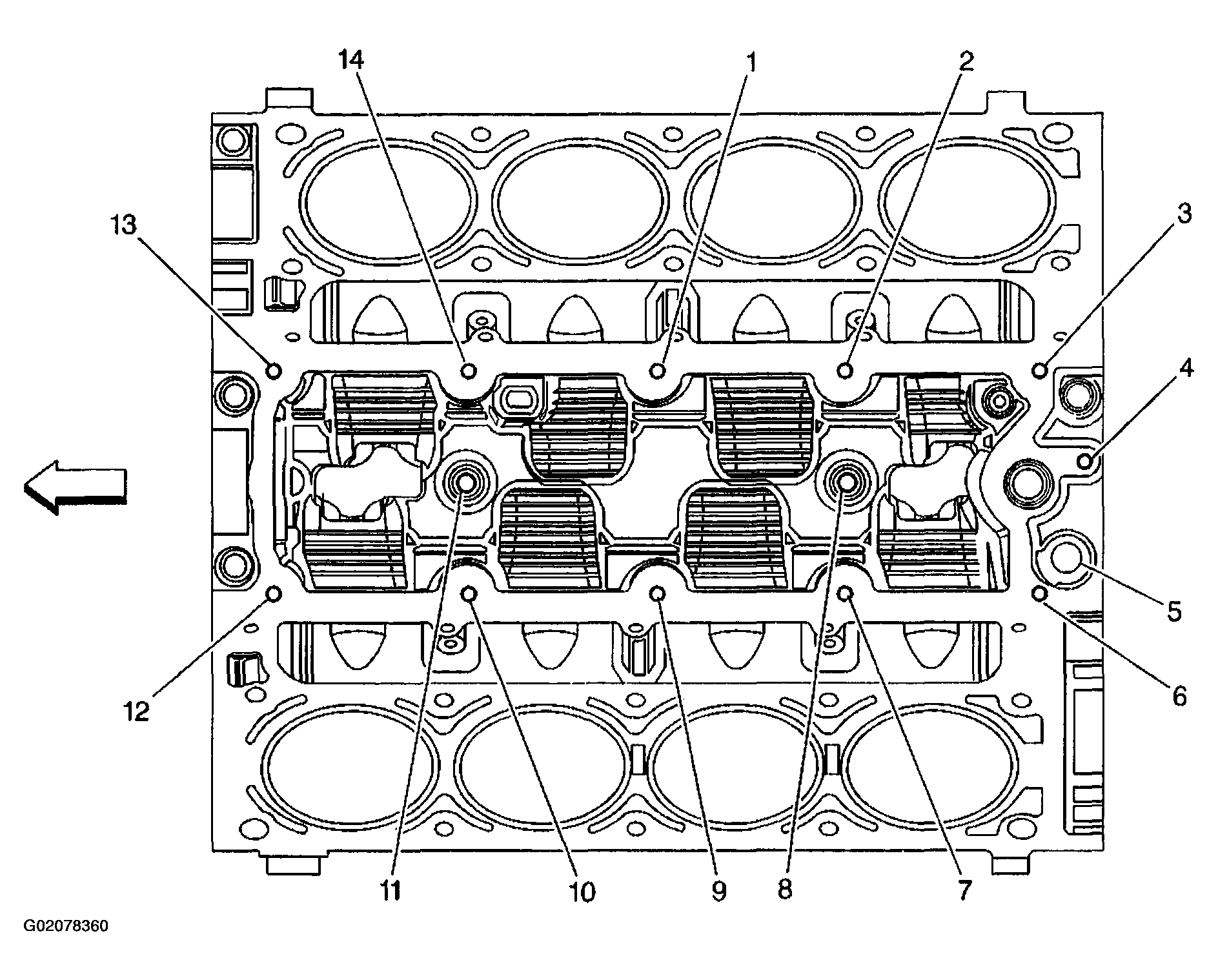

Fig 1: Engine Block - Top View (1 Of 2)
G02078360Courtesy of GENERAL MOTORS CORP.

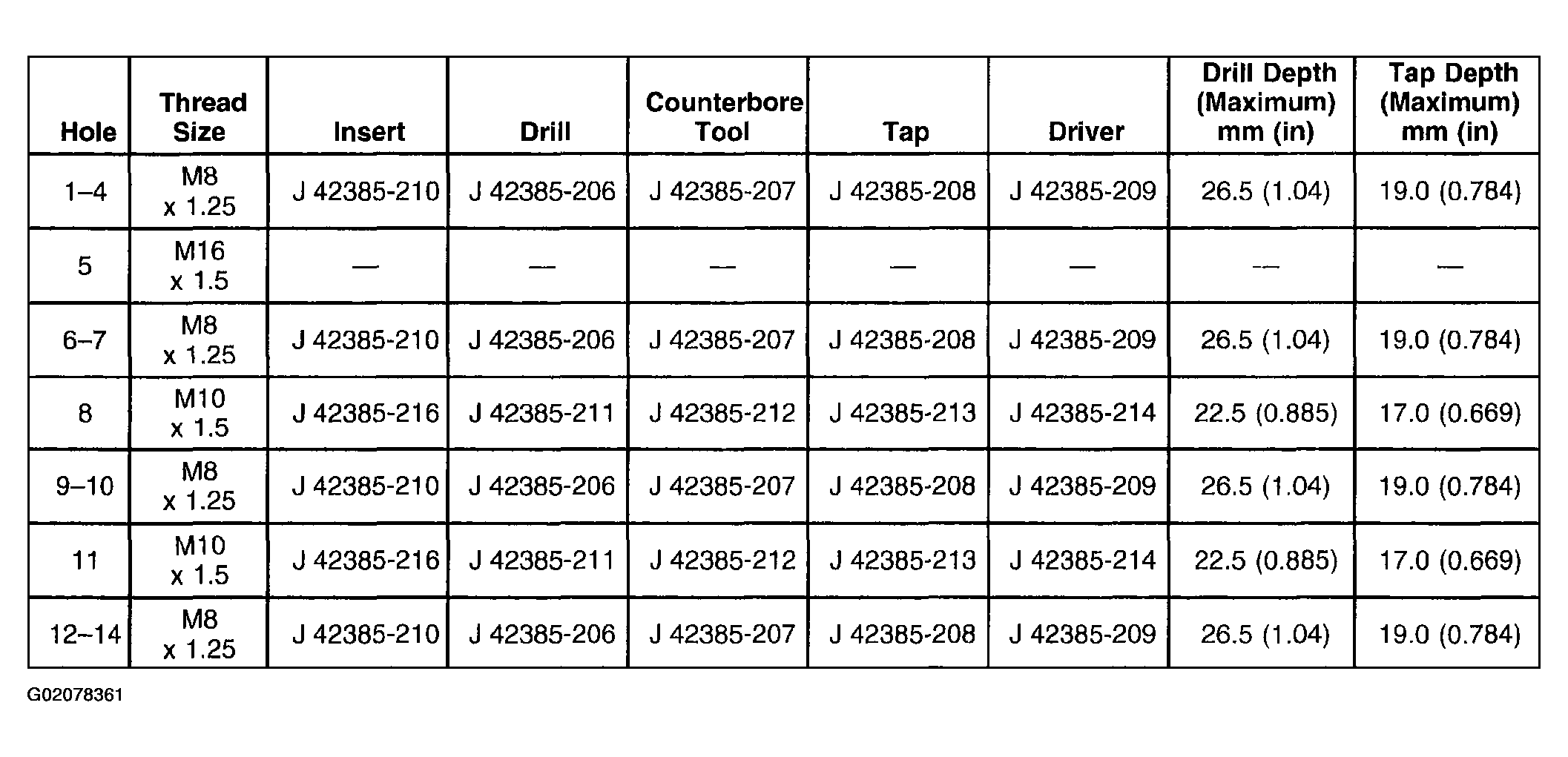

Fig 2: Engine Block - Top View (2 Of 2)
G02078361Courtesy of GENERAL MOTORS CORP.
