Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the splined surfaces of the crankshaft sprocket and the oil pump drive gear and install the oil pump.
  2. Install the oil pump onto the crankshaft sprocket until the pump housing contacts the face of the engine block.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the oil pump bolts.

    Tighten

    Tighten the oil pump bolts to 25 N.m (18 lb ft).

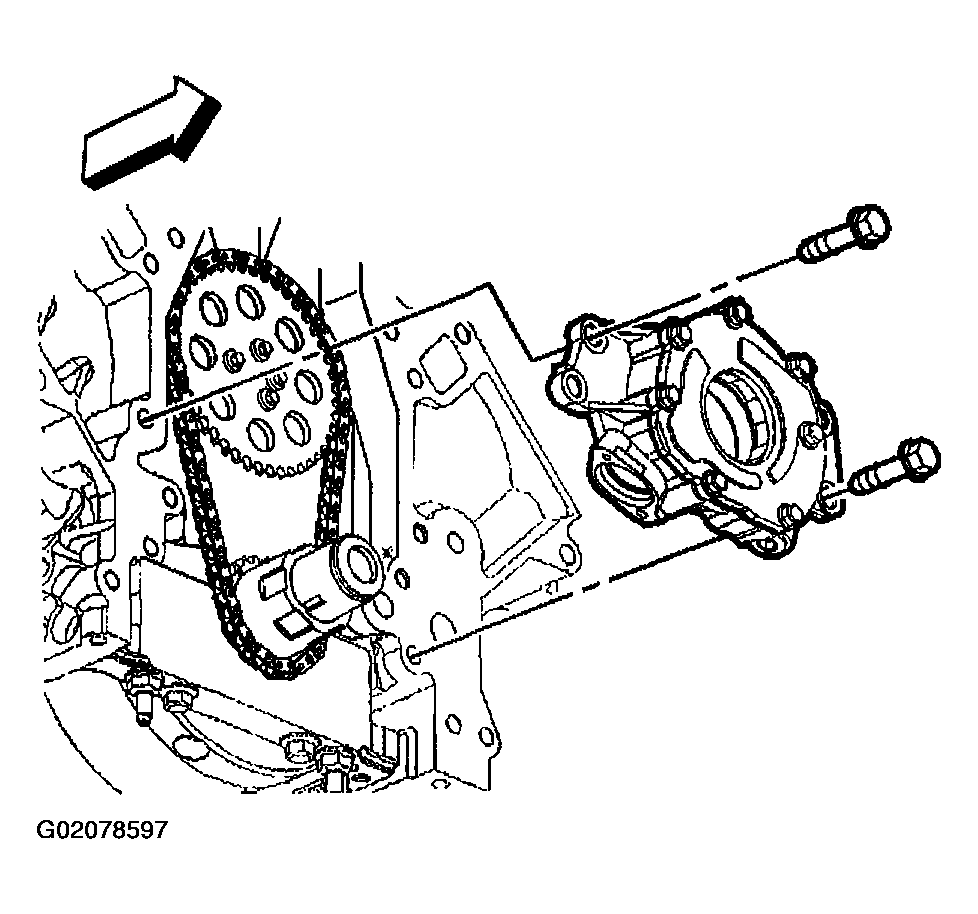

    Fig 1: Installing Oil Pump & Bolts
    G02078597Courtesy of GENERAL MOTORS CORP.
  4. Install the crankshaft oil deflector and nuts until snug.

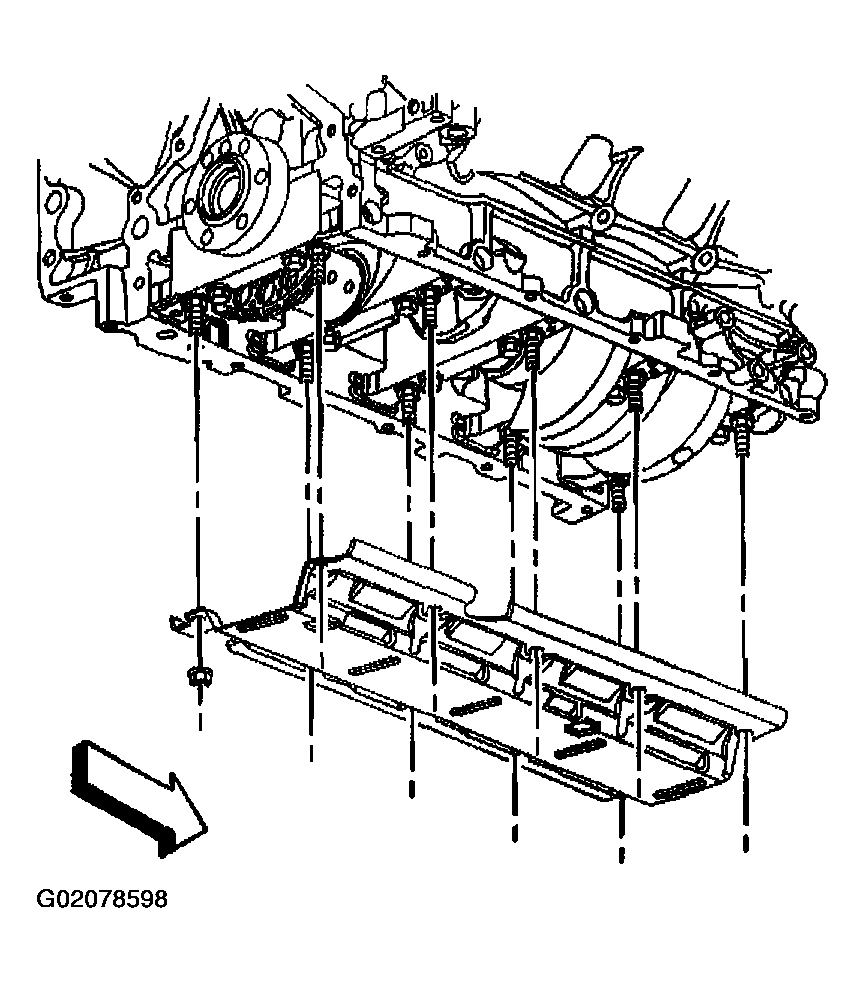

    Fig 2: Installing Crankshaft Oil Deflector & Nuts
    G02078598Courtesy of GENERAL MOTORS CORP.
  5. Lubricate a NEW oil pump screen O-ring seal with clean engine oil.
  6. Install the NEW O-ring seal onto the oil pump screen.

    Important:  Push the oil pump screen tube completely into the oil pump prior to tightening the bolt. Do not allow the bolt to pull the tube into the pump.

  7. Align the oil pump screen mounting brackets with the correct crankshaft bearing cap studs.
  8. Install the oil pump screen.
  9. Install the oil pump screen bolt and nuts.

    Tighten

    1. Tighten the oil pump screen bolt to 12 N.m (106 lb in).
    2. Tighten the crankshaft oil deflector/oil pump screen nuts to 25 N.m (18 lb ft).

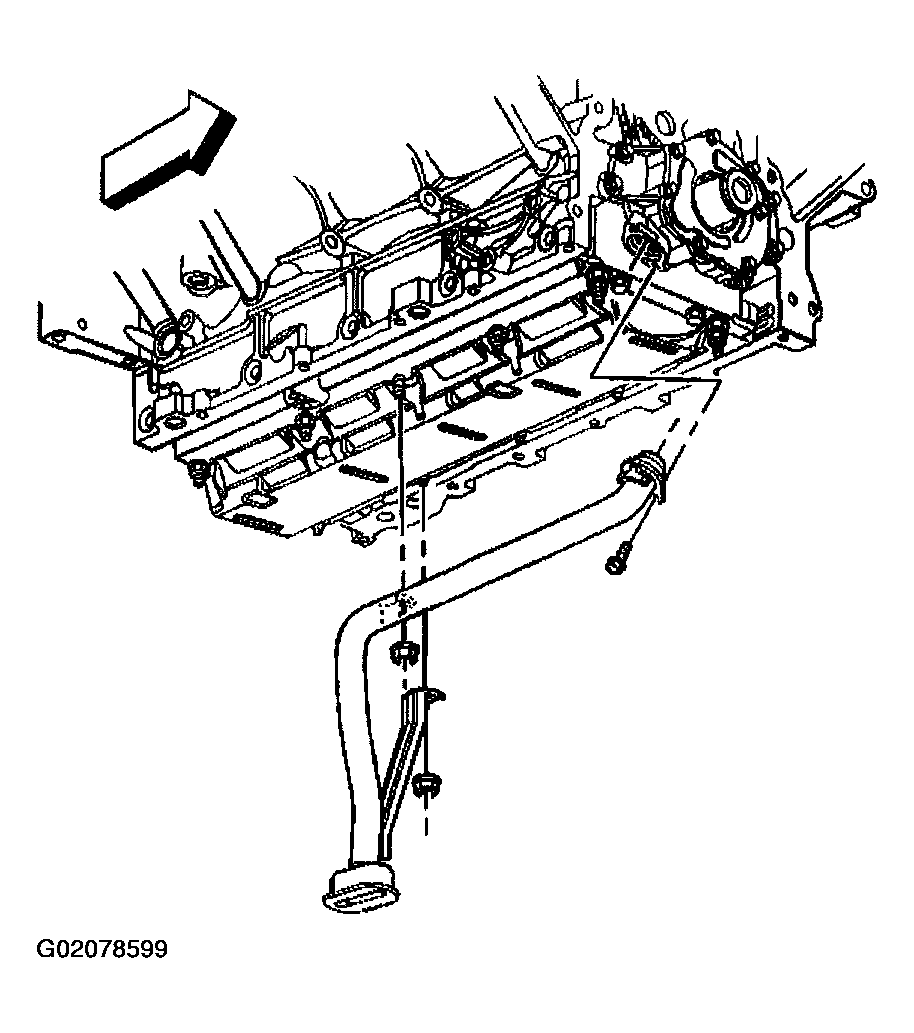

      Fig 3: Installing O-Ring Seal, Oil Pump Screen, Bolt & Nuts
      G02078599Courtesy of GENERAL MOTORS CORP.
  10. Install the engine front cover. Refer to Engine Front Cover Replacement .
  11. Install the oil pan. Refer to Oil Pan Replacement .
