Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil.
  2. Remove the oil pan cover bolts (1), cover (2), and gasket (3).
  3. Discard the gasket.

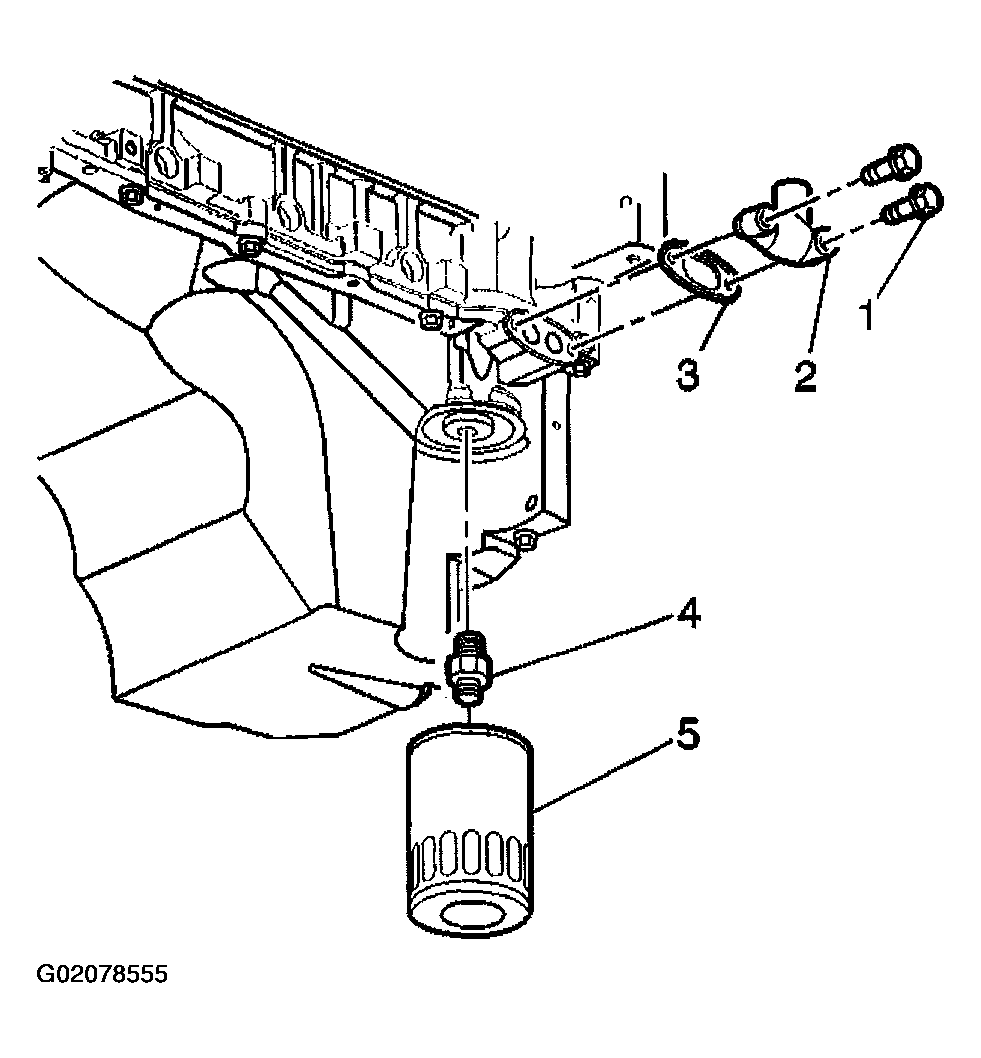

    Fig 1: Removing Oil Pan Cover Bolts, Cover & Gasket
    G02078555Courtesy of GENERAL MOTORS CORP.
