Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the oil pan-to-rear cover bolts (1).

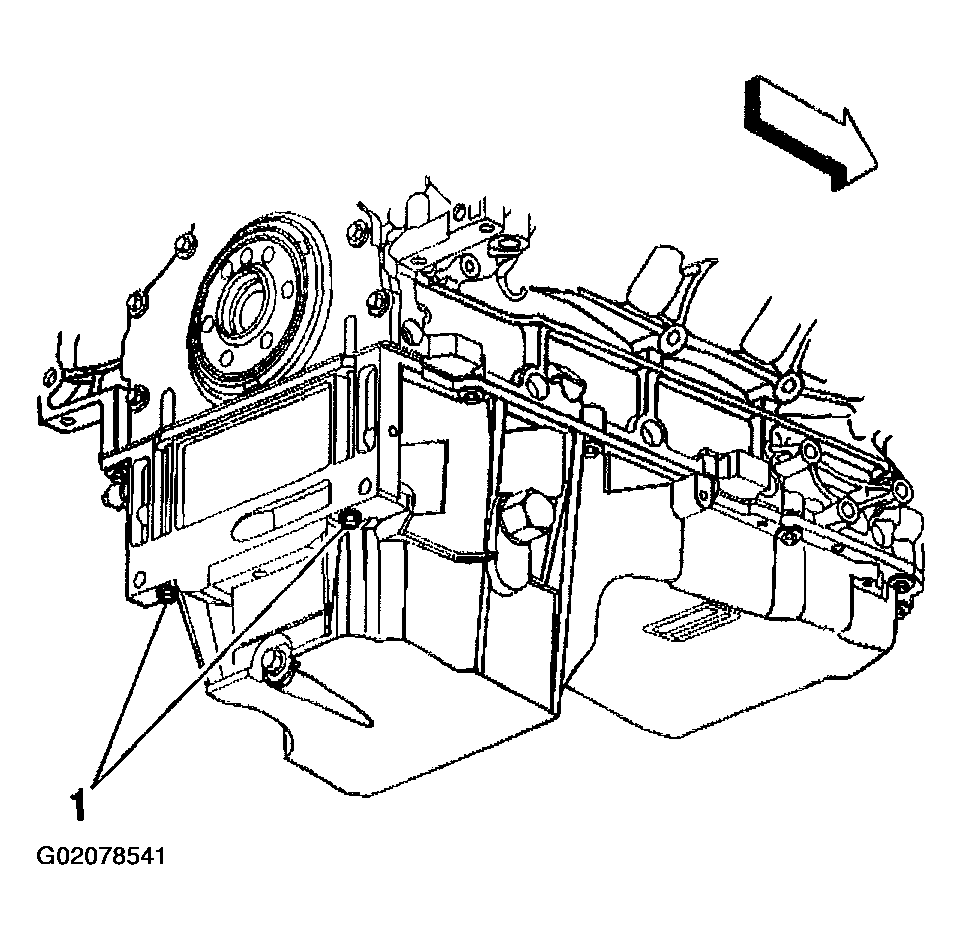

    Fig 1: Removing Oil Pan-To-Rear Cover Bolts
    G02078541Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover bolts.
  4. Remove the rear cover and gasket.
  5. Discard the rear cover gasket.
  6. Clean and inspect the rear cover. Refer to Engine Rear Cover Cleaning and Inspection .

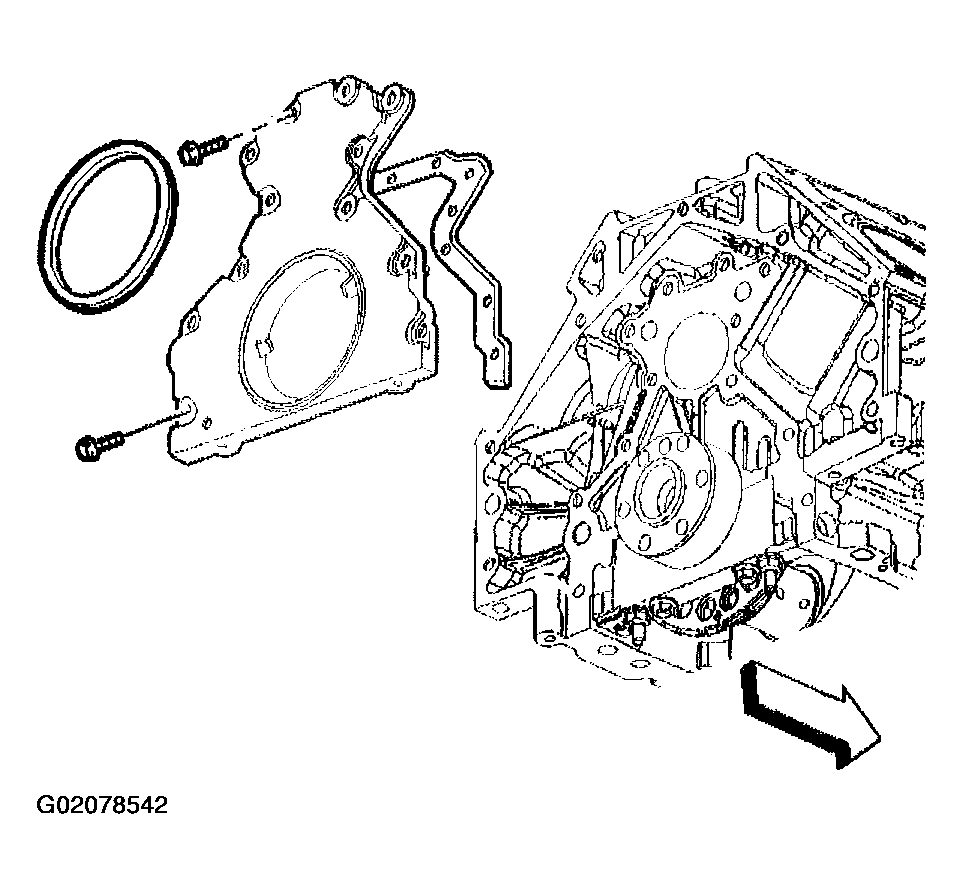

    Fig 2: Removing Rear Cover Bolts, Cover & Gasket
    G02078542Courtesy of GENERAL MOTORS CORP.
