Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to Engine Cover Replacement in Interior Trim .
  2. Disconnect the oil pressure sensor electrical connector (1).

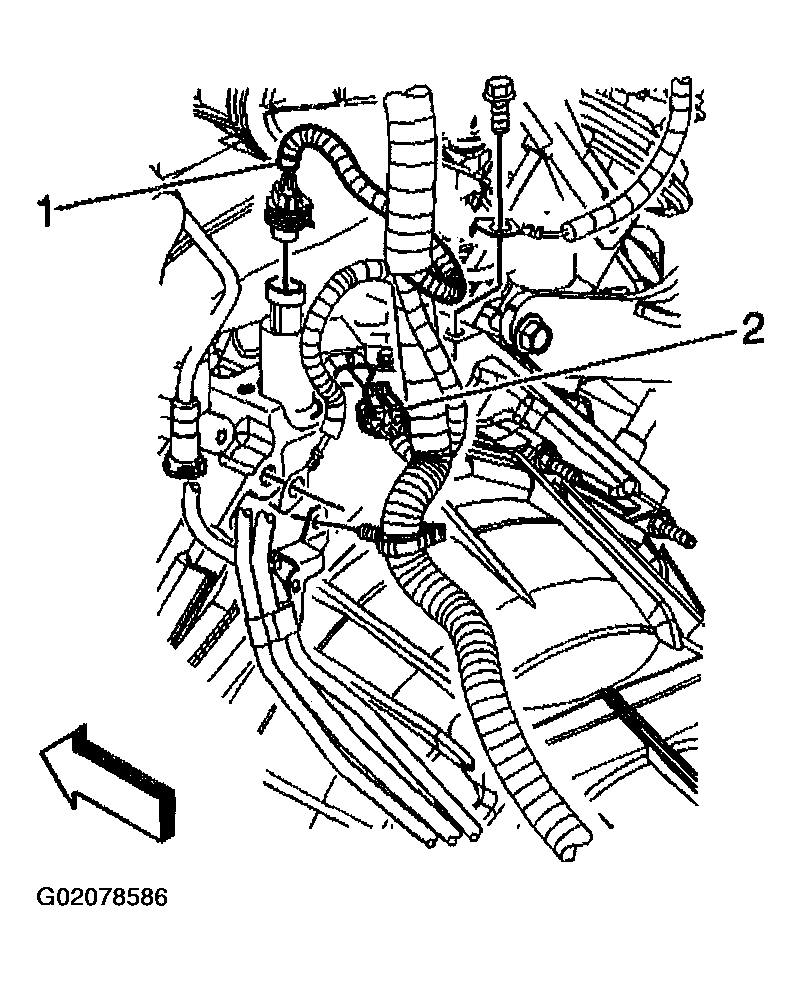

    Fig 1: Removing Oil Pressure Sensor Electrical Connector
    G02078586Courtesy of GENERAL MOTORS CORP.
  3. Using J 41712  or equivalent, remove the oil pressure sensor.

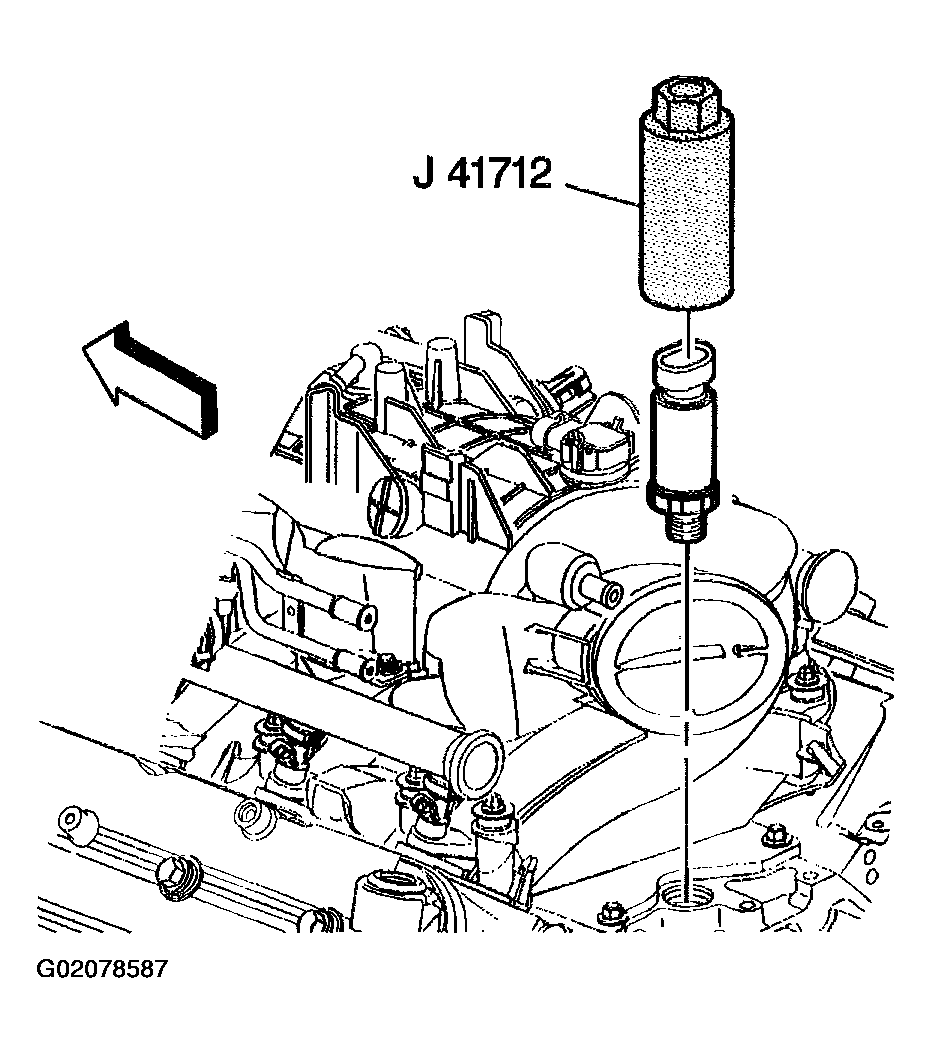

    Fig 2: Removing Oil Pressure Sensor Using J 41712
    G02078587Courtesy of GENERAL MOTORS CORP.
