Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  2. Disconnect the oil level sensor electrical connector (6).

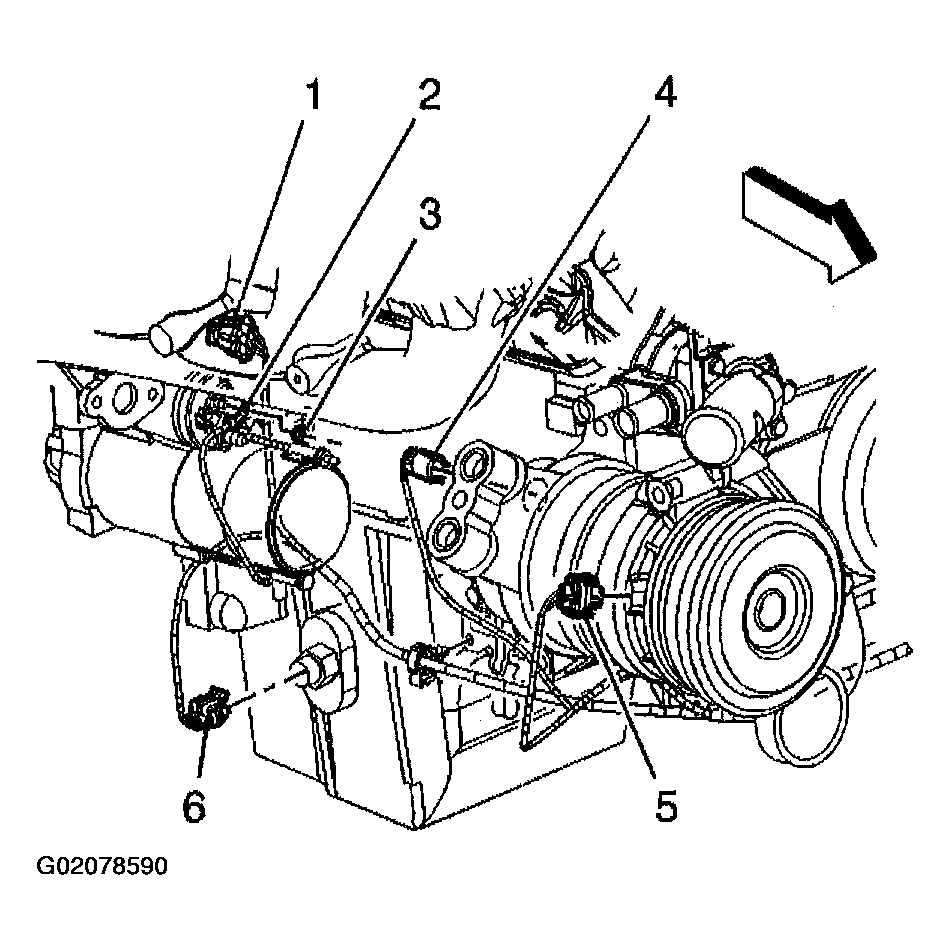

    Fig 1: Disconnecting Oil Level Sensor Electrical Connector
    G02078590Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level sensor from the oil pan.

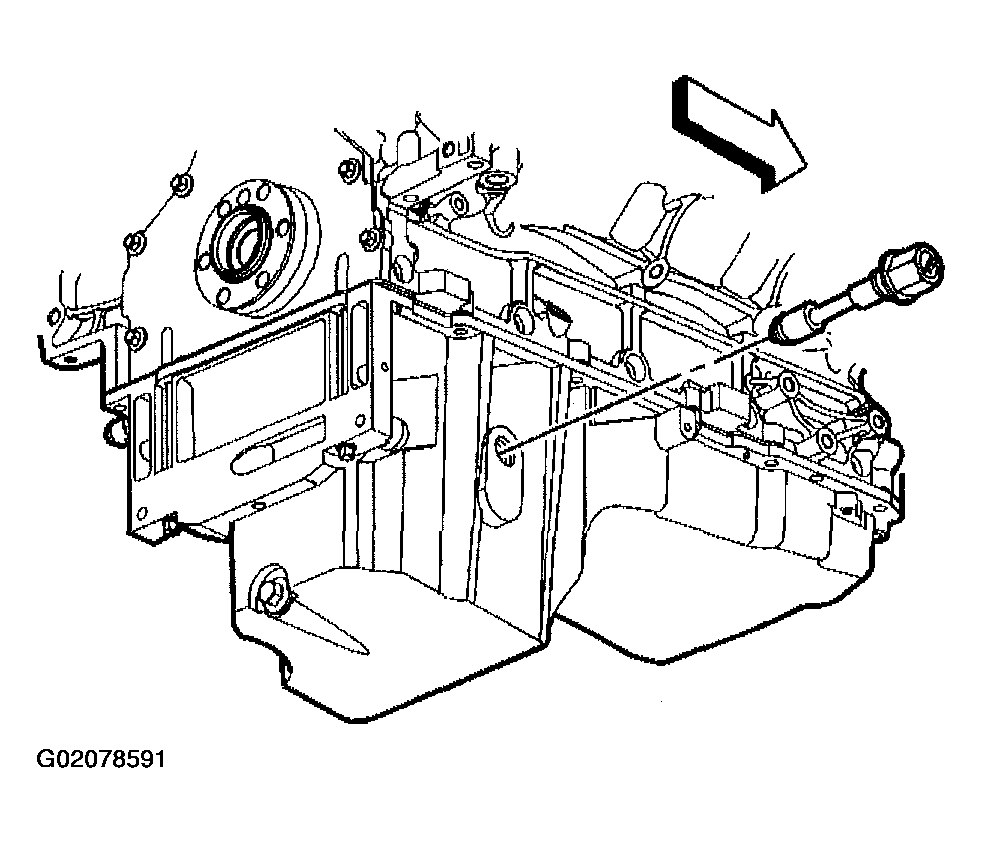

    Fig 2: Removing Oil Level Sensor
    G02078591Courtesy of GENERAL MOTORS CORP.
