Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump. Refer to WATER PUMP REPLACEMENT (4.8L, 5.3L, AND 6.0L ENGINES) or WATER PUMP REPLACEMENT (4.3L ENGINE) .
  2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  3. Remove the oil pan-to-front cover bolts.

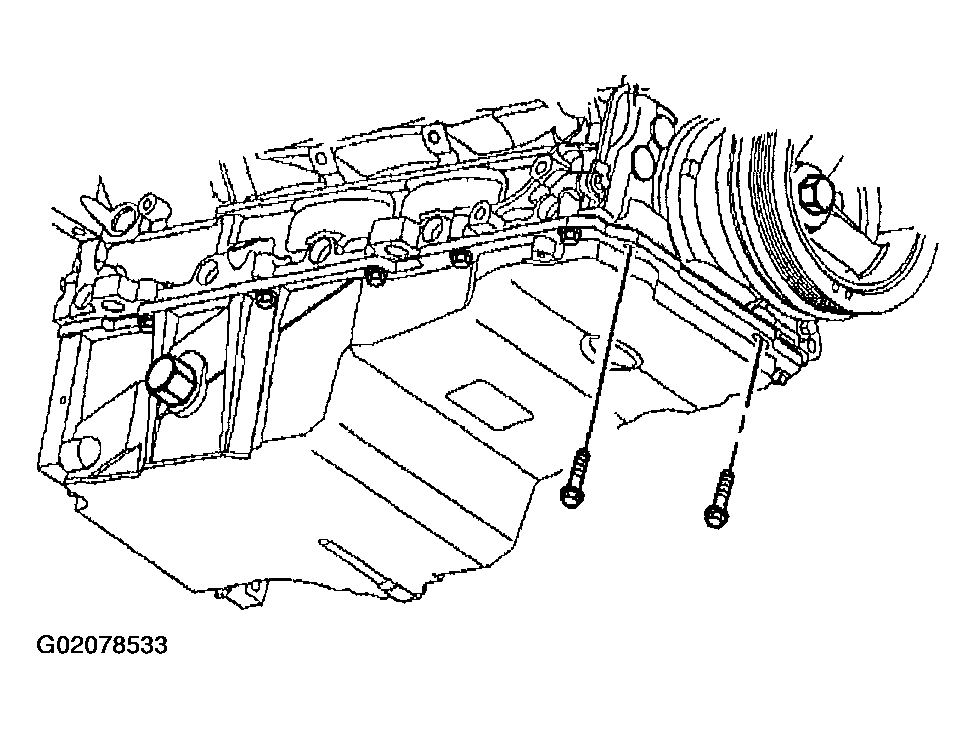

    Fig 1: Removing Oil Pan-To-Front Cover Bolts
    G02078533Courtesy of GENERAL MOTORS CORP.
  4. Remove the front cover bolts.
  5. Remove the front cover and gasket.
  6. Discard the front cover gasket.
  7. Clean and inspect the engine front cover. Refer to Engine Front Cover Cleaning and Inspection .

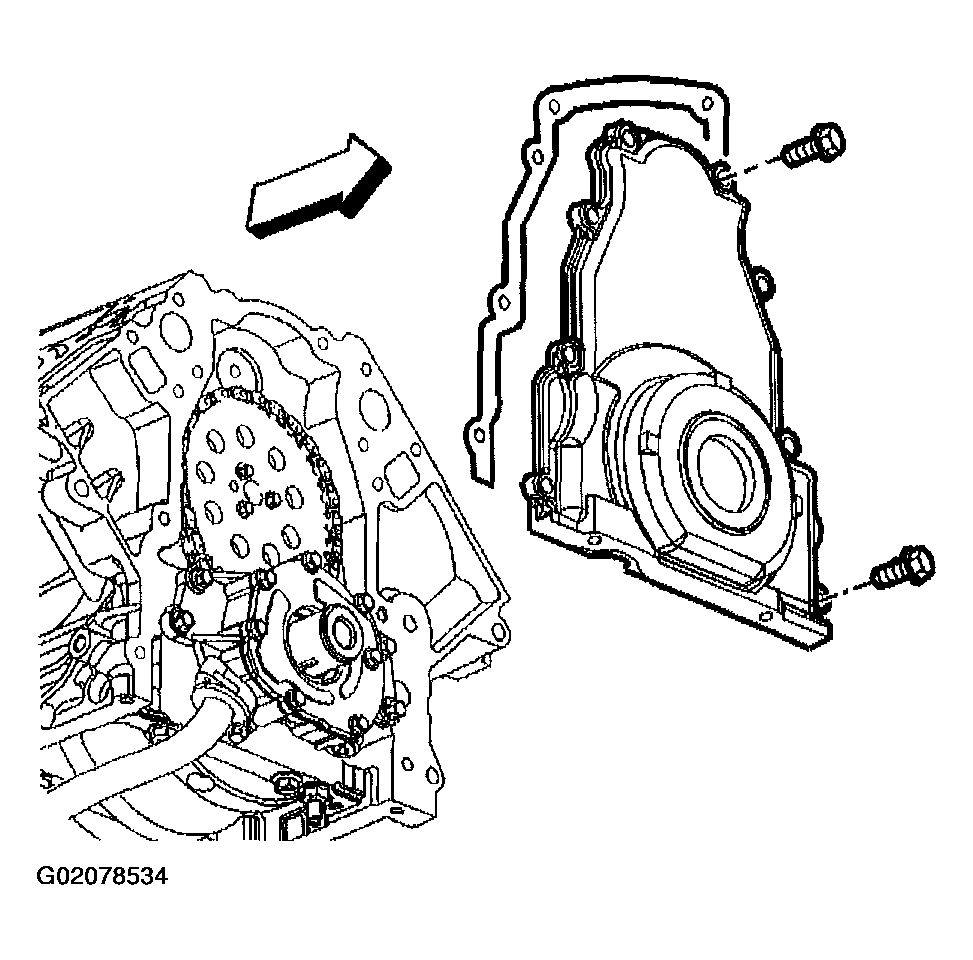

    Fig 2: Removing Front Cover Bolts, Cover & Gasket
    G02078534Courtesy of GENERAL MOTORS CORP.
