Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air conditioning (A/C) drive belt. Refer to Drive Belt Replacement - Air Conditioning .
  2. Remove the A/C belt tensioner bolts.
  3. Remove the A/C belt tensioner.

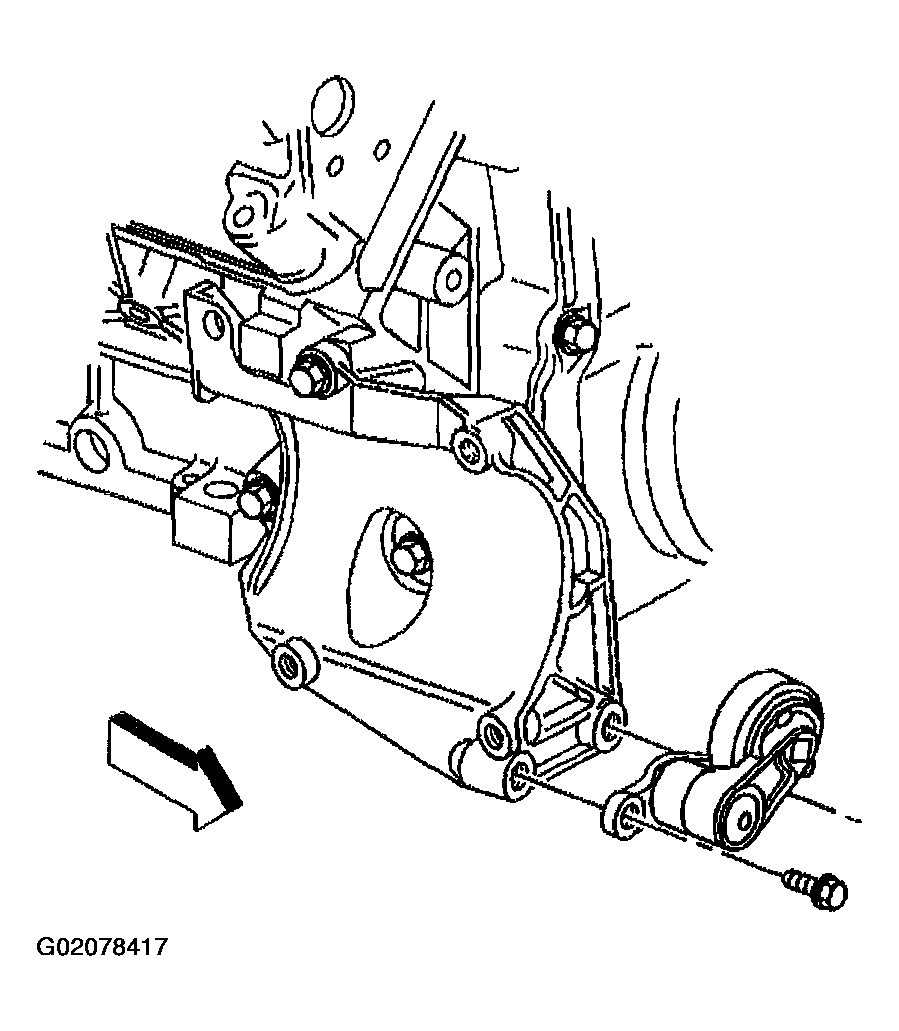

    Fig 1: Removing A/C Belt Tensioner Bolts & Tensioner
    G02078417Courtesy of GENERAL MOTORS CORP.
