Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  2. Remove the drive belt tensioner bolts.
  3. Remove the drive belt tensioner.

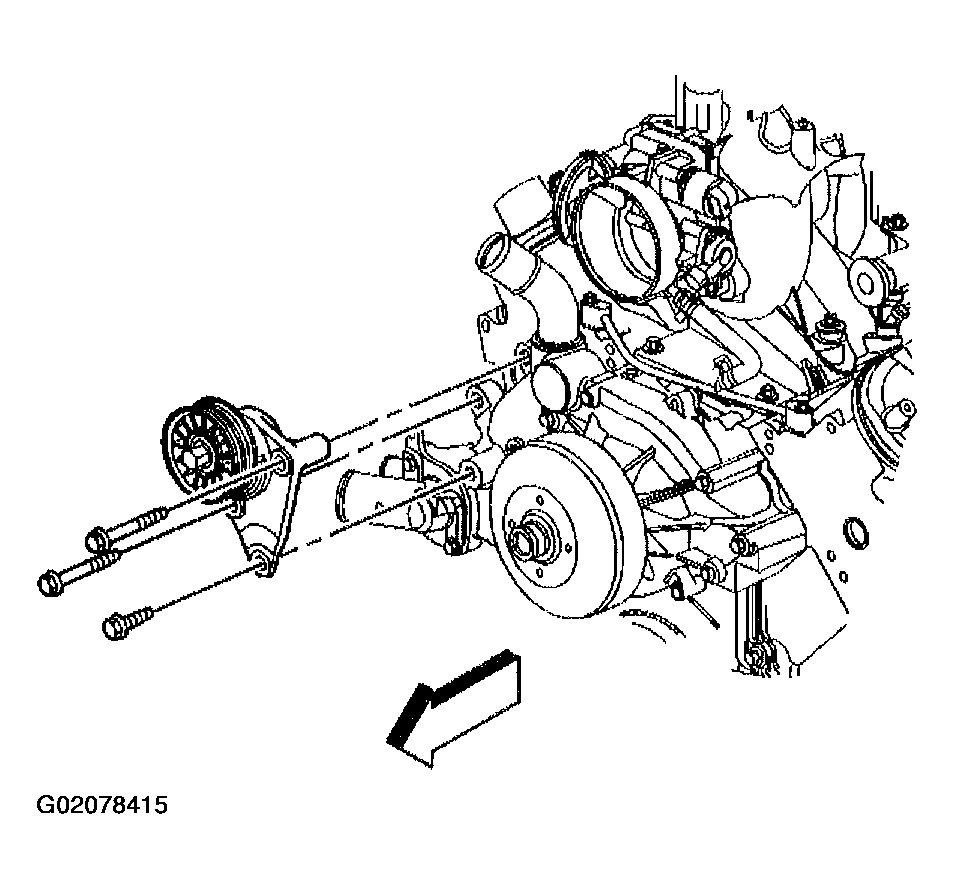

    Fig 1: Removing Drive Belt Tensioner Bolts & Tensioner
    G02078415Courtesy of GENERAL MOTORS CORP.
