Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  2. Raise the vehicle.

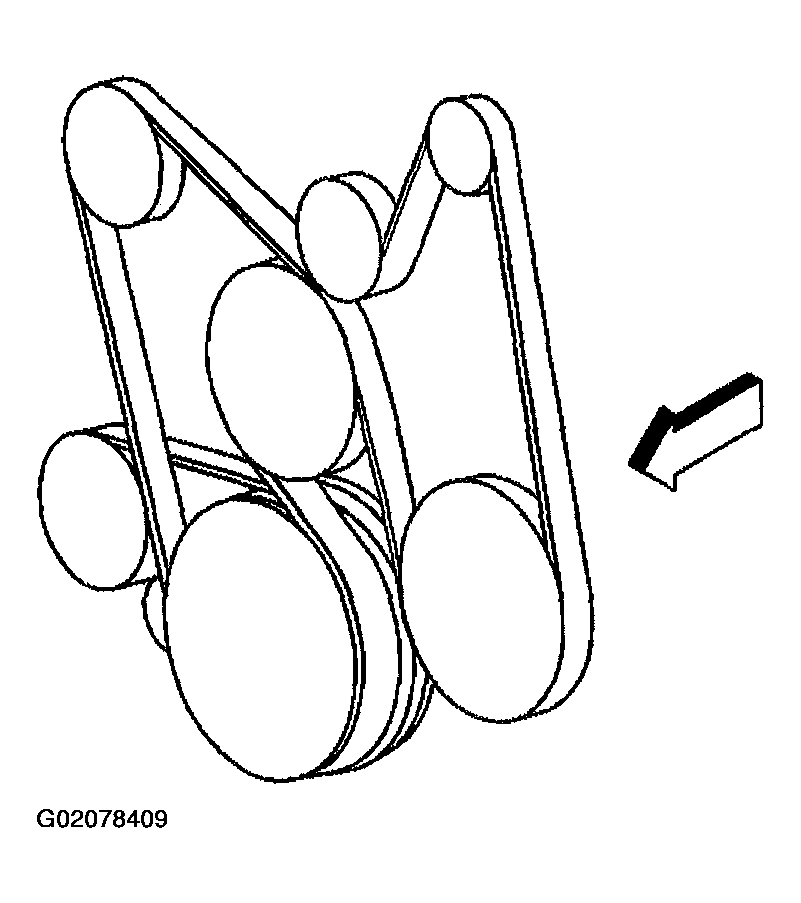

    Fig 1: Removing Accessory Drive Belt
    G02078409Courtesy of GENERAL MOTORS CORP.
  3. Install a ratchet into the air conditioning (A/C) belt tensioner adapter opening.
  4. Rotate the A/C belt tensioner clockwise in order to relieve tension on the belt.
  5. Remove the A/C belt from the pulleys.
  6. Slowly release the tension on the A/C belt tensioner.
  7. Remove the ratchet from the A/C belt tensioner.
  8. Clean and inspect the belt surfaces of all the pulleys.

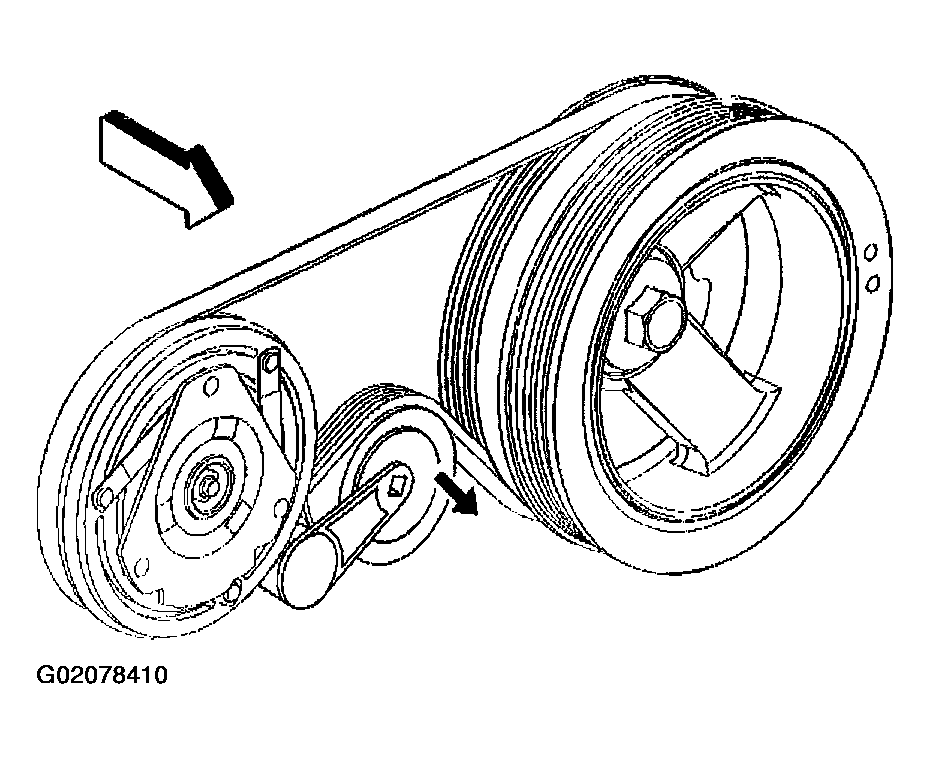

    Fig 2: Removing A/C Belt From Pulleys
    G02078410Courtesy of GENERAL MOTORS CORP.
