Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C belt around the crankshaft balancer.
  2. Install a ratchet into the A/C drive belt tensioner adapter opening
  3. Rotate the A/C belt tensioner clockwise in order to relieve tension on the tensioner.
  4. Install the A/C belt over the idler pulley.
  5. Install the A/C belt around the A/C compressor pulley.
  6. Slowly release the tension on the A/C belt tensioner.
  7. Remove the ratchet from the A/C belt tensioner.
  8. Inspect the A/C belt for proper installation and alignment.

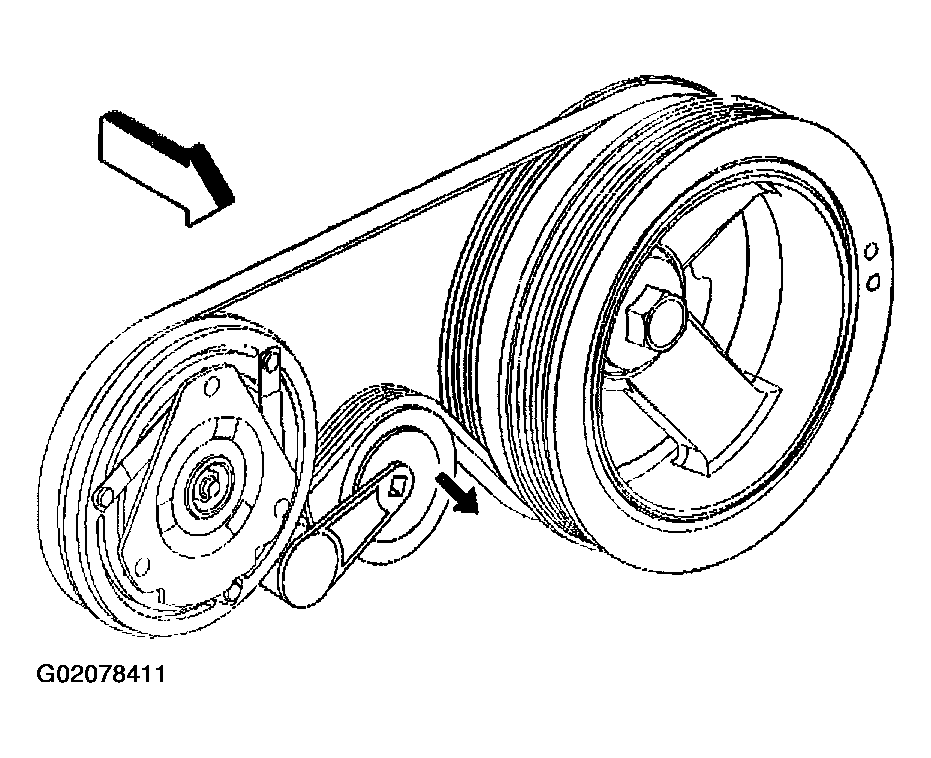

    Fig 1: Installing A/C Belt
    G02078411Courtesy of GENERAL MOTORS CORP.
  9. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  10. Lower the vehicle.

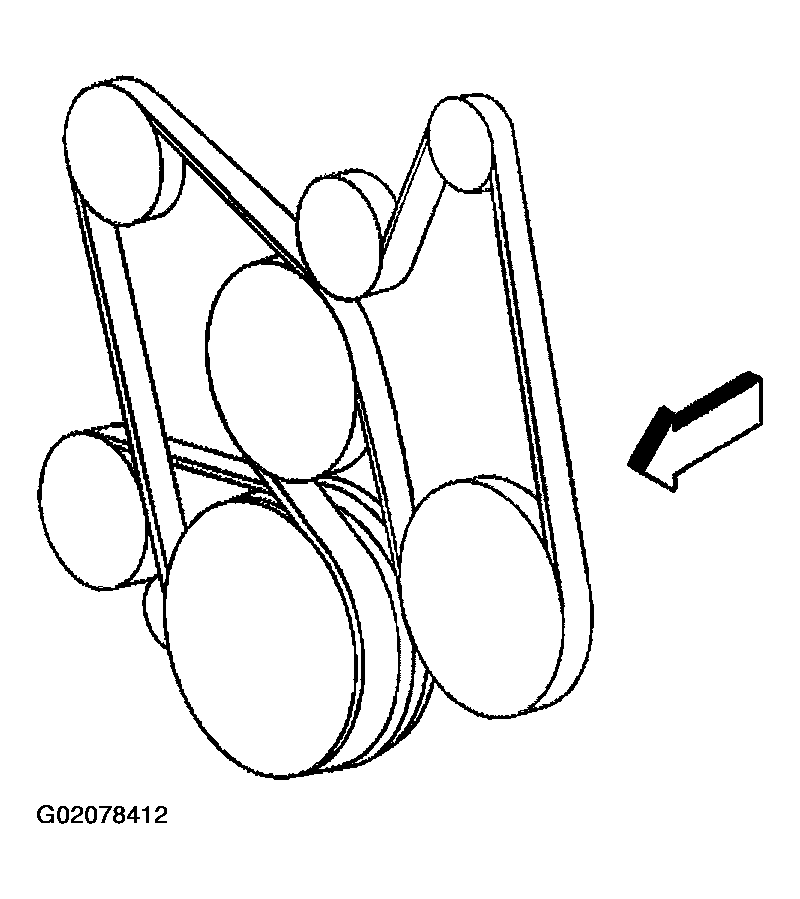

    Fig 2: Installing Accessory Drive Belt
    G02078412Courtesy of GENERAL MOTORS CORP.
