Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wear safety glasses in order to avoid eye damage.

CAUTION: Clean all dirt, debris, and coolant from the engine block cylinder head bolt holes. Failure to remove all foreign material may result in damaged threads, improperly tightened fasteners or damage to components.

Important:

Do not reuse the cylinder head bolts. Install NEW cylinder head bolts during assembly.
Do not use any type of sealant on the cylinder head gasket (unless specified).
The cylinder head gaskets must be installed in the proper direction and position.

Clean the engine block cylinder head bolt holes (if required).
Thread repair tool J 42385-107, found in J 42385-200 may be used to clean the threads of old threadlocking material.
Use spray cleaner GM U.S. P/N 12346139, P/N 12377981, Canada P/N 10953463, or equivalent into the hole.
Clean the cylinder head bolt holes with compressed air.
Check the cylinder head locating pins for proper installation.

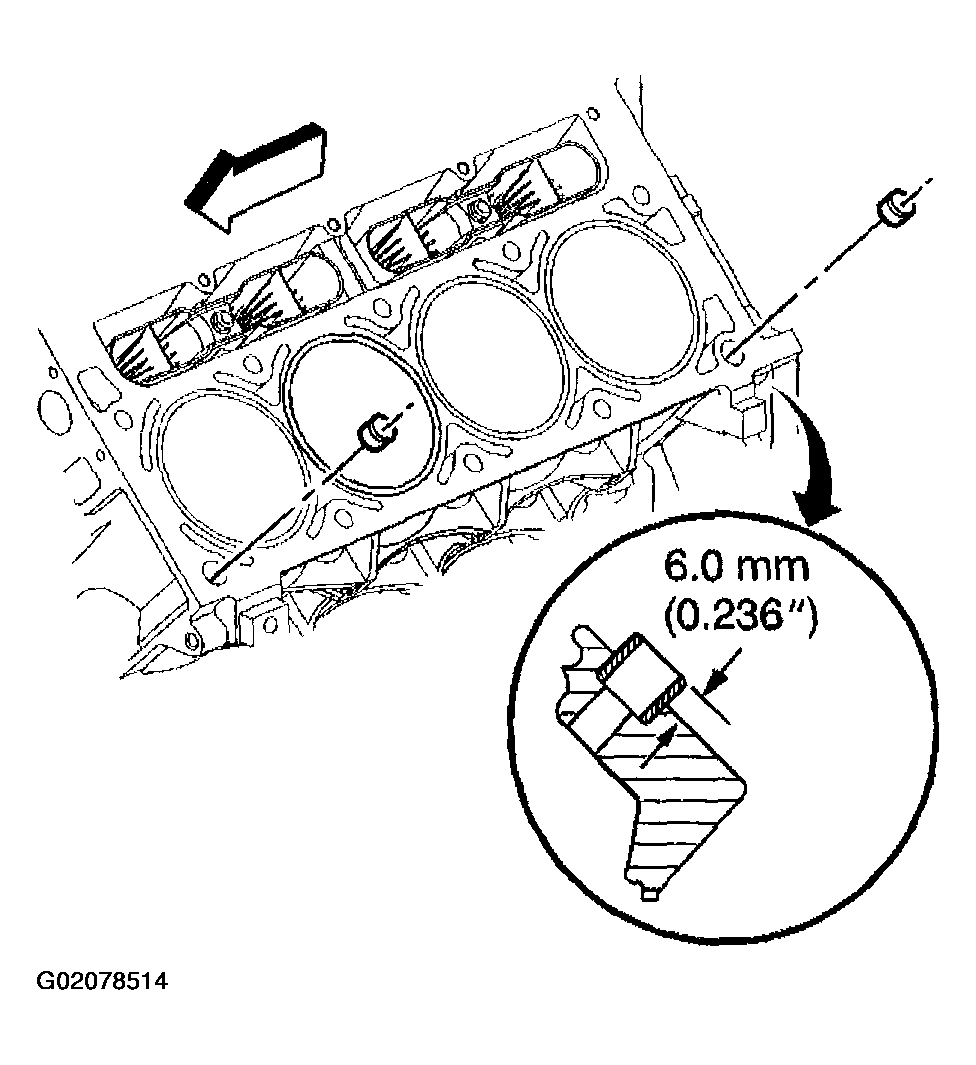

Fig 1: Checking Cylinder Head Locating Pins Installation
Courtesy of GENERAL MOTORS CORP.

Important: When properly installed, the tab on the right cylinder head gasket will be located right of center or closer to the front of the engine.
Install the NEW right cylinder head gasket onto the locating pins.

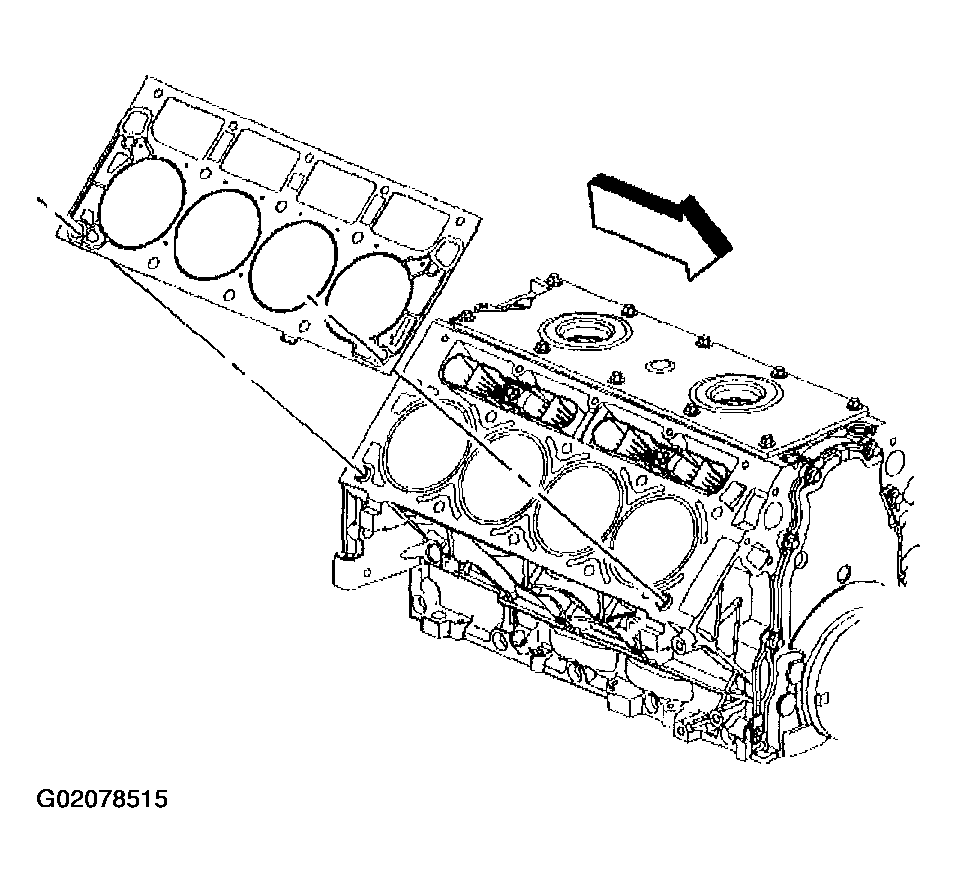

Fig 2: Installing Right Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head onto the locating pins and gasket.
Install the NEW cylinder head bolts.

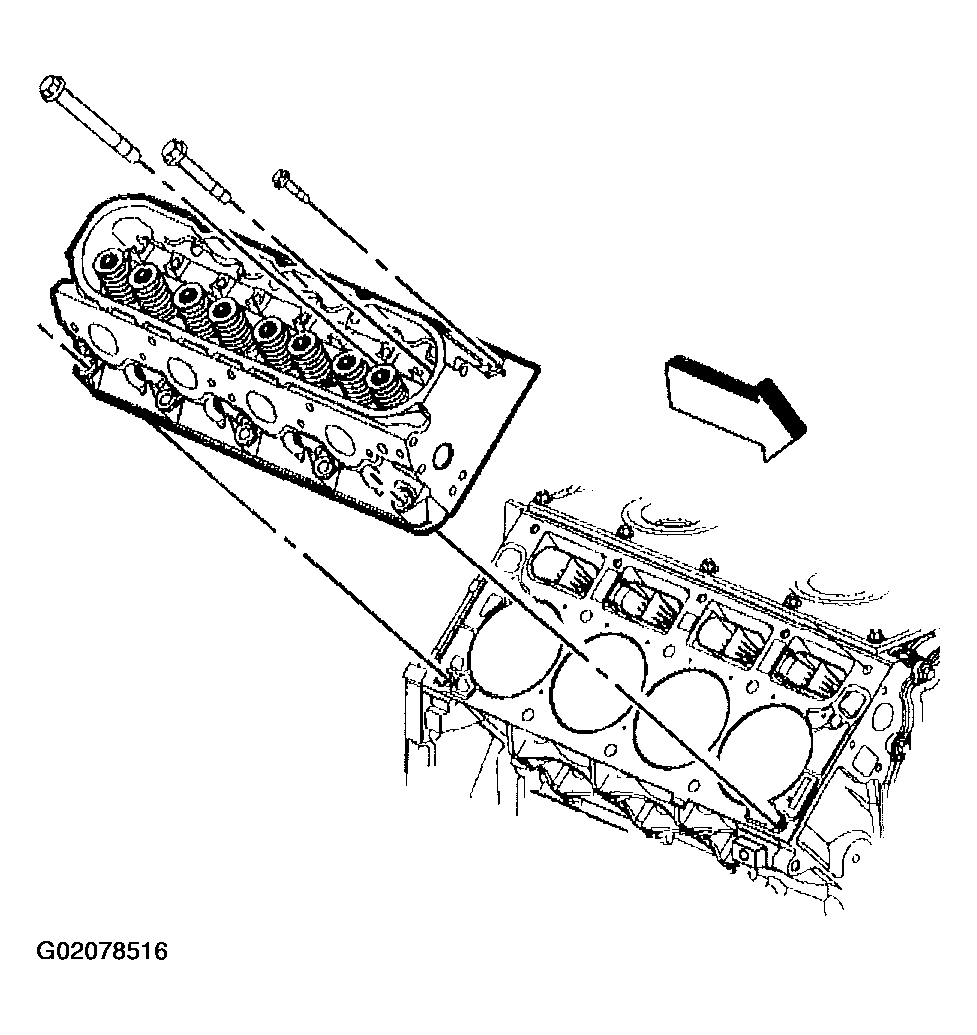

Fig 3: Installing Cylinder Head & Bolts
Courtesy of GENERAL MOTORS CORP.

CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Tighten the cylinder head bolts.
Tighten
1. Tighten the M11 cylinder head bolts a first pass in sequence to 30 N.m (22 lb ft).
2. Tighten the M11 cylinder head bolts a second pass in sequence to 90 degrees using J 36660-A .
3. Tighten the M11 cylinder head bolts (1,2,3,4,5,6,7,8) to 90 degrees and the M11 cylinder head bolts (9 and 10) to 50 degrees a final pass in sequence using J 36660-A .
4. Tighten the M8 cylinder head bolts (11,12,13,14,15) to 30 N.m (22 lb ft). Begin with the center bolt (11) and alternating side-to-side, work outward tightening all of the bolts.

  Fig 4: Tightening Cylinder Head Bolts In Sequence
  Courtesy of GENERAL MOTORS CORP.
The cylinder head gasket displacement can be verified by markings visible on the top side of the left gasket locating tab.
- Some 4.8/5.3L head gaskets may have 53 stamped onto the locating tab.
- Some 6.0L head gaskets may have 60 stamped onto the locating tab.

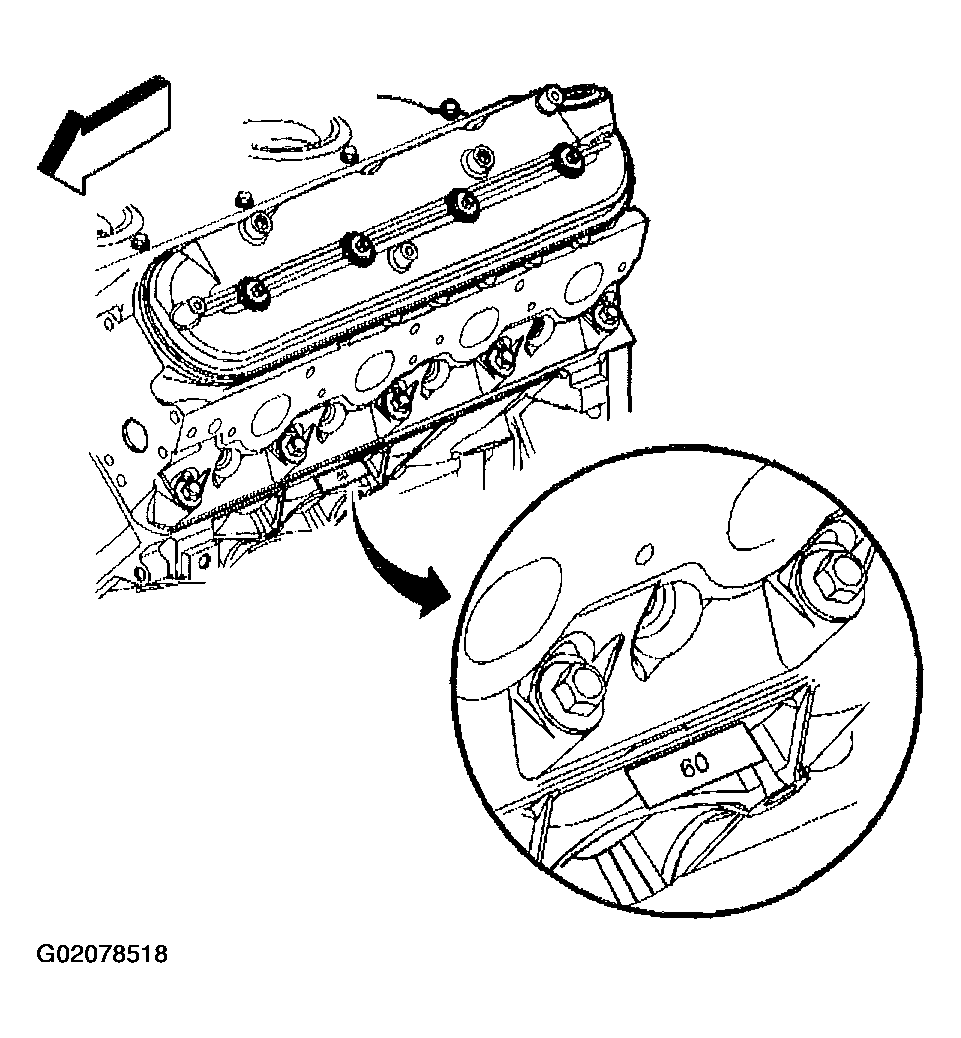

Fig 5: Identifying Cylinder Head Gasket Markings
Courtesy of GENERAL MOTORS CORP.
Install the pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
Install the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT (4.8L, 5.3L, 6.0L) or EXHAUST MANIFOLD REPLACEMENT-RIGHT (4.3L) .
Install the coolant air bleed pipe. Refer to COOLANT AIR BLEED PIPE ASSEMBLY REPLACEMENT (4.8L, 5.3L, AND 6.0L ENGINES) .
Install the oil level indicator. Refer to Oil Level Indicator and Tube Replacement .
Install the engine cover. Refer to Engine Cover Replacement in Interior Trim .
