Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the throttle body and the valve rocker arm cover.

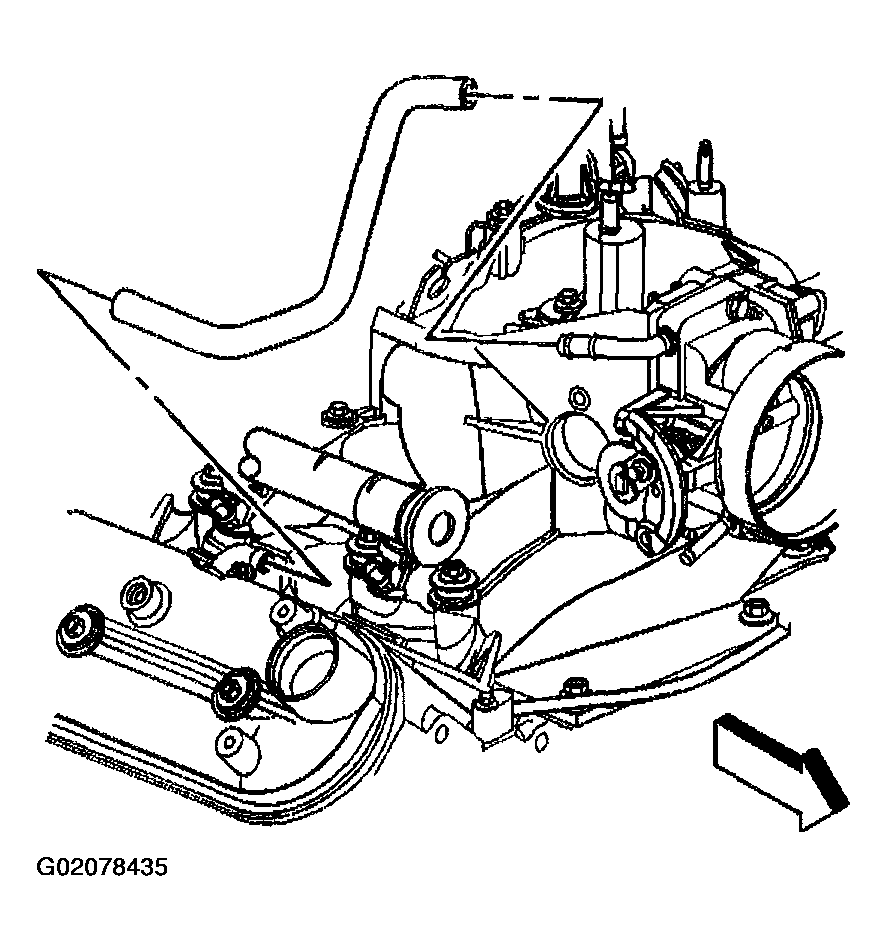

    Fig 1: Installing Vent Hose
    G02078435Courtesy of GENERAL MOTORS CORP.
  2. Install the PCV valve (2) to the tube (1).
  3. Install the PCV tube (1) to the intake manifold and valve rocker arm cover.
  4. Install the engine cover. Refer to Engine Cover Replacement in Interior Trim .

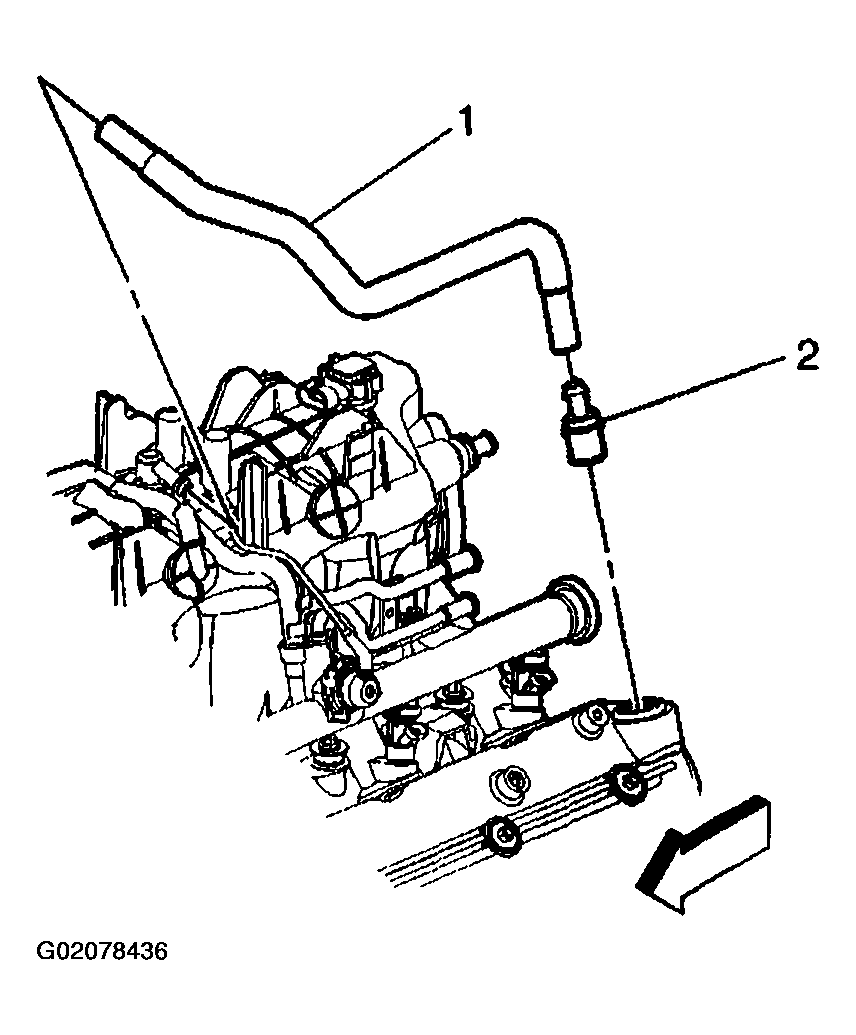

    Fig 2: Installing PCV Valve & Tube
    G02078436Courtesy of GENERAL MOTORS CORP.
