Valve Rocker Arm Cover Removal - Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not remove the ignition coils from the valve rocker arm cover unless required.

Remove the ignition coil bracket bolts from the rocker arm cover, if required.
Remove the ignition coil and bracket assembly from the cover.

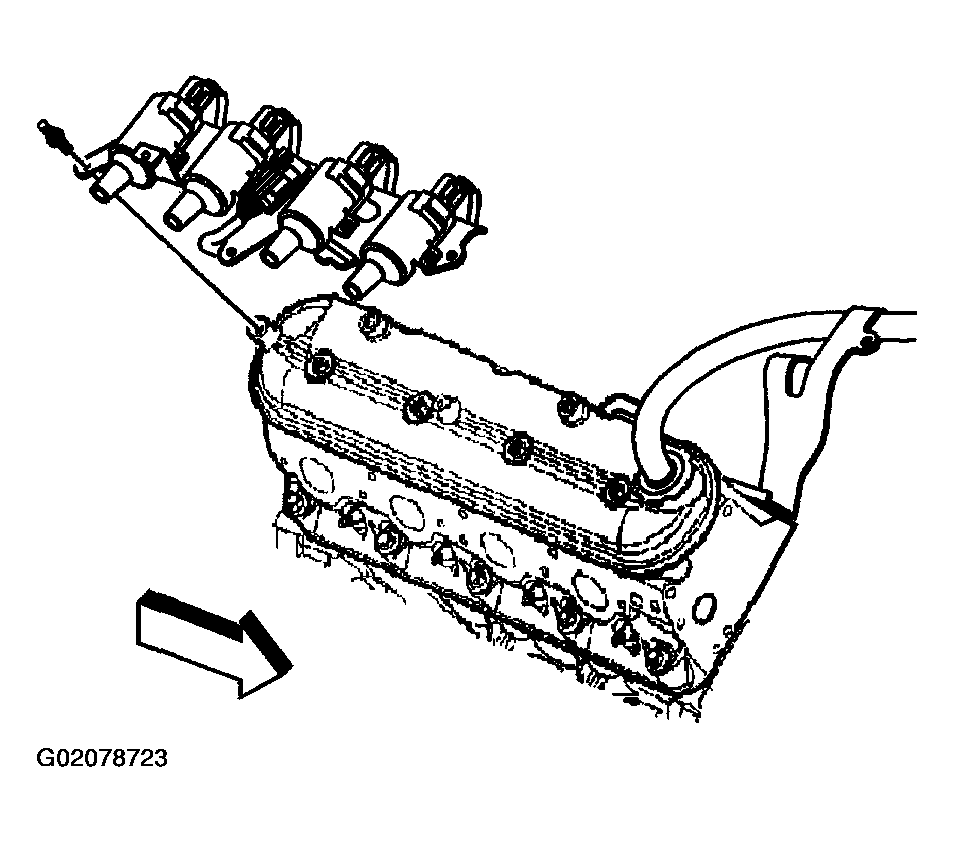

Fig 1: Removing Ignition Coil & Bracket Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the valve rocker arm cover bolts.
Remove the valve rocker arm cover.

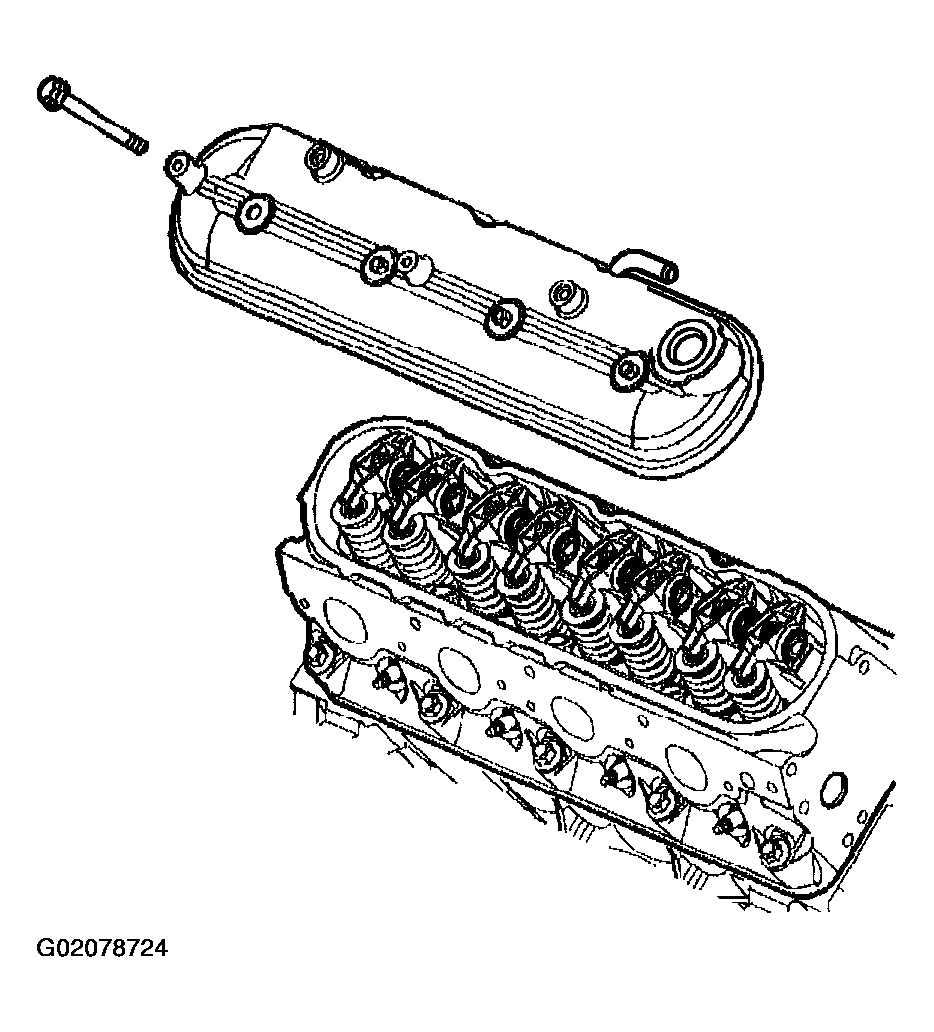

Fig 2: Removing Valve Rocker Arm Cover Bolts & Cover
Courtesy of GENERAL MOTORS CORP.
Remove the gasket (1) from the cover.
Discard the gasket.
The bolt grommets may be used again if not damaged.

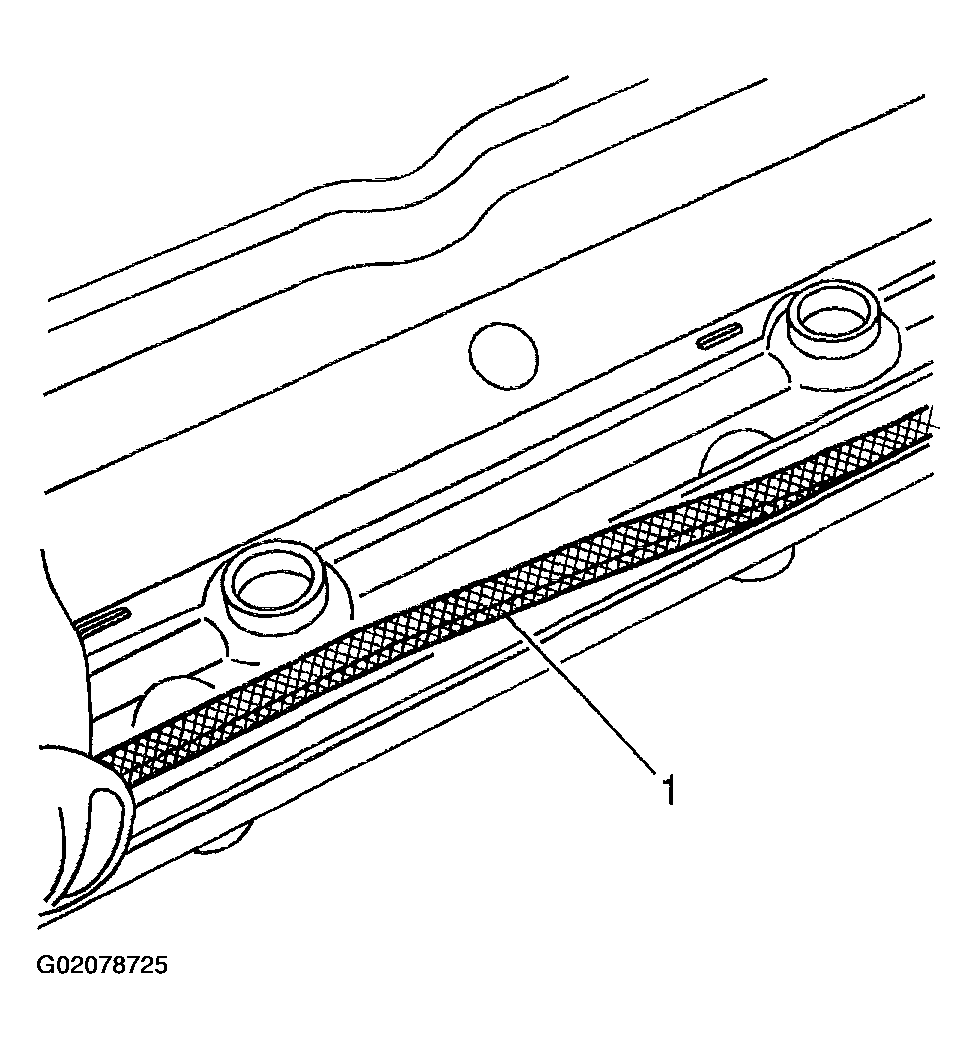

Fig 3: Removing Gasket From Cover
Courtesy of GENERAL MOTORS CORP.
Remove the oil fill cap from the oil fill tube.
Remove the oil fill tube, if required.

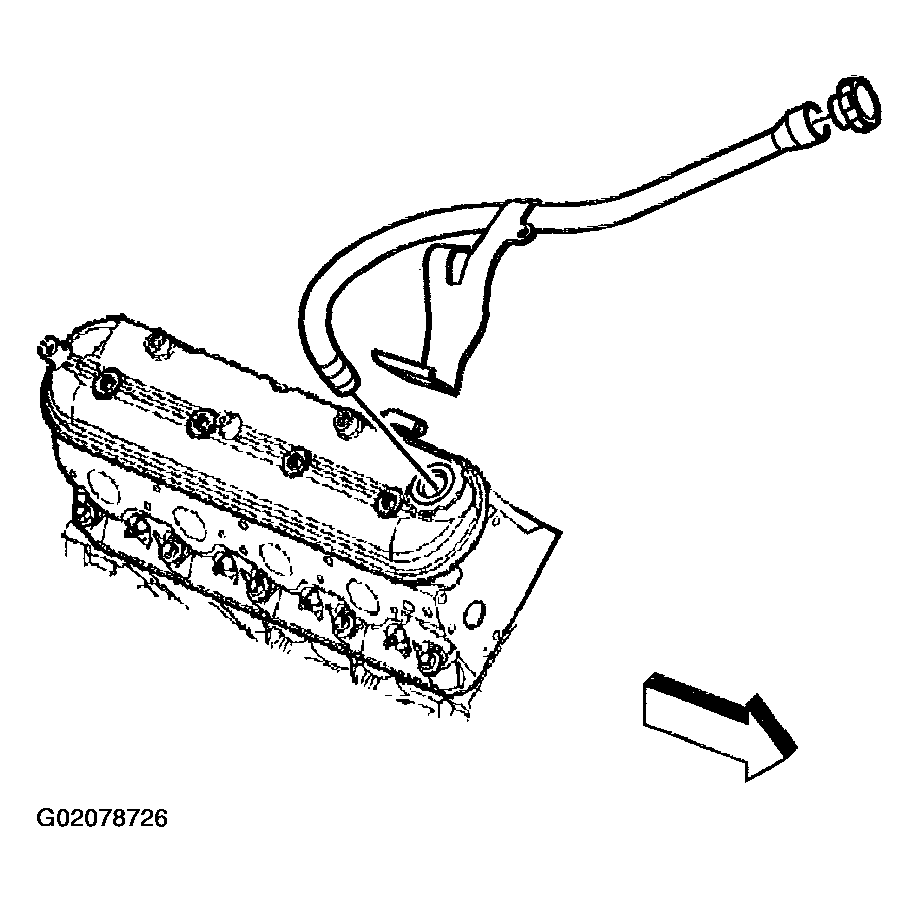

Fig 4: Removing Oil Fill Cap & Oil Fill Tube
Courtesy of GENERAL MOTORS CORP.
