Valve Rocker Arm Cover Installation - Right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important:
- All gasket surfaces should be free of oil or other foreign material during assembly.
- Do not use the valve rocker arm cover gasket again.
- Do not remove the ignition coils and bracket from the valve rocker arm cover unless required.
- The valve rocker arm cover bolt grommets may be used again.

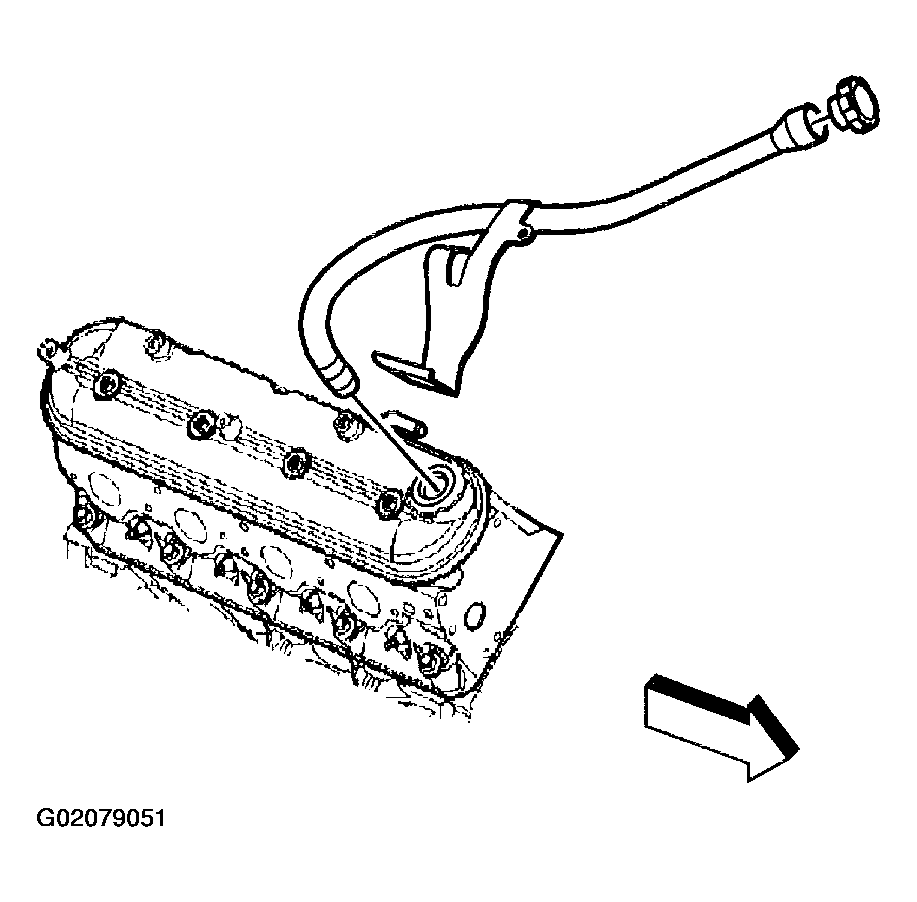

- Insert the oil fill tube into the rocker arm cover.
- Install the oil fill cap into the tube and rotate clockwise until locked in the proper position.

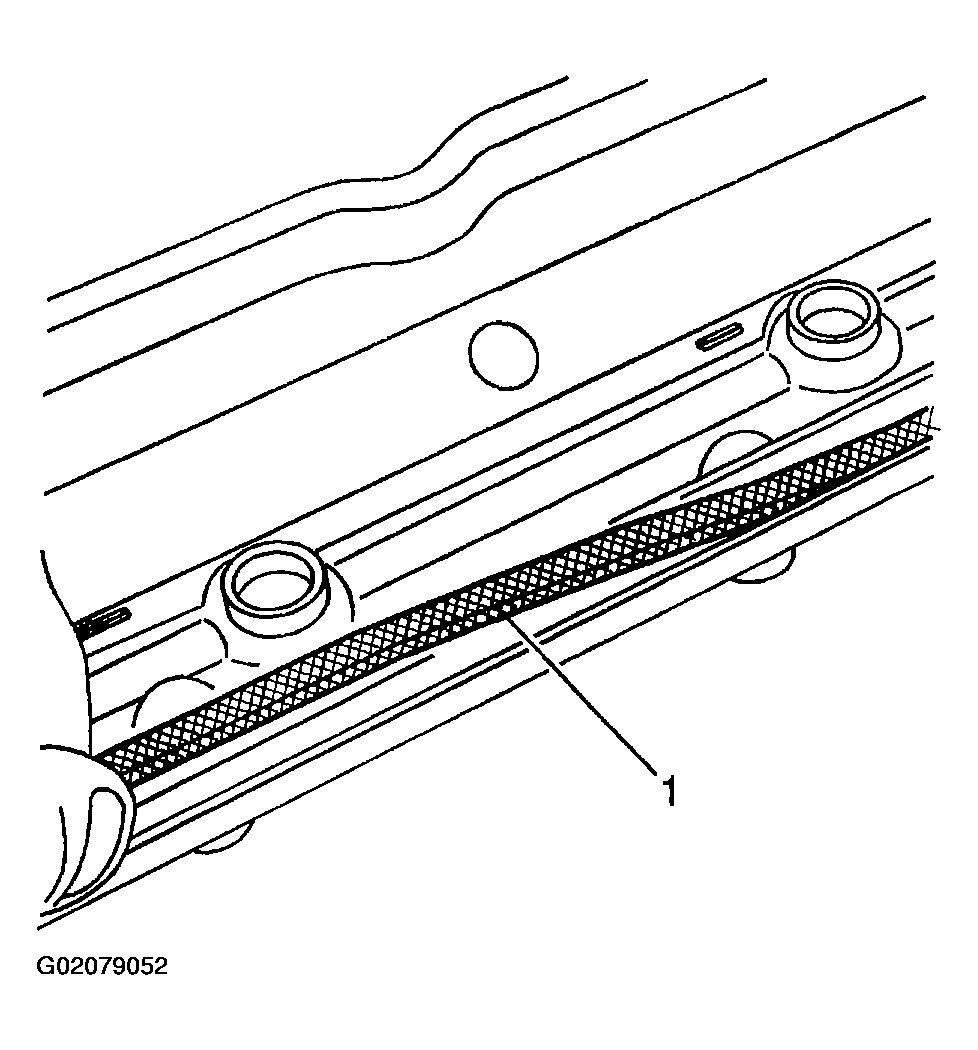

- Install a NEW cover gasket (1) into the valve rocker arm cover.

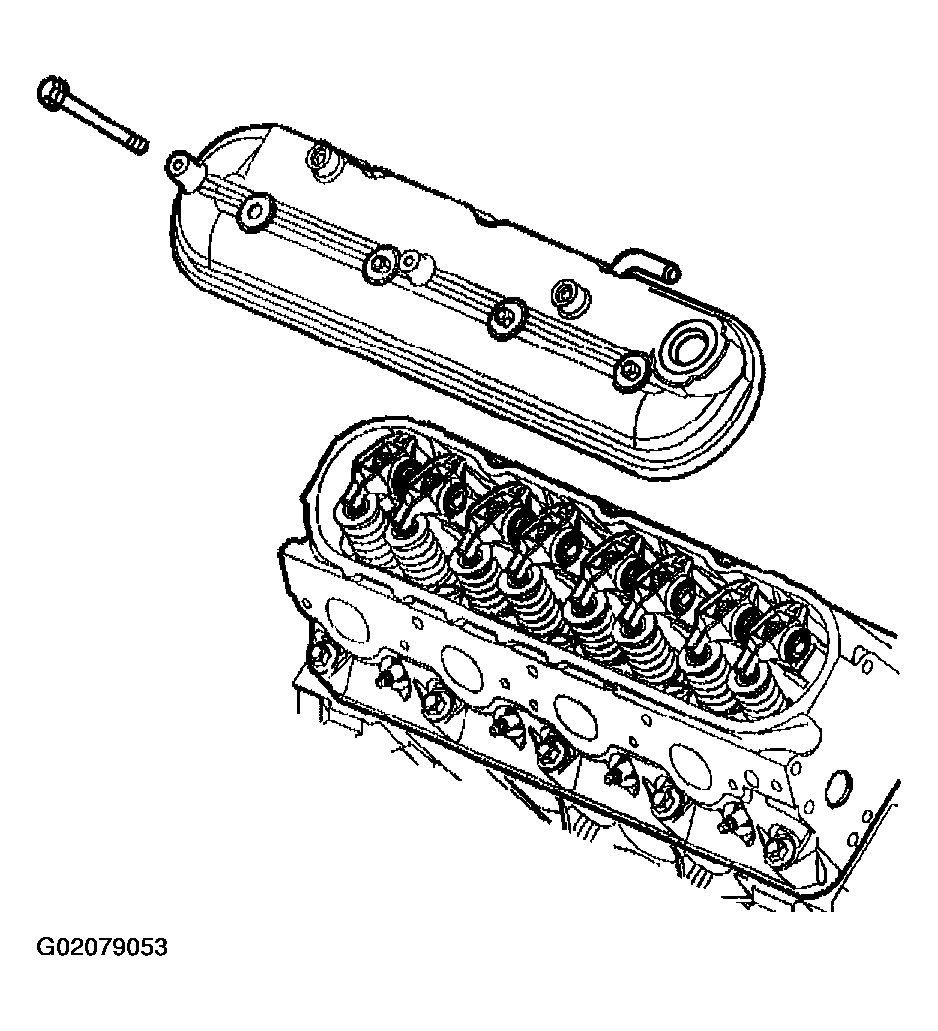

- Install the valve rocker arm cover onto the cylinder head.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the cover bolts with grommets.
Tighten
Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).
- Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the bracket bolts.

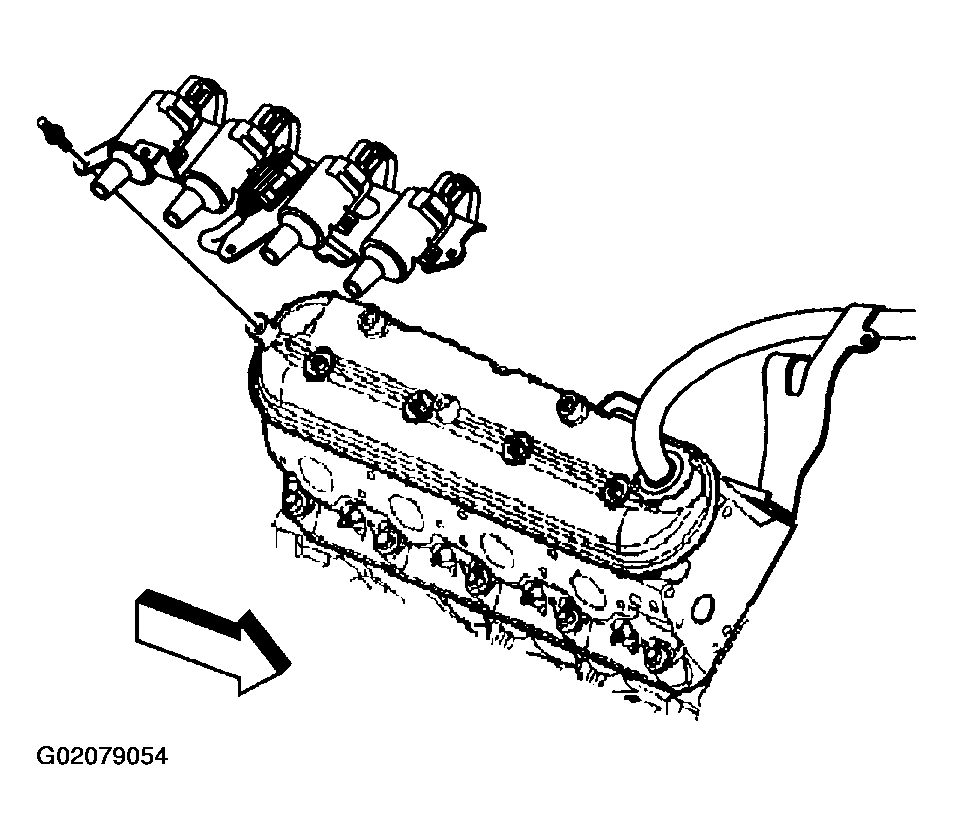

- Install the ignition coil and bracket assembly and bolts.
Tighten
Tighten the ignition coil and bracket assembly studs to 12 N.m (106 lb in).
