Valve Lifters and Guides Cleaning and Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: Components that are to be used again must be marked, sorted or organized for assembly.

Mark, sort, or organize the components for assembly. Refer to Separating Parts .
Clean the components in cleaning solvent.
WARNING: Wear safety glasses in order to avoid eye damage.
Dry the components with compressed air.
Inspect the valve lifters for the following:
- Bent or broken clip (1)
- Worn pushrod socket (2)
- Scuffed or worn sides (3)
  If the valve lifter shows wear, inspect the engine block lifter bores for wear or damage.
- Flat spots on the roller (4)
- Loose or damaged pin (5)
- Plugged oil hole (6)
- Worn or damaged roller bearing
  The roller should rotate freely with no binding or roughness.

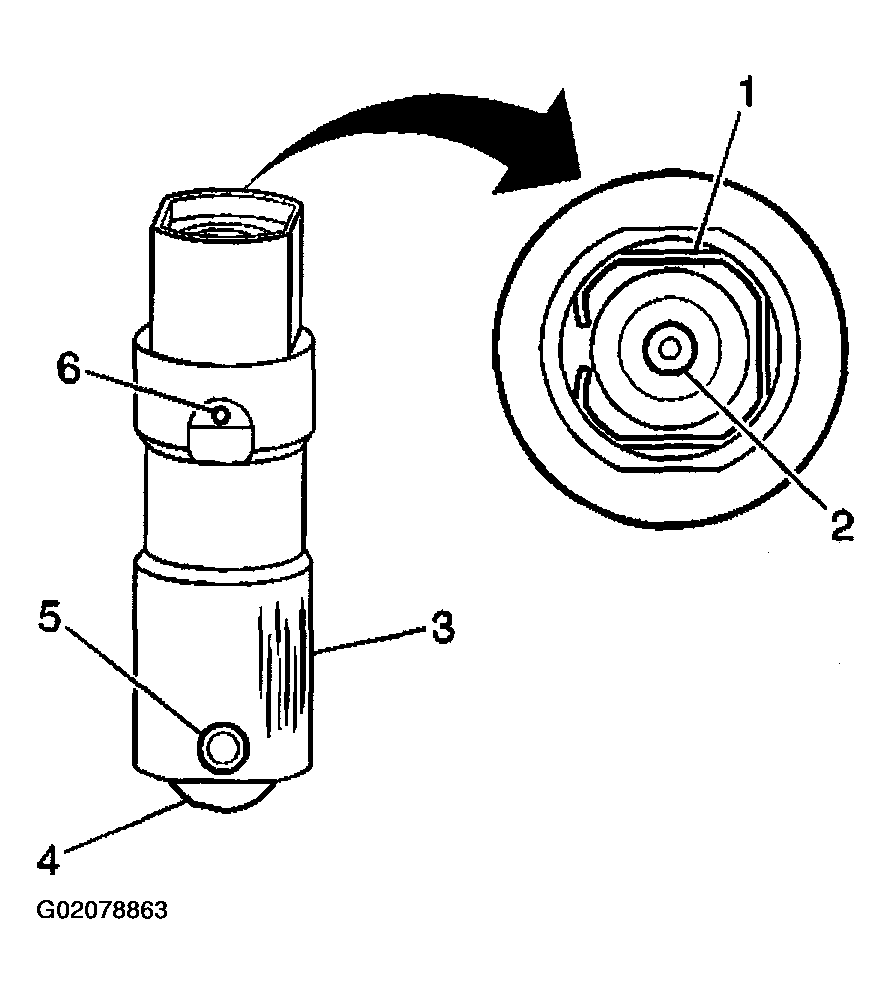

Fig 1: Inspecting Valve Lifters
Courtesy of GENERAL MOTORS CORP.
Inspect the valve lifter guides for the following:
- For cracks or damage
- Excessive wear in the lifter mounting bores

  Fig 2: Inspecting Valve Lifter Guides
  Courtesy of GENERAL MOTORS CORP.
